Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRONT FORK

STEERING COLUMN FOR SUZUKI DR 125 2010

FRONT WHEEL

Item numbers

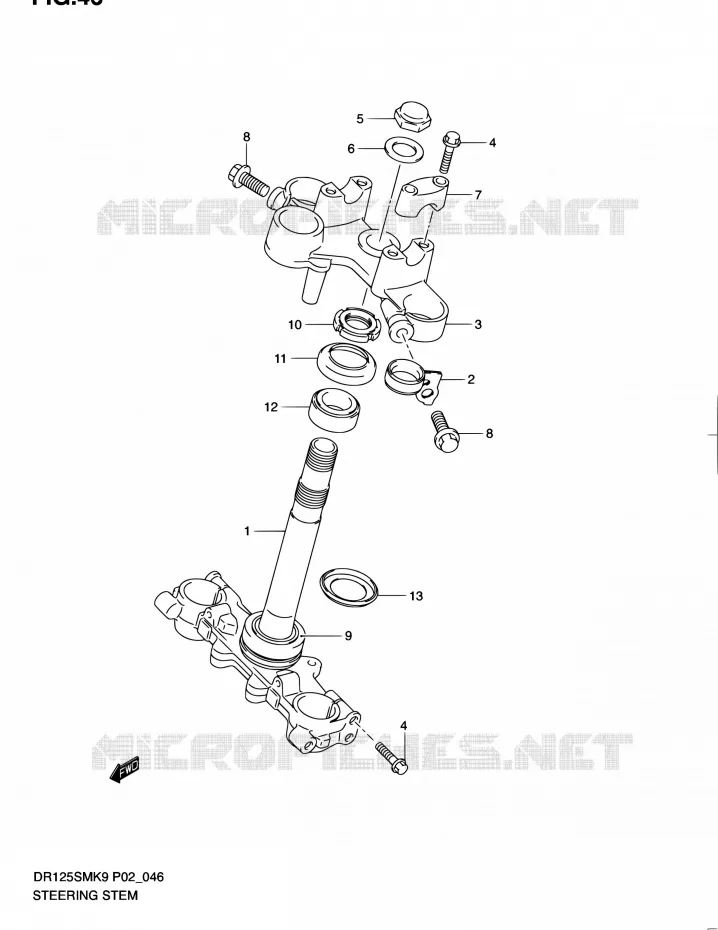

STEERING COLUMN Suzuki MOTO 125 DR 2010 DR125SML0(E02)
1
2
3
4
4
5
6
7
8
8
9
10
11
12
13
1
BRACKET, UNDER

51410-24H00-000   5141024H00000

5141024H00000
Not available
2
STAY, BRAKE HOSE

51288-24H00-000   5128824H00000

5128824H00000
Not available
3
BRACKET, UPPER

51311-24H00-000   5131124H00000

5131124H00000
Not available
4
BOLT

51328-03H00-000   5132803H00000

5132803H00000
Not available
5
NUT

51353-24H00-000   5135324H00000

5135324H00000
Not available
6
WASHER

51356-24H00-000   5135624H00000

5135624H00000
Not available
7
HOLDER, HANDLE

56211-24H00-000   5621124H00000

5621124H00000
Not available
8
BOLT

01550-1030A-000   015501030A000

015501030A000

Unit Price

9
BEARING,STEERING LOW<br />BEARING, STEERING LOWER
BEARING, STEERING LOW
BEARING, STEERING LOWER

09265-30020-000   0926530020000

0926530020000

Unit Price

10
NUT,STEERING STEM(25X44X10)<br />NUT, STEERING STEM
NUT, STEERING STEM(25X44X10)
NUT, STEERING STEM

51631-28000-000   5163128000000

5163128000000

Unit Price

11
SEAL,STEERING UPR DUST<br />SEAL, STEERING UPPER DU
SEAL, STEERING UPR DUST
SEAL, STEERING UPPER DU

51643-49002-000   5164349002000

5164349002000

Unit Price

12
BEARING<br />BEARING, STEERING UPPER
BEARING
BEARING, STEERING UPPER

09265-25038-000   0926525038000

0926525038000

Unit Price

13
SEAL,STEERING LWR<br />DUST SEAL
SEAL, STEERING LWR
DUST SEAL

51644-12C00-000   5164412C00000

5164412C00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STEERING COLUMN of your Suzuki DR 125 SM of DR. Let us know if you have any questions.

Genuine parts for Suzuki 125 DR 2010

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 125 DR 2010

Select your Suzuki 2010 model

125 DR 2010 DR125SML0(E02)

DR 125 SM

Suzuki DR

Displacement: 125 cc
Year: 2010
Model code DR125SML0(E02)
