TRANSMISSION

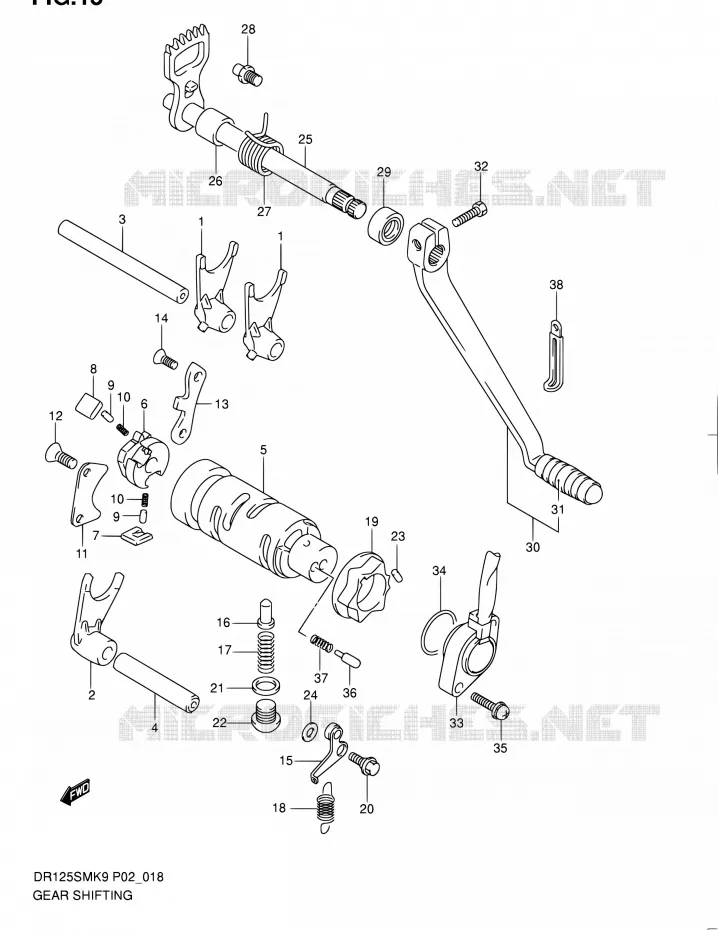

GEAR SHIFTING ASSY FOR SUZUKI DR 125 2010

STAND

Item numbers

FORK, GEAR SHIFT NO.2
FORK, GEAR SHIFTING NO.1

25221-08300-000 2522108300000

$88,97

Unit Price

FORK, GEAR SHIFT NO.3
FORK, GEAR SHIFTING NO.3

25231-05201-000 2523105201000

$88,97

Unit Price

SHAFT, FORK NO.1

25411-26H00-000 2541126H00000

Not available

SHAFT, FORK NO.2

25421-26H00-000 2542126H00000

Not available

CAM, GEAR SHIFT

25310-05340-000 2531005340000

Not available

GEAR, GEAR SHIFT CAM DRIVEN
GEAR, CAM DRIVEN

25322-31310-000 2532231310000

$27,97

Unit Price

PAWL, GEAR SHIFT NO.1

25323-34201-000 2532334201000

$11,97

Unit Price

PAWL, GEAR SHIFT NO.2

25324-34201-000 2532434201000

$11,97

Unit Price

PIN, GEAR SHIFT PAWL

09261-05013-000 0926105013000

Not available

SPRING, PAWL RETURN

25333-24H00-000 2533324H00000

Not available

LIFTER, GEAR SHIFT POLE
LIFTER, GEAR SHIFT PAWL

25331-30001-000 2533130001000

$5,97

Unit Price

SCREW

02122-0612A-000

02122-0612B-000

$2,97

Unit Price

GUIDE, GEAR SHIFT CAM

25341-05200-000 2534105200000

$11,97

Unit Price

SCREW

02122-0612A-000

02122-0612B-000

$2,97

Unit Price

STOPPER, GEAR SHIFT CAM

25350-24H00-000 2535024H00000

Not available

STOPPER, GEAR SHIFT CAM

25351-30020-000 2535130020000

Not available

SPRING, GEAR SHIFT CAM

09440-11029-000 0944011029000

Not available

SPRING, GR SHF CAM

25355-24H00-000 2535524H00000

Not available

PLATE, GEAR SHIFT CAM STOPPER
PLATE, GR SHF CAM

25381-04700-000 2538104700000

$17,97

Unit Price

BOLT
BOLT, CAM STOPPER (6X14.6)

09111-06054-000 0911106054000

$4,97

Unit Price

GASKET, 13.8X18.8X0.4
WASHER, CAM STOPPER (13.8X18.8

09168-14002-000 0916814002000

$2,97

Unit Price

PLUG(14X12)
PLUG, CAM

09248-14013-000 0924814013000

$5,97

Unit Price

PIN (4X6)
PIN, GR SHIFT CAM

04221-04069-000 0422104069000

$2,97

Unit Price

THRUST WASHER
WASHER, GR SHIFT

08211-06141-000 0821106141000

$3,97

Unit Price

SHAFT, GEAR SHIFTING

25510-25H00-000 2551025H00000

Not available

SPACER (12X20X15.3)

09180-12160-000 0918012160000

Not available

SHAFT RETURN SPRING
SPRING

09444-26013-000 0944426013000

$5,97

Unit Price

STOPPER, GEAR SHIFT ARM

25671-01020-000 2567101020000

Not available

09285-12006
OIL SEAL (12X22X9)

09285-12002-000

Not available

LEVER ASSY, GEAR SHIFT

25600-24H00-000 2560024H00000

Not available

RUBBER, GEAR SHIFT PEDAL

25652-16500-000

25652-16510-000

$7,97

Unit Price

DISCONTINUE
BOLT, GEAR SHIFT

D1507-0620A-000 D15070620A000

Not available

BASE ASSY, NEUT SW TERM

37720-24H01-000 3772024H01000

Not available

O RING
O RING (D:2.4, ID:26.2)

09280-26005-000 0928026005000

Not available

SCREW

02112-7520A-000 021127520A000

$3,97

Unit Price

K S PAWL ROLLER
CONTACT

09209-05011-000 0920905011000

$3,97

Unit Price

SPRING

09440-04024-000 0944004024000

Not available

CLAMP(L:65)

09404-06431-000

09404-06207-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the GEAR SHIFTING ASSY of your Suzuki DR 125 SM of DR. Let us know if you have any questions.
