FAIRING (MODEL Y) REFER TO FIG.34A(E-10) FOR MODEL K1/K2/K3/K4

FAIRING (MODEL K1 / K2 / K3 / K4) FOR SUZUKI INTRUDER 125 2003

FRONT FENDER

Item numbers

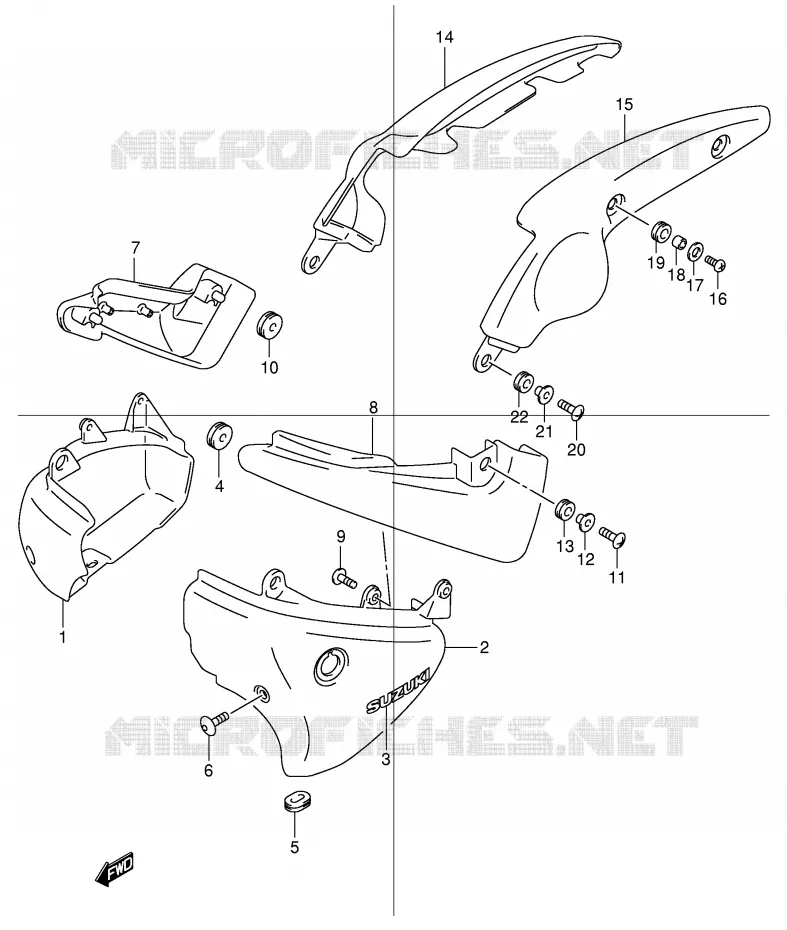

FAIRING (MODEL K1/K2/K3/K4) Suzuki MOTO 125 INTRUDER 2003 VL125LK3(E2)
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
COVER, FRAME RH (BLUE)

47111-26F00-1LF   4711126F001LF

4711126F001LF
Not available
1
COVER, FRAME RH (BLACK)

47111-26F00-33J   4711126F0033J

4711126F0033J
Not available
1
COVER, FRAME RH (BLUE)

47111-26F00-Y7H   4711126F00Y7H

4711126F00Y7H
Not available
1
COVER, FRAME RH (BLACK)

47111-26F00-YAY   4711126F00YAY

4711126F00YAY
Not available
1
COVER, FRAME RH (GOLD)

47111-26F00-YC7   4711126F00YC7

4711126F00YC7
Not available
1
COVER, FRAME RH (SILVER)

47111-26F00-YD8   4711126F00YD8

4711126F00YD8
Not available
1
COVER, FRAME RH (SILVER)

47111-26F00-YV2   4711126F00YV2

4711126F00YV2
Not available
1
COVER, FRAME RH (GREEN)

47111-26F00-YV4   4711126F00YV4

4711126F00YV4
Not available
2
COVER, FRAME LH (BLUE)

47211-26F00-1LF   4721126F001LF

4721126F001LF
Not available
2
COVER, FRAME LH (BLACK)

47211-26F00-33J   4721126F0033J

4721126F0033J
Not available
2
COVER, FRAME LH (BLUE)

47211-26F00-Y7H   4721126F00Y7H

4721126F00Y7H
Not available
2
COVER, FRAME LH (BLACK)

47211-26F00-YAY   4721126F00YAY

4721126F00YAY
Not available
2
COVER, FRAME LH (GOLD)

47211-26F00-YC7   4721126F00YC7

4721126F00YC7
Not available
2
COVER, FRAME LH (SILVER)

47211-26F00-YD8   4721126F00YD8

4721126F00YD8
Not available
2
COVER, FRAME LH (SILVER)

47211-26F00-YV2   4721126F00YV2

4721126F00YV2
Not available
2
COVER, FRAME LH (GREEN)

47211-26F00-YV4   4721126F00YV4

4721126F00YV4
Not available
3
EMBLEM, "SUZUKI"

68165-14F00-ACU   6816514F00ACU

6816514F00ACU
Not available
3
EMBLEM, "SUZUKI"

68165-14F00-ACV   6816514F00ACV

6816514F00ACV
Not available
3
EMBLEM, "SUZUKI"

68165-14F00-CD4   6816514F00CD4

6816514F00CD4
Not available
3
DISCONTINUE
EMBLEM, "SUZUKI"

68165-14F00-CD5   6816514F00CD5

6816514F00CD5
Not available
3
DISCONTINUE
EMBLEM, "SUZUKI"

68165-14F00-F3H   6816514F00F3H

6816514F00F3H
Not available
3
EMBLEM, "SUZUKI"

68165-14F00-HR7   6816514F00HR7

6816514F00HR7
Not available
3
EMBLEM, "SUZUKI"

68165-14F00-HR8   6816514F00HR8

6816514F00HR8
Not available
3
EMBLEM, "SUZUKI"

68165-14F00-LD4   6816514F00LD4

6816514F00LD4
Not available
3
EMBLEM, "SUZUKI"

68165-14F00-M5P   6816514F00M5P

6816514F00M5P
Not available
4
CUSHION(8X26X7)
CUSHION(8X26X7)

09320-08018-000  

09320-08513-000
 0932008018000

Unit Price

5
CUSHION
CUSHION, LOWER

09320-03004-000   0932003004000

0932003004000

Unit Price

6
SCREW
SCREW

09139-05054-000   0913905054000

0913905054000

Unit Price

7
COVER, FRAME UPPER RH

47351-26F00-000   4735126F00000

4735126F00000
Not available
8
COVER, FRAME UPPER LH

47361-26F00-000   4736126F00000

4736126F00000
Not available
9
SCREW

03541-05123-000  

03541-0512B-000
 0354105123000

Unit Price

10
CUSHION(8X26X7)
CUSHION(8X26X7)

09320-08018-000  

09320-08513-000
 0932008018000

Unit Price

11
SCREW

02142-06163-000  

02142-0616A-000
 0214206163000

Unit Price

12
WASHER, LH

09169-06072-000   0916906072000

0916906072000
Not available
13
CUSHION, MUF COV

09320-08051-000  

09320-08066-000
 0932008051000

Unit Price

14
COVER, FRAME REAR RH

47121-26F00-000   4712126F00000

4712126F00000
Not available
15
COVER, FRAME REAR LH

47221-26F00-000   4722126F00000

4722126F00000
Not available
16
BOLT<br />BOLT, REAR
BOLT
BOLT, REAR

09106-08140-000   0910608140000

0910608140000

Unit Price

17
WASHER
WASHER

09160-08054-000   0916008054000

0916008054000

Unit Price

18
SPACER, 8.5X12X7
SPACER

09180-08187-000   0918008187000

0918008187000

Unit Price

19
CUSHION, REAR

47161-26F00-000   4716126F00000

4716126F00000
Not available
20
SCREW

02142-06163-000  

02142-0616A-000
 0214206163000

Unit Price

21
WASHER

09169-06072-000   0916906072000

0916906072000
Not available
22
CUSHION, MUF COV

09320-08051-000  

09320-08066-000
 0932008051000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
