CRANKCASE FOR SUZUKI INTRUDER 125 2003

CRANKCASE COVER

Item numbers

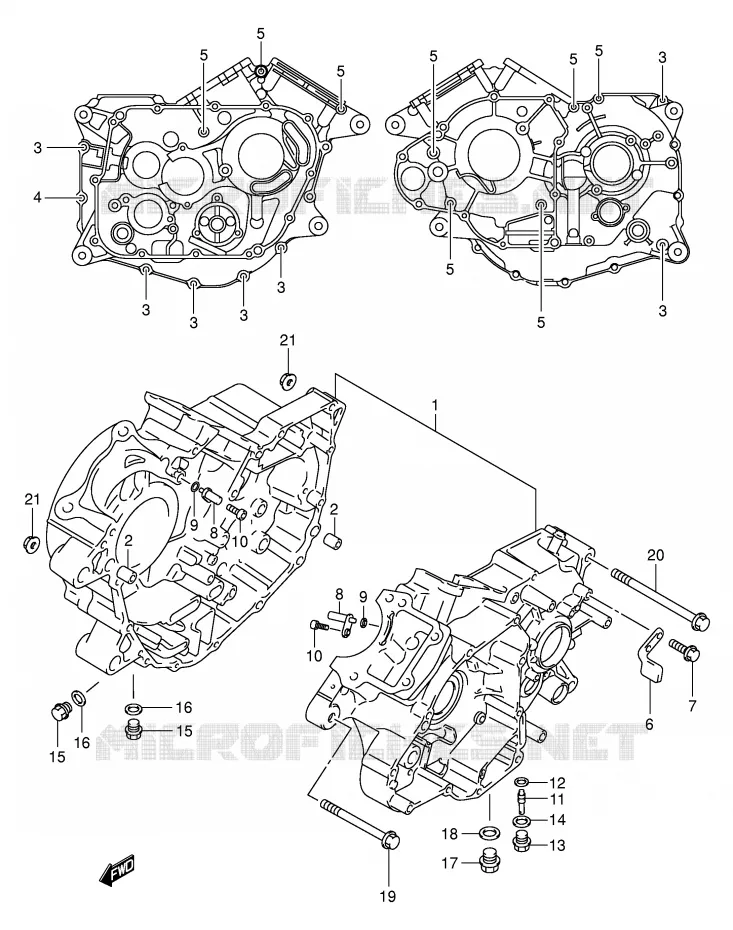

CRANKCASE Suzuki MOTO 125 INTRUDER 2003 VL125LK3(E2)
1
1
1
2
2
3
3
3
3
3
3
3
4
5
5
5
5
5
5
5
5
6
7
8
8
9
9
10
10
11
12
13
14
15
15
16
16
17
18
19
20
21
21
21
21
1
CRANKCASE ASSY

11300-26F00-000   1130026F00000

1130026F00000
Not available
1
CRANKCASE ASSY

11300-26F01-000   1130026F01000

1130026F01000
Not available
1
CRANKCASE ASSY

11300-26F02-000   1130026F02000

1130026F02000
Not available
2
PIN, CRANKCASE
PIN

09206-11007-000   0920611007000

0920611007000

Unit Price

3
BOLT

01547-06353-000  

01547-0635B-000
 0154706353000

Unit Price

4
BOLT,6X35<br />BOLT
BOLT, 6X35
BOLT

01547-06357-000   0154706357000

0154706357000

Unit Price

5
BOLT

01547-06653-000  

01547-0665B-000
 0154706653000

Unit Price

6
LIMITER, ENGINE SPROCKET

11365-12F00-000   1136512F00000

1136512F00000
Not available
7
SCREW(6X18)<br />SCREW, LIMITER
SCREW(6X18)
SCREW, LIMITER

09139-06026-000   0913906026000

0913906026000

Unit Price

8
JET, PISTON COOLING

11390-26F00-000   1139026F00000

1139026F00000
Not available
9
O RING<br />O RING, JET (D:1.2,ID:4.0)
O RING
O RING, JET (D:1.2, ID:4.0)

09280-04004-000   0928004004000

0928004004000

Unit Price

10
BOLT(6X12)

07130-06123-000  

09106-06075-000
 0713006123000

Unit Price

11
JET,OIL GALLERY<br />JET, T/M OIL GALLERY
JET, OIL GALLERY
JET, T/M OIL GALLERY

09493-20014-000   0949320014000

0949320014000

Unit Price

12
O RING<br />O RING, T/M OIL GALL JET
O RING
O RING, T/M OIL GALL JET

09280-04004-000   0928004004000

0928004004000

Unit Price

13
BOLT

01550-08123-000  

01550-0812B-000
 0155008123000

Unit Price

14
GASKET(8.2X14X1.6)<br />GASKET
GASKET(8.2X14X1.6)
GASKET

09168-08015-000   0916808015000

0916808015000

Unit Price

15
PLUG
PLUG, OIL GALLERY

09247-12006-000   0924712006000

0924712006000

Unit Price

16
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-12002-000   0916812002000

0916812002000
Not available
17
PLUG<br />PLUG, OIL DRAIN
PLUG
PLUG, OIL DRAIN

09247-14026-000   0924714026000

0924714026000

Unit Price

18
GASKET,13.8X18.8X0.4<br />GASKET
GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price

19
ENGINE MOUNT BOLT
BOLT (8X67)

09103-08037-000   0910308037000

0910308037000

Unit Price

20
BOLT
BOLT (8X102)

09103-08296-000   0910308296000

0910308296000

Unit Price

21
NUT
NUT

08319-31087-000   0831931087000

0831931087000
Not available
21
NUT

08319-31088-000   0831931088000

0831931088000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
