INDICATORS

TAIL LIGHT FOR SUZUKI INTRUDER 125 2003

WIRING HARNESS

Item numbers

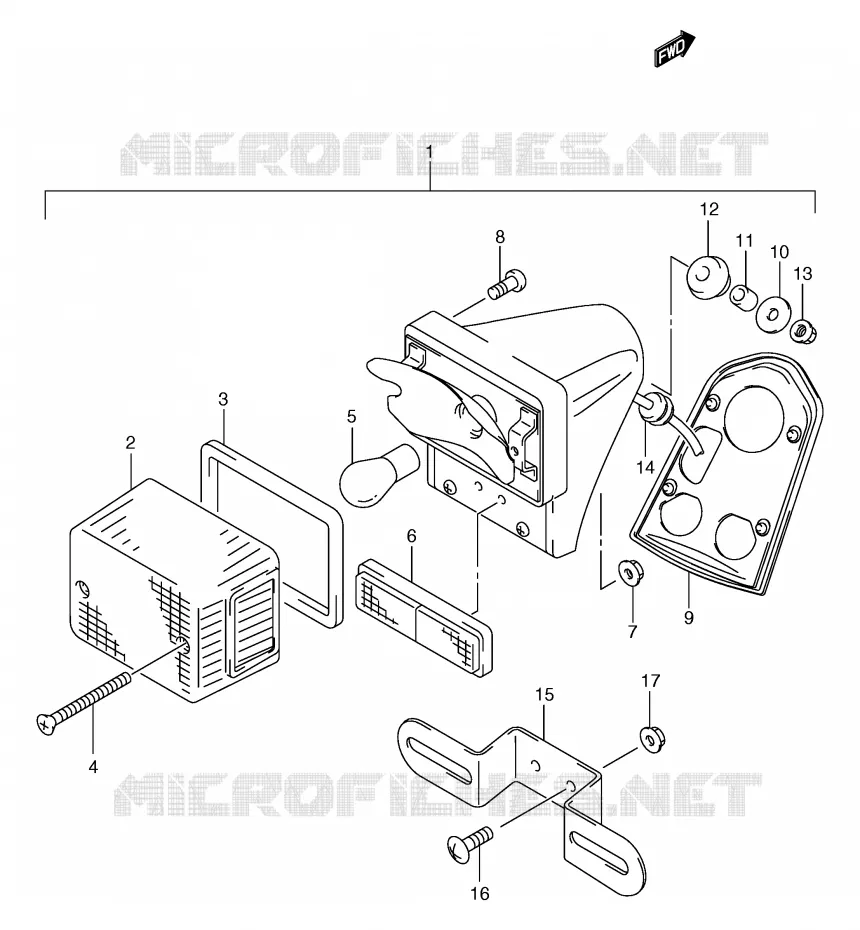

TAIL LIGHT Suzuki MOTO 125 INTRUDER 2003 VL125LK3(E2)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
LAMP ASSY, REAR COMBINATION

35710-27F00-000   3571027F00000

3571027F00000
Not available
2
LENS

35712-27F00-000   3571227F00000

3571227F00000
Not available
3
GASKET, LENS

35713-14D30-000   3571314D30000

3571314D30000

Unit Price

4
SCREW
SCREW (4X45)

09125-04501-000   0912504501000

0912504501000

Unit Price

5
BULB(12V1.4W G30)<br />BULB (12V,21/5W)
BULB(12V1.4W G30)
BULB (12V, 21/5W)

09471-12083-000   0947112083000

0947112083000

Unit Price

6
REFLECTOR ASSY,RR<br />REFLECTOR
REFLECTOR ASSY, RR
REFLECTOR

35970-24D60-000   3597024D60000

3597024D60000

Unit Price

7
NUT

08316-10053-000  

08316-1005B-000
 0831610053000

Unit Price

8
SCREW<br />SCREW (6X20)
SCREW
SCREW (6X20)

02112-06207-000   0211206207000

0211206207000

Unit Price

9
CUSHION

35717-27F00-000   3571727F00000

3571727F00000
Not available
10
WASHER (6.5X20X1.6)
WASHER (6.5X20X1.6)

09160-06088-000   0916006088000

0916006088000

Unit Price

11
SPACER (6.5X10X12)
SPACER (6.5X10X12)

09180-06290-000   0918006290000

0918006290000

Unit Price

12
CUSHION
CUSHION

09320-09010-000   0932009010000

0932009010000

Unit Price

13
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

14
GROMMET

09308-08007-000   0930808007000

0930808007000

Unit Price

15
BRACKET, LICENSE PLATE

35927-27F00-000   3592727F00000

3592727F00000
Not available
16
SCREW

02142-06203-000  

02142-0620B-000
 0214206203000

Unit Price

17
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
