Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

RADIATOR (MODEL M)

CLUTCH FOR SUZUKI RM 125 1990

TRANSMISSION

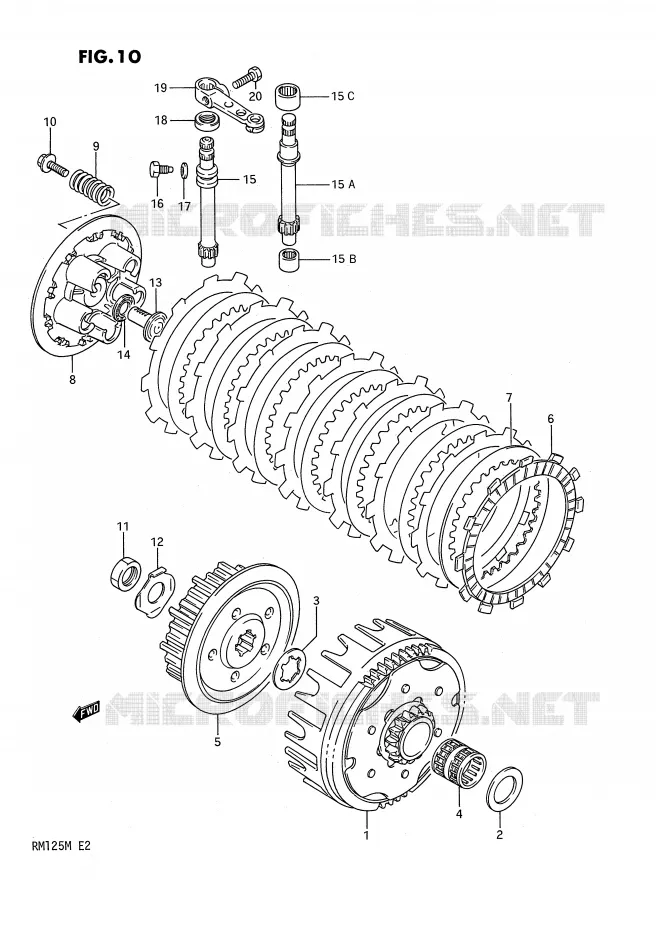

CLUTCH Suzuki MOTO 125 RM 1990 RM125L(E2)
1
DISCONTINUE
GEAR ASSY, PRIMARY DRIVEN

21200-01B40-000   2120001B40000

2120001B40000
Not available
2
WASHER

08211-20321-000  

09181-20223-000
 0821120321000

Unit Price

3
WASHER

09167-20024-000   0916720024000

0916720024000

Unit Price

4
R3 BEARING 20X25X26
BEARING (20X25X26)

09263-20023-000   0926320023000

0926320023000

Unit Price

5
DISCONTINUE

21410-01B40-000  

2141001B40000
Not available
6
PLATE, CLUTCH DRIVE

21441-01B00-000  

21441-22A01-000
 2144101B00000

Unit Price

7
PLATE, DRIVEN (T:1.4)

21451-01B40-000   2145101B40000

2145101B40000

Unit Price

8
DISCONTINUE
DISC, PRESSURE

21462-01B40-000   2146201B40000

2146201B40000
Not available
9
SPRING

09440-16009-000   0944016009000

0944016009000

Unit Price

10
BOLT, 5X16

09116-05003-000  

09116-05020-000
 0911605003000

Unit Price

11
NUT 16MM
NUT

09140-16027-000   0914016027000

0914016027000

Unit Price

12
WASHER, 16X 35X1
LOCK WASHER

09169-16006-000   0916916006000

0916916006000
Not available
13
RACK, CLUTCH RELEASE

23165-00B00-000  

23165-44B01-000
 2316500B00000

Unit Price

14
RD SFT ARM PIN BRG
THRUST BEARING

09263-10002-000   0926310002000

0926310002000

Unit Price

15
PINION, CLUTCH RELEASE

23261-20A00-000  

23261-20A01-000
 2326120A00000

Unit Price

15A
PINION, CLUTCH RELEASE
PINION

23261-27C10-000   2326127C10000

2326127C10000

Unit Price

15B
BEARING
BEARING (9X13X10)

09263-09001-000   0926309001000

0926309001000

Unit Price

15C
BEARING
BEARING (12X16X10)

09263-12024-000   0926312024000

0926312024000

Unit Price

16
BOLT, 6X10

09135-06002-000  

09135-06501-000
 0913506002000

Unit Price

17
TACH GEAR WASHER<br />WASHER (6.2X11X1.2)
TACH GEAR WASHER
WASHER (6.2X11X1.2)

09168-06004-000   0916806004000

0916806004000

Unit Price

18
OIL SEAL<br />OIL SEAL (10X17X5)
OIL SEAL
OIL SEAL (10X17X5)

09285-10004-000   0928510004000

0928510004000

Unit Price

19
ARM, CLUTCH RELEASE

23271-20900-000  

23271-20902-000
 2327120900000

Unit Price

20
BOLT

01107-06167-000  

01500-06167-000
 0110706167000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 125 RM 1990
