Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKCASE (MODEL K) REFER TO FIG.3A(B-8) FOR MODEL L/M

CRANKCASE (MODEL L / M) FOR SUZUKI RM 125 1990

CRANKCASE COVER- WATER PUMP (MODEL K) REFER TO FIG.4A(B-10) FOR MODEL L/M

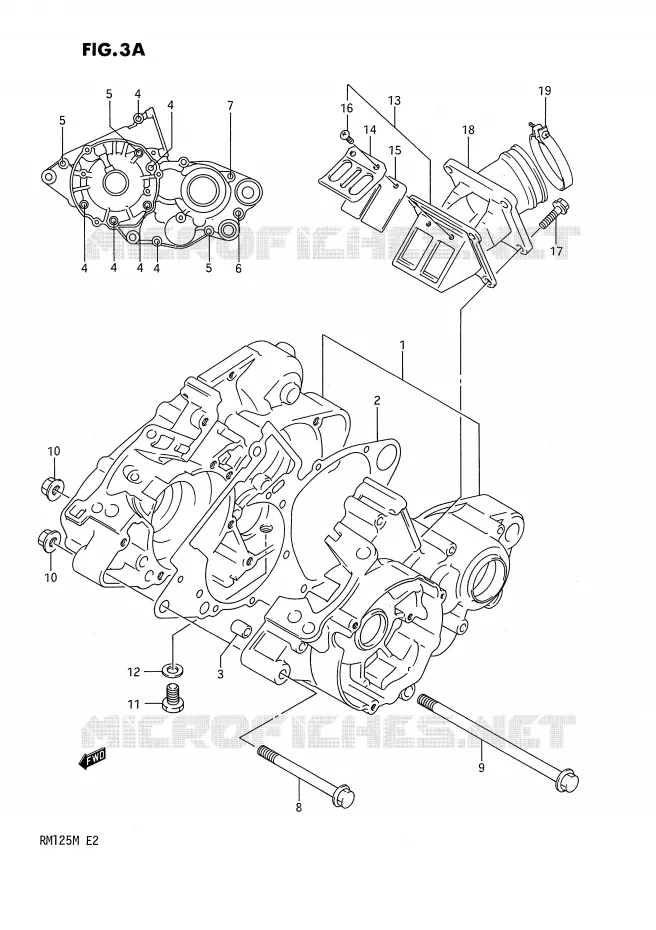

CRANKCASE (MODEL L/M) Suzuki MOTO 125 RM 1990 RM125L(E2)
1
DISCONTINUE

11300-27880-000  

1130027880000
Not available
2
DISCONTINUE
GASKET, CRANKCASE

11481-27C01-000   1148127C01000

1148127C01000
Not available
3
9 X 12 DOWEL PIN<br />PIN
9 X 12 DOWEL PIN
PIN

04211-09129-000   0421109129000

0421109129000

Unit Price

4
BOLT,6X45<br />BOLT
BOLT, 6X45
BOLT

01547-06457-000   0154706457000

0154706457000

Unit Price

5
BOLT,6X55<br />BOLT
BOLT, 6X55
BOLT

01547-06557-000   0154706557000

0154706557000

Unit Price

6
BOLT

01547-06607-000   0154706607000

0154706607000

Unit Price

7
BOLT

01547-06657-000  

01547-0665B-000
 0154706657000

Unit Price

8
BOLT (8X88)

09103-08010-000   0910308010000

0910308010000

Unit Price

9
DISCONTINUE

09103-08271-000  

0910308271000
Not available
10
NUT

09159-08067-000   0915908067000

0915908067000

Unit Price

11
BOLT

01107-08167-000  

01500-0816B-000
 0110708167000

Unit Price

12
GASKET, 8.2X14X1

09168-08008-000  

09168-08016-000
 0916808008000

Unit Price

13
13150-36E00
VALVE ASSY, REED

13150-27C10-000  

1315027C10000
Not available
14
13152-43D00
.STOPPER, REED VALVE

13152-27C10-000  

1315227C10000
Not available
15
13153-43D00
.VALVE, REED

13153-27C10-000  

1315327C10000
Not available
16
SCREW

02112-33088-000   0211233088000

0211233088000
Not available
17
BOLT
BOLT

01547-06207-000   0154706207000

0154706207000

Unit Price

18
DISCONTINUE
PIPE, INTAKE

13110-27C10-000   1311027C10000

1311027C10000
Not available
19
INLET PIPE CLAM<br />CLAMP
INLET PIPE CLAM
CLAMP

09402-50306-000   0940250306000

0940250306000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
