Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKCASE COVER- WATER PUMP (MODEL L / M)

CRANKSHAFT(MODEL K) FOR SUZUKI RM 125 1990

CRANKSHAFT (MODEL L) REFER TO FIG.5B (B-14) FOR MODEL M

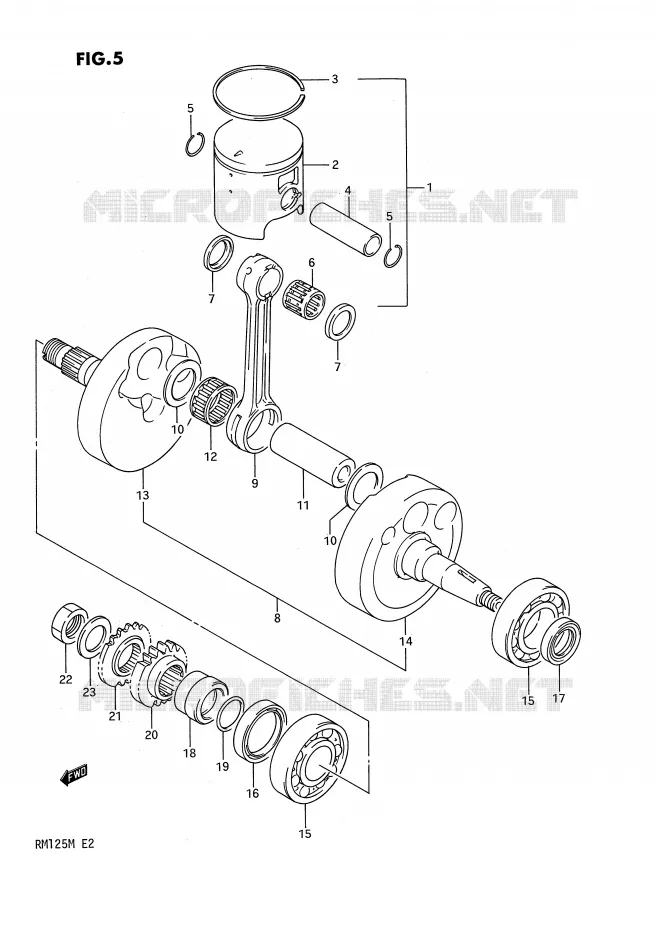

CRANKSHAFT(MODEL K) Suzuki MOTO 125 RM 1990 RM125L(E2)
1
12100-27834
PISTON KIT (STD)

12100-27833-000  

1210027833000
Not available
1
DISCONTINUE

12100-27833-025  

1210027833025
Not available
1
DISCONTINUE

12100-27833-050  

1210027833050
Not available
2
.PISTON (OS:0.25)

12110-27C01-025   1211027C01025

1211027C01025
Not available
2
DISCONTINUE

12110-27C01-050  

1211027C01050
Not available
2
DISCONTINUE

12110-27C01-0F0  

1211027C010F0
Not available
3
.RING, PISTON

12141-01B10-000   1214101B10000

1214101B10000
Not available
3
.RING, PISTON (OS:0.25)

12141-01B10-025   1214101B10025

1214101B10025
Not available
3
.RING, PISTON (OS:0.5)

12141-01B10-050   1214101B10050

1214101B10050
Not available
4
PIN, PISTON

12151-01B41-000   1215101B41000

1215101B41000

Unit Price

5
CIRCLIP

09381-15001-000   0938115001000

0938115001000

Unit Price

6
BEARING, 15X19X20
BEARING, PISTON PIN

09263-15040-000   0926315040000

0926315040000

Unit Price

7
DISCONTINUE
WASHER, PISTON PIN

09169-15004-000   0916915004000

0916915004000
Not available
8
DISCONTINUE
CRANKSHAFT ASSY

12200-27C01-000   1220027C01000

1220027C01000
Not available
9
DISCONTINUE
ROD, CONNECTING

12161-27C00-0D0   1216127C000D0

1216127C000D0
Not available
10
WASHER(22X27.5X1.5)

09160-22043-000  

09160-22070-000
 0916022043000

Unit Price

11
PIN, CRANK

12211-27C00-000   1221127C00000

1221127C00000

Unit Price

12
BEARING

09263-22047-0C0  

09263-22060-000
 09263220470C0

Unit Price

13
CRANKSHAFT, RH

12221-27C00-000   1222127C00000

1222127C00000
Not available
14
DISCONTINUE

12261-27C00-000  

1226127C00000
Not available
15
BEARING

09262-22020-000  

09262-22025-000
 0926222020000

Unit Price

16
OIL SEAL

09283-30058-000  

09283-30076-000
 0928330058000

Unit Price

17
OIL SEAL 18 X 30 X 6
OIL SEAL, LH (18X30X6)

09283-18006-000   0928318006000

0928318006000

Unit Price

18
SPACER, PRIMARY DRIVE GEAR

12359-01B01-000  

12359-27C30-000
 1235901B01000

Unit Price

19
O RING(D:2.4, ID:19.8)
O RING

09280-20004-000   0928020004000

0928020004000

Unit Price

20
DISCONTINUE
GEAR, PRIMARY DRIVE (NT:17)

21111-01B41-000   2111101B41000

2111101B41000
Not available
21
GEAR, GOVERNOR DRIVE (NT:19)

12674-01B40-000   1267401B40000

1267401B40000
Not available
22
NUT, PRY DRIVE GEAR
NUT

09140-16019-000   0914016019000

0914016019000

Unit Price

23
PR DVN GEAR WASHER
WASHER

09164-16002-000   0916416002000

0916416002000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
