Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FUEL TANK (MODEL K1 / K2 / K3) REFER TO FIG.19A(F- 5) FOR MODEL K4/K5/K6

FUEL TANK (MODEL K4 / K5 / K6) FOR SUZUKI RM 125 2003

FAIRING (MODEL K1 / K2) REFER TO FIG.21A(F- 8) FOR MODEL K3/K4/K5/K6

Item numbers

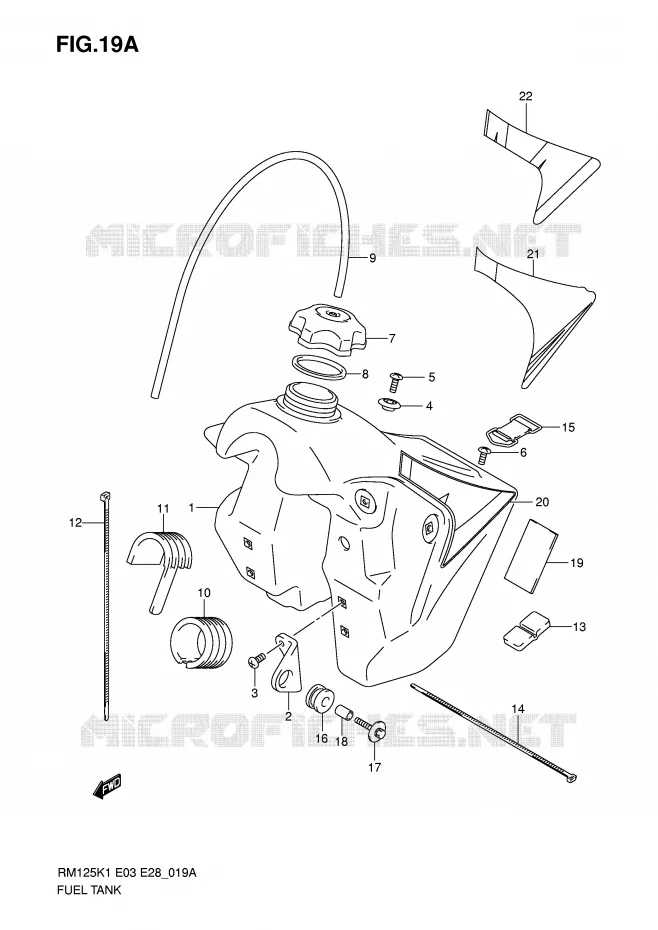

FUEL TANK (MODEL K4/K5/K6) Suzuki MOTO 125 RM 2003 RM125K3(E3/E28)
1
1
2
3
4
4
5
5
6
7
8
9
10
11
11
12
13
13
14
15
16
17
18
19
20
21
22
1
DISCONTINUE
TANK, FUEL (YELLOW)

44110-36F10-YU1   4411036F10YU1

4411036F10YU1
Not available
1
TANK, FUEL (YELLOW)

44110-36F20-YU1   4411036F20YU1

4411036F20YU1
Not available
2
BRACKET, FUEL TANK FR
BRACKET, FRONT

44131-27C01-000   4413127C01000

4413127C01000

Unit Price

3
SCREW

02142-06123-000  

02142-0612B-000
 0214206123000

Unit Price

4
HOOK, SEAT FR
HOOK, SEAT FRONT

44132-37F10-000   4413237F10000

4413237F10000

Unit Price

4
DISCONTINUE
HOOK, SEAT FRONT

44132-37F00-000   4413237F00000

4413237F00000
Not available
5
SCREW

02122-06203-000  

02122-0620B-000
 0212206203000

Unit Price

5
SCREW

02142-06163-000  

02142-0616A-000
 0214206163000

Unit Price

6
SCREW, FUEL TANK BAND
SCREW, TANK BAND

09139-06134-000   0913906134000

0913906134000

Unit Price

7
CAP, FUEL TANK FILLER
CAP, FUEL TANK

44210-37F00-000   4421037F00000

4421037F00000

Unit Price

8
GASKET, FUEL TANK FILLER CAP

44248-27C00-000  

44248-27C01-000
 4424827C00000

Unit Price

9
HOSE
HOSE

09352-50823-600  

09352-50005-600
 0935250823600

Unit Price

10
CUSHION, FUEL TANK NO.1
CUSHION

44541-26C00-000   4454126C00000

4454126C00000

Unit Price

11
CUSHION, FUEL TANK
CUSHION

44541-37F00-000   4454137F00000

4454137F00000

Unit Price

11
DISCONTINUE
CUSHION

44541-36F00-000   4454136F00000

4454136F00000
Not available
12
CLAMP(L:300)
CLAMP

09407-30402-000   0940730402000

0940730402000

Unit Price

13
CUSHION, FUEL TANK RR
CUSHION, REAR

44542-37F00-000   4454237F00000

4454237F00000

Unit Price

13
DISCONTINUE
CUSHION, REAR

44542-36F00-000   4454236F00000

4454236F00000
Not available
14
CLAMP<br />CLAMP, REAR
CLAMP
CLAMP, REAR

09407-25402-000   0940725402000

0940725402000

Unit Price

15
BAND, FUEL TANK RR
BAND, REAR

44560-27C00-000   4456027C00000

4456027C00000

Unit Price

16
CUSHION(8.7X26X14)

14762-01B01-000  

14762-01B02-000
 1476201B01000

Unit Price

17
BOLT
BOLT, FRONT

09116-06195-000   0911606195000

0911606195000

Unit Price

18
SPACER,6.5X9X13.5<br />SPACER
SPACER, 6.5X9X13.5
SPACER

09180-06268-000   0918006268000

0918006268000

Unit Price

19
PROTECTOR(40X85X5)<br />CUSHION, SIDE
PROTECTOR(40X85X5)
CUSHION, SIDE

33652-19F00-000   3365219F00000

3365219F00000

Unit Price

20
DISCONTINUE
TAPE SET

68110-37F30-NT3   6811037F30NT3

6811037F30NT3
Not available
21
DISCONTINUE
TAPE SET

68110-37F40-AZR   6811037F40AZR

6811037F40AZR
Not available
22
DISCONTINUE
TAPE SET

68110-37F50-CFK   6811037F50CFK

6811037F50CFK
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
