REAR WHEEL (MODEL K4) REFER TO FIG.36C(I-16) FOR MODEL K5

REAR WHEEL (MODEL K5) FOR SUZUKI RM 125 2003

REAR WHEEL (MODEL K6)

Item numbers

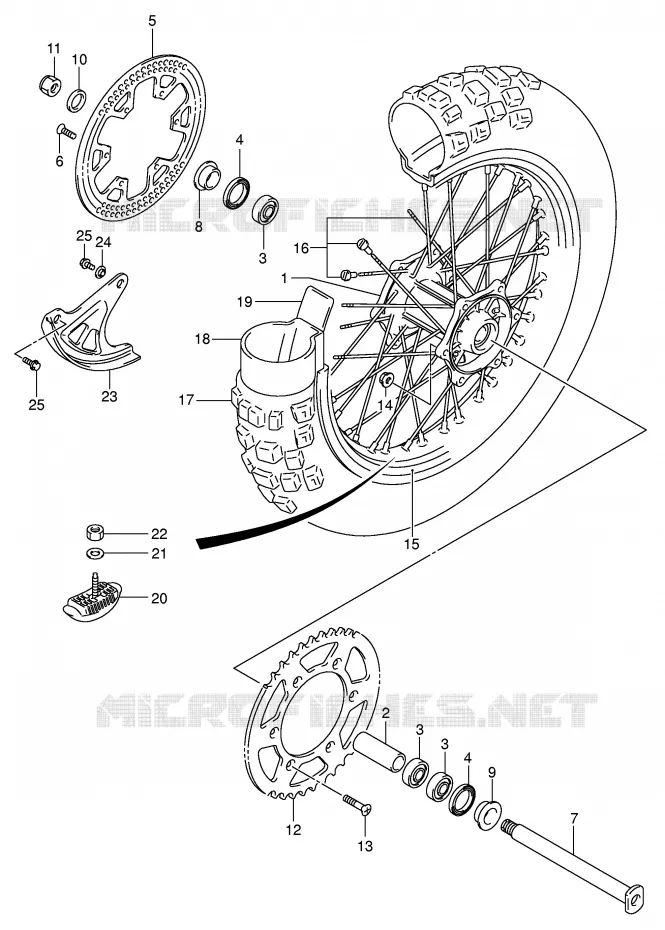

REAR WHEEL (MODEL K5) Suzuki MOTO 125 RM 2003 RM125K3(E3/E28)
1
2
3
3
3
4
4
5
6
7
8
9
10
11
12
12
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
1
HUB, RR WHEEL
HUB, REAR WHEEL

64111-36E00-000   6411136E00000

6411136E00000

Unit Price

2
SPACER, RR HUB BEARING
SPACER, BEARING (22.5X30X102)

64731-36E00-000   6473136E00000

6473136E00000

Unit Price

3
BEARING (22X44X12)

09262-22033-000   0926222033000

0926222033000

Unit Price

4
OIL SEAL 30X44X7
SEAL, DUST (30X44X7)

09283-30023-000   0928330023000

0928330023000

Unit Price

5
DISCONTINUE
DISC, REAR BRAKE

69211-37F10-000   6921137F10000

6921137F10000
Not available
6
SCREW

09120-06014-000   0912006014000

0912006014000

Unit Price

7
AXLE, RR
AXLE, REAR

64711-37F00-000   6471137F00000

6471137F00000

Unit Price

8
SPACER, RR AXLE
SPACER, RH

64751-36E00-000   6475136E00000

6475136E00000

Unit Price

9
SPACER, RR AXLE
SPACER, LH

64751-36E00-000   6475136E00000

6475136E00000

Unit Price

10
WASHER

09160-19022-000   0916019022000

0916019022000

Unit Price

11
NUT 18MM<br />NUT
NUT 18MM
NUT

09159-18007-000   0915918007000

0915918007000

Unit Price

12
SPROCKET, RR(NT:49)
SPROCKET, REAR (NT:49)

64511-28E00-000   6451128E00000

6451128E00000

Unit Price

12
SPROCKET, RR(NT:50)
SPROCKET, REAR (NT:50)

64511-36E00-000   6451136E00000

6451136E00000

Unit Price

12
SPROCKET, RR(NT:51 AL)
SPROCKET, REAR (NT:51)

64511-40261-000   6451140261000

6451140261000

Unit Price

12
DISCONTINUE
SPROCKET, REAR (NT:48)

64511-14D60-000   6451114D60000

6451114D60000
Not available
13
SCREW, REAR SPROCKET
SCREW (8X30.5)

09120-08017-000   0912008017000

0912008017000

Unit Price

14
NUT

09159-08067-000   0915908067000

0915908067000

Unit Price

15
RIM, RR WHEEL(1.85X19 AL)
RIM, REAR WHEEL (2.15X19)

65311-36E00-000   6531136E00000

6531136E00000

Unit Price

16
SPOKE SET, RR WHEEL
SPOKE SET, WHEEL

65320-37F10-000   6532037F10000

6532037F10000

Unit Price

17
DISCONTINUE
TIRE, REAR (100/90-19) (DUNLOP)

65110-36F00-000   6511036F00000

6511036F00000
Not available
18
TUBE

55200-44610-000  

55200-44611-000
 5520044610000

Unit Price

19
PROTECTOR, WHL INR TUBE
PROTECTOR, INNER TUBE

65261-01B30-000   6526101B30000

6526101B30000

Unit Price

20
STOPPER, BEAD(1.85)
STOPPER, BEAD

65270-43D00-000   6527043D00000

6527043D00000

Unit Price

21
08322-0108A
WASHER

08322-01083-000  

0832201083000
Not available
22
NUT

08310-00083-000  

08310-0008B-000
 0831000083000

Unit Price

23
COVER, REAR DISC

69231-37F10-000  

69231-37F12-000
 6923137F10000

Unit Price

24
WASHER

08322-01067-000  

08322-0106A-000
 0832201067000

Unit Price

25
BOLT, EXHAUST VALVE S
BOLT

09103-06256-000   0910306256000

0910306256000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
