Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

SHOCK ABSORBER LINKAGE (MODEL K4 / K5 / K6)

REAR WHEEL (MODEL K1 / K2) FOR SUZUKI RM 125 2003

REAR WHEEL (MODEL K3) REFER TO FIG.36B(I-14) FOR MODEL K4

Item numbers

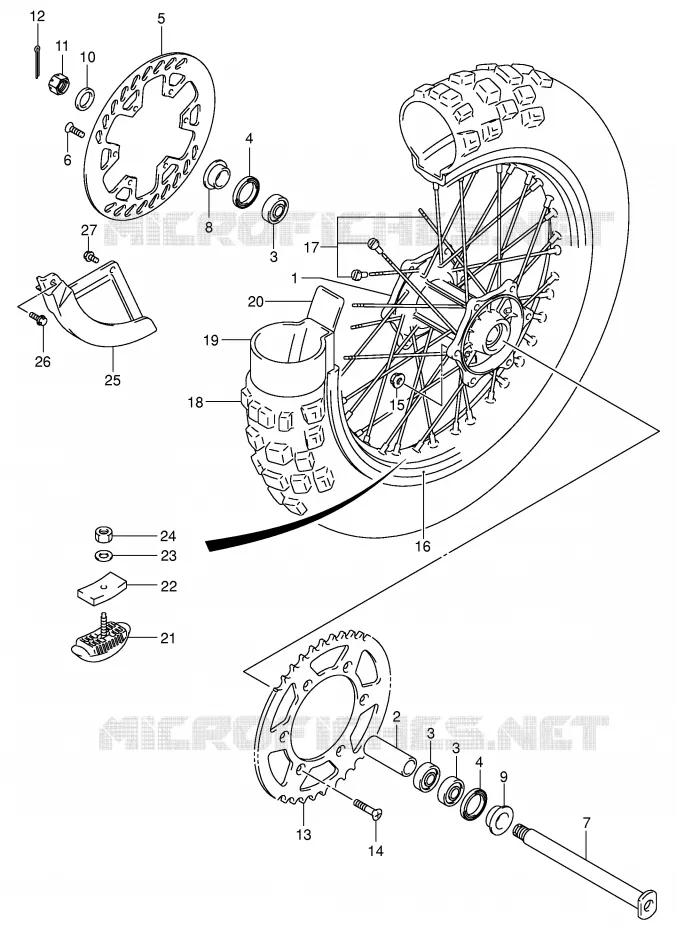

REAR WHEEL (MODEL K1/K2) Suzuki MOTO 125 RM 2003 RM125K3(E3/E28)
1
2
3
3
3
4
4
5
6
7
8
9
10
11
12
13
13
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
HUB, RR WHEEL
HUB, REAR WHEEL

64111-36E00-000   6411136E00000

6411136E00000

Unit Price

2
SPACER, RR HUB BEARING
SPACER, BEARING (22.5X30X102)

64731-36E00-000   6473136E00000

6473136E00000

Unit Price

3
BEARING (22X44X12)

09262-22033-000   0926222033000

0926222033000

Unit Price

4
OIL SEAL 30X44X7
SEAL, DUST (30X44X7)

09283-30023-000   0928330023000

0928330023000

Unit Price

5
DISCONTINUE
DISC, REAR BRAKE

69211-37F00-000   6921137F00000

6921137F00000
Not available
6
SCREW

09120-06011-000  

09120-06014-000
 0912006011000

Unit Price

7
DISCONTINUE
AXLE, REAR

64711-37F10-000   6471137F10000

6471137F10000
Not available
8
SPACER, RR AXLE
SPACER, RH

64751-36E00-000   6475136E00000

6475136E00000

Unit Price

9
SPACER, RR AXLE
SPACER, LH

64751-36E00-000   6475136E00000

6475136E00000

Unit Price

10
WASHER

09160-19022-000   0916019022000

0916019022000

Unit Price

11
NUT

08314-40183-000  

08314-4018A-000
 0831440183000

Unit Price

12
PIN

04111-40308-000  

04111-4030A-000
 0411140308000

Unit Price

13
SPROCKET, RR(NT:50)
SPROCKET, REAR (NT:50)

64511-00B12-000   6451100B12000

6451100B12000

Unit Price

13
SPROCKET, RR(NT:48)
SPROCKET, REAR (NT:48)

64511-14D60-000   6451114D60000

6451114D60000

Unit Price

13
SPROCKET, RR(NT:49)
SPROCKET, REAR (NT:49)

64511-28E00-000   6451128E00000

6451128E00000

Unit Price

13
SPROCKET, RR(NT:51 AL)
SPROCKET, REAR (NT:51)

64511-40261-000   6451140261000

6451140261000

Unit Price

14
SCREW<br />SCREW (8X30.5)
SCREW
SCREW (8X30.5)

09120-08010-000   0912008010000

0912008010000

Unit Price

15
NUT

09159-08067-000   0915908067000

0915908067000

Unit Price

16
RIM, RR WHEEL(1.85X19 AL)
RIM, REAR WHEEL (2.15X19)

65311-36E00-000   6531136E00000

6531136E00000

Unit Price

17
SPOKE SET, RR WHEEL
SPOKE SET, WHEEL

65320-37F00-000   6532037F00000

6532037F00000

Unit Price

18
DISCONTINUE
TIRE, REAR (100/90-19) (DUNLOP)

65110-36E10-000   6511036E10000

6511036E10000
Not available
19
TUBE

55200-44610-000  

55200-44611-000
 5520044610000

Unit Price

20
PROTECTOR, WHL INR TUBE
PROTECTOR, INNER TUBE

65261-01B30-000   6526101B30000

6526101B30000

Unit Price

21
STOPPER, BEAD(1.85)
STOPPER, BEAD

65270-43D00-000   6527043D00000

6527043D00000

Unit Price

22
CUSHION, BEAD STOPPER

65271-27C00-000   6527127C00000

6527127C00000

Unit Price

23
08322-0108A
WASHER

08322-01083-000  

0832201083000
Not available
24
NUT

08310-00083-000  

08310-0008B-000
 0831000083000

Unit Price

25
69231-37F01
COVER, REAR DISC

69231-36E00-000  

6923136E00000
Not available
26
BOLT

01550-06203-000  

01550-0620B-000
 0155006203000

Unit Price

27
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 125 RM 2003
