Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKCASE

CRANKCASE COVER-WATER PUMP FOR SUZUKI RM 125 2004

CRANKSHAFT

Item numbers

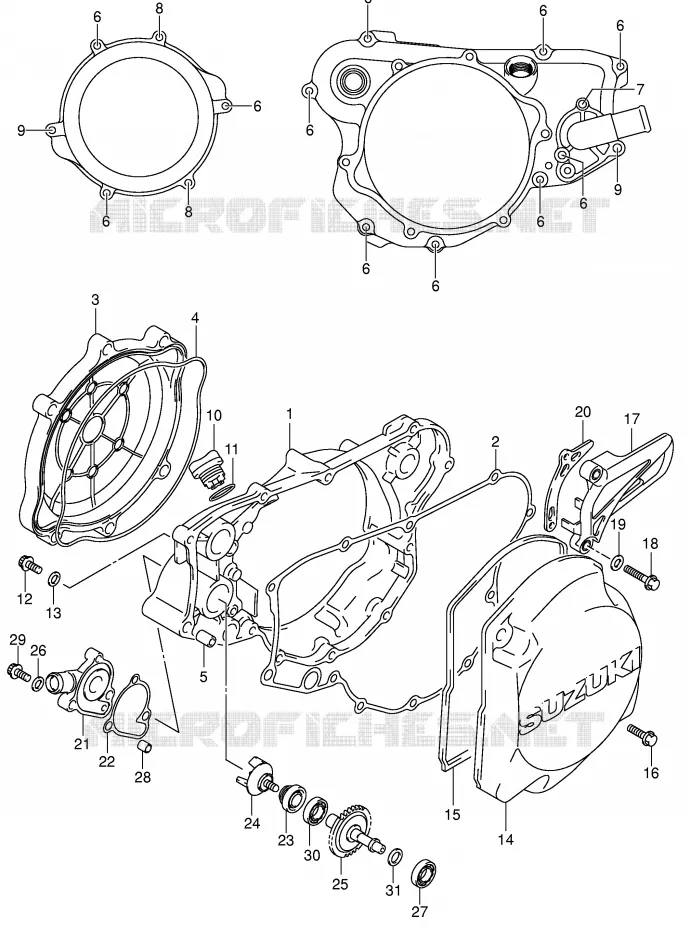

CRANKCASE COVER-WATER PUMP Suzuki MOTO 125 RM 2004 RM125K4
24
24
1
COVER, CLUTCH

11341-36F00-000   1134136F00000

1134136F00000

Unit Price

2
GASKET, CLUTCH COVER

11482-36F00-000   1148236F00000

1148236F00000

Unit Price

3
COVER, CLUTCH OUTER

11371-36E10-000  

11371-36F01-000
 1137136E10000

Unit Price

4
O RING, CLUTCH COVER OUTER
O RING, CLUTCH OUTER COVER

11484-36E10-000   1148436E10000

1148436E10000

Unit Price

5
PIN
PIN

04211-09109-000   0421109109000

0421109109000

Unit Price

6
BOLT

01547-06253-000  

01547-0625B-000
 0154706253000

Unit Price

6
BOLT,CL COVER<br />BOLT (L:25)
BOLT, CL COVER
BOLT (L:25)

09103-06250-000   0910306250000

0910306250000

Unit Price

7
BOLT

01547-06303-000  

01547-0630B-000
 0154706303000

Unit Price

7
BOLT, CL COVER
BOLT (L:30)

09103-06251-000   0910306251000

0910306251000

Unit Price

8
BOLT

01547-06653-000  

01547-0665B-000
 0154706653000

Unit Price

8
BOLT, CRANKCASE L65
BOLT (L:65)

09103-06245-000   0910306245000

0910306245000

Unit Price

9
BOLT

01547-06703-000  

01547-0670A-000
 0154706703000

Unit Price

9
BOLT, CL COVER
BOLT (L:70)

09103-06254-000   0910306254000

0910306254000

Unit Price

10
PLUG,ENGINE OIL FILLER<br />PLUG, OIL FILLER
PLUG, ENGINE OIL FILLER
PLUG, OIL FILLER

11971-25D00-000   1197125D00000

1197125D00000

Unit Price

11
O-RING,OIL FILLER<br />O RING
O-RING, OIL FILLER
O RING

09280-17003-000   0928017003000

0928017003000

Unit Price

12
BOLT

07120-06103-000  

07120-0610B-000
 0712006103000

Unit Price

13
TACH GEAR WASHER<br />GASKET
TACH GEAR WASHER
GASKET

09168-06004-000   0916806004000

0916806004000

Unit Price

14
COVER, MAGNETO

11351-36E10-000  

11351-36F00-000
 1135136E10000

Unit Price

15
GASKET, MAGNETO COVER

11483-36E11-000   1148336E11000

1148336E11000

Unit Price

16
BOLT

01547-06203-000  

01547-0620B-000
 0154706203000

Unit Price

16
BOLT

09103-06235-000  

01547-06207-000
 0910306235000

Unit Price

17
COVER, ENGINE SPROCKET
COVER, SPROCKET

11360-36E00-000   1136036E00000

1136036E00000

Unit Price

18
BOLT

01547-06303-000  

01547-0630B-000
 0154706303000

Unit Price

18
BOLT, CL COVER
BOLT

09103-06251-000   0910306251000

0910306251000

Unit Price

19
WASHER

08322-01063-000  

08322-0106A-000
 0832201063000

Unit Price

20
PLATE, FR CHAIN GUIDE
PLATE, CHAIN GUIDE

27641-37E00-000   2764137E00000

2764137E00000

Unit Price

21
CASE, WATER PUMP

17411-36F00-000   1741136F00000

1741136F00000

Unit Price

22
GASKET, WATER PUMP CASE

17431-36F00-000   1743136F00000

1743136F00000

Unit Price

23
SEAL, WATER PUMP OIL

17461-03B00-000   1746103B00000

1746103B00000

Unit Price

23
SEAL, WATER PUMP OIL

17461-37F00-000   1746137F00000

1746137F00000

Unit Price

24
IMPELLER, WATER PUMP

17491-36F00-000   1749136F00000

1749136F00000

Unit Price

24
IMPELLER, WATER PUMP

17491-43D01-000   1749143D01000

1749143D01000

Unit Price

25
SHAFT, WATER PUMP

17510-36F10-000   1751036F10000

1751036F10000

Unit Price

25
DISCONTINUE
SHAFT, WATER PUMP

17510-36F00-000   1751036F00000

1751036F00000
Not available
26
TACH GEAR WASHER<br />GASKET, WATER PUMP DRAIN
TACH GEAR WASHER
GASKET, WATER PUMP DRAIN

09168-06004-000   0916806004000

0916806004000

Unit Price

27
BEARING
BEARING, WATER PUMP LH

09262-08005-000   0926208005000

0926208005000

Unit Price

28
PIN<br />PIN, WATER PUMP CASE
PIN
PIN, WATER PUMP CASE

04211-09109-000   0421109109000

0421109109000

Unit Price

29
BOLT

07120-06103-000  

07120-0610B-000
 0712006103000

Unit Price

30
BALL BEARING<br />BEARING, WATER PUMP RH
BALL BEARING
BEARING, WATER PUMP RH

08113-69010-000   0811369010000

0811369010000

Unit Price

31
WASHER, THRUST
WASHER

08211-06121-000   0821106121000

0821106121000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
