Parts diagram

TRANSMISSION (MODEL K4 / K5 / K6)

GEAR SHIFTING ASSY FOR SUZUKI RM 125 2004

KICK STARTER

Item numbers

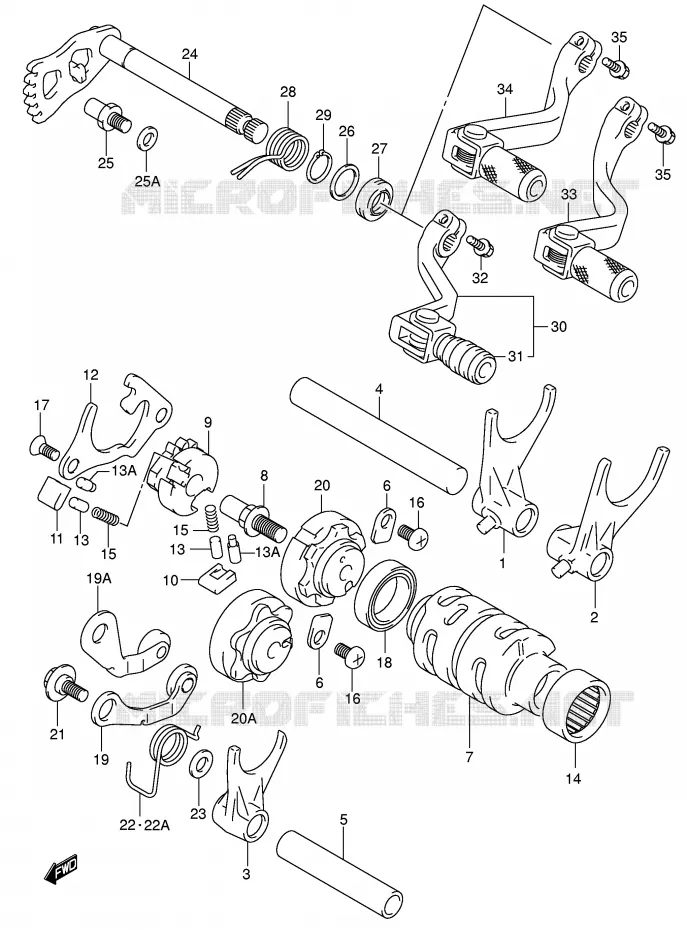

GEAR SHIFTING ASSY Suzuki MOTO 125 RM 2004 RM125K4
1
2
3
4
5
6
6
7
8
9
10
11
12
13A
13A
13
13
14
15
15
16
16
16
16
17
17
18
19
19A
20
20A
21
22
22A
23
24
25A
25
25
25
26
27
28
29
30
31
32
33
34
34
35
35
1
FORK, GEAR SHIFT NO.1
FORK, NO.1

25211-36E10-000   2521136E10000

2521136E10000

Unit Price

2
FORK, GEAR SHIFT NO.2
FORK, NO.2

25221-36E10-000   2522136E10000

2522136E10000

Unit Price

3
FORK, GEAR SHIFT NO.3
FORK, NO.3

25231-36E10-000   2523136E10000

2523136E10000

Unit Price

4
SHAFT, GEAR SHIFT FORK(L:95)
SHAFT, NO.1 (L:95)

25411-37F20-000   2541137F20000

2541137F20000

Unit Price

5
SHAFT, GEAR SHIFT FORK(L:60)
SHAFT, NO.2 (L:60)

25421-27C01-000   2542127C01000

2542127C01000

Unit Price

6
RETAINER<br />RETAINER, SHAFT CAM BEARING
RETAINER
RETAINER, SHAFT CAM BEARING

24741-21A00-000   2474121A00000

2474121A00000

Unit Price

7
CAM, GEAR SHIFT

25310-36F00-000   2531036F00000

2531036F00000

Unit Price

8
PIN, SHIFT CAM DRIVEN GEAR
PIN, GEAR SHIFT CAM

25313-27C02-000   2531327C02000

2531327C02000

Unit Price

9
GEAR,GEAR SHIFT CAM DRIVEN<br />SHIFTER, GEAR SHIFT
GEAR, GEAR SHIFT CAM DRIVEN
SHIFTER, GEAR SHIFT

25322-31310-000   2532231310000

2532231310000

Unit Price

10
PAWL, GEAR SHIFT NO.1
PAWL, GEAR SHIFT NO.1

25323-34201-000   2532334201000

2532334201000

Unit Price

11
PAWL, GEAR SHIFT NO.2
PAWL, GEAR SHIFT NO.2

25324-34201-000   2532434201000

2532434201000

Unit Price

12
LIFTER, GEAR SHIFT POLE
LIFTER, GEAR SHIFT

25331-28C00-000   2533128C00000

2533128C00000

Unit Price

13
SHIFTING PAUL ROLLER<br />PIN, SHIFT PAWL
SHIFTING PAUL ROLLER
PIN, SHIFT PAWL

09261-05003-000   0926105003000

0926105003000

Unit Price

13A
PIN
PIN, SHIFT PAWL

09209-05023-000   0920905023000

0920905023000

Unit Price

14
R BEARING 25X32X12<br />BEARING, SHIFT CAM LH
R BEARING 25X32X12
BEARING, SHIFT CAM LH

09263-25018-000   0926325018000

0926325018000

Unit Price

15
K S PAWL SPRING<br />SPRING
K S PAWL SPRING
SPRING

09440-04003-000   0944004003000

0944004003000

Unit Price

16
SCREW

02112-06103-000  

02112-0610B-000
 0211206103000

Unit Price

16
SCREW(6X10)
SCREW, SHIFT CAM (6X10)

09125-06112-000   0912506112000

0912506112000

Unit Price

17
SCREW

02122-06123-000  

02122-0612B-000
 0212206123000

Unit Price

17
SCREW<br />SCREW, SHIFT PAWL LIFTER (6X12)
SCREW
SCREW, SHIFT PAWL LIFTER (6X12)

09126-06011-000   0912606011000

0912606011000

Unit Price

18
BEARING
BEARING, SHIFT CAM RH

08140-69050-000   0814069050000

0814069050000

Unit Price

19A
STOPPER, SHIFT CAM

25350-37F30-000   2535037F30000

2535037F30000

Unit Price

19
DISCONTINUE
STOPPER, SHIFT CAM

25350-28C20-000   2535028C20000

2535028C20000
Not available
20
DISCONTINUE
PLATE, SHIFT CAM STOPPER

25381-36E00-000   2538136E00000

2538136E00000
Not available
20A
PLATE, SHIFT CAM STOPPER

25381-37F30-000   2538137F30000

2538137F30000
Not available
21
BOLT
BOLT

09111-06041-000   0911106041000

0911106041000

Unit Price

22A
SPRING, SHIFT CAM STOPPER
SPRING

25355-37F00-000   2535537F00000

2535537F00000

Unit Price

22
DISCONTINUE
SPRING

09448-18025-000   0944818025000

0944818025000
Not available
23
WASHER, THRUST
WASHER

08211-06121-000   0821106121000

0821106121000

Unit Price

24
SHAFT, GEAR SHIFT

25510-36F00-000   2551036F00000

2551036F00000

Unit Price

25
STOPPER, GEAR SHIFT ARM

25671-37F00-000   2567137F00000

2567137F00000

Unit Price

25
STOPPER, GEAR SHIFT ARM

25671-37F10-000   2567137F10000

2567137F10000

Unit Price

25
STOPPER, SHIFT ARM
STOPPER, GEAR SHIFT ARM

25671-38B00-000   2567138B00000

2567138B00000

Unit Price

25A
SHIM, 8.8X14X1.0
WASHER, GEAR SHIFT ARM

09181-08139-000   0918108139000

0918108139000

Unit Price

26
WASHER
WASHER (14X20X1)

09181-14139-000   0918114139000

0918114139000

Unit Price

27
SEAL,OIL(14X22X6)<br />SEAL, SHIFT SHAFT (14X22X6)
SEAL, OIL(14X22X6)
SEAL, SHIFT SHAFT (14X22X6)

09283-14006-000   0928314006000

0928314006000

Unit Price

28
SPRING
SPRING, SHIFT RETURN

09444-20004-000   0944420004000

0944420004000

Unit Price

29
CIRCLIP

08331-31146-000  

08331-3114A-000
 0833131146000

Unit Price

30
LEVER ASSY, GEAR SHIFT

25600-36F00-000  

25600-36F10-000
 2560036F00000

Unit Price

31
RUBBER, GEAR SHIFT PEDAL

25652-27C00-000  

25652-27C01-000
 2565227C00000

Unit Price

32
BOLT

01547-06203-000  

01547-0620B-000
 0154706203000

Unit Price

33
LEVER ASSY, GEAR SHIFT

25600-36F10-000   2560036F10000

2560036F10000

Unit Price

34
LEVER ASSY, GEAR SHIFT

25600-36F30-000   2560036F30000

2560036F30000

Unit Price

34
DISCONTINUE
LEVER ASSY, GEAR SHIFT

25600-36F20-000   2560036F20000

2560036F20000
Not available
35
BOLT

09103-06235-000  

01547-06207-000
 0910306235000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
