REAR BRAKE MASTER CYLINDER (MODEL K1 / K2) REFER TO FIG.38A(J- 7) FOR MODEL K3

REAR BRAKE MASTER CYLINDER (MODEL K3) FOR SUZUKI RM 125 2004

REAR BRAKE MASTER CYLINDER (MODEL K4) REFER TO FIG.38C(J- 9) FOR MODEL K5/K6

Item numbers

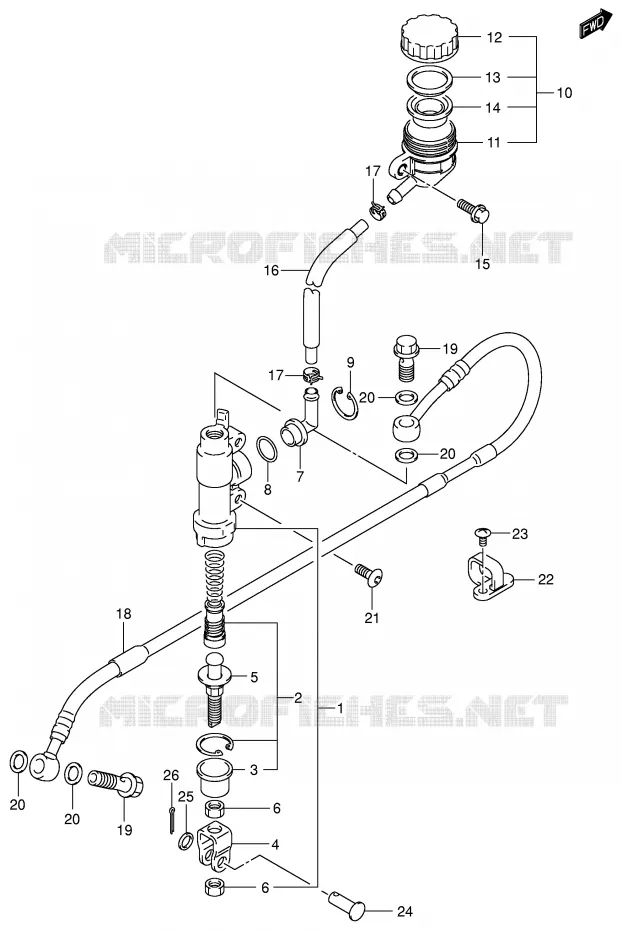

REAR BRAKE MASTER CYLINDER (MODEL K3) Suzuki MOTO 125 RM 2004 RM125K4
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
19
20
20
20
20
21
22
23
24
25
26
1
DISCONTINUE

69600-37F10-000  

6960037F10000
Not available
2
PISTON/CUP SET
PISTON/CUP SET

69600-04820-000  

69600-04821-000
 6960004820000

Unit Price

3
BOOT
BOOT

69691-00A00-000   6969100A00000

6969100A00000

Unit Price

4
DISCONTINUE
YOKE

69692-37F10-000   6969237F10000

6969237F10000
Not available
5
ROD, PUSH

69670-27A40-000   6967027A40000

6967027A40000
Not available
6
NUT
NUT

69693-05A00-000   6969305A00000

6969305A00000

Unit Price

7
CONNECTOR
CONNECTOR

59672-17C00-000   5967217C00000

5967217C00000

Unit Price

8
O RING CONECTOR<br />O RING
O RING CONECTOR
O RING

69686-34200-000   6968634200000

6968634200000

Unit Price

9
CIRCLIP
CIRCLIP

69674-00B20-000   6967400B20000

6967400B20000

Unit Price

10
TANK ASSY, RR BRAKE RESERVOIR
TANK ASSY, RESERVOIR

69740-03D10-000   6974003D10000

6974003D10000

Unit Price

11
TANK, RESERVOIR

69741-03D00-000   6974103D00000

6974103D00000

Unit Price

12
CAP

69669-03D10-000   6966903D10000

6966903D10000

Unit Price

13
PLATE

69668-00B20-000   6966800B20000

6966800B20000

Unit Price

14
DIAPHRAGM

69667-00B20-000   6966700B20000

6966700B20000

Unit Price

15
BOLT

09103-06233-000   0910306233000

0910306233000

Unit Price

16
DISCONTINUE
HOSE

69731-37F00-000   6973137F00000

6973137F00000
Not available
17
CLAMP.RESERVOIR HOSE
CLAMP

69735-00B20-000   6973500B20000

6973500B20000

Unit Price

18
69480-36F11
HOSE, REAR BRAKE

69480-36F10-000   6948036F10000

6948036F10000
Not available
19
BOLT, BRAKE FLUID

09360-10042-000  

09360-10062-000
 0936010042000

Unit Price

20
WASHER<br />WASHER (10X15X1.5)
WASHER
WASHER (10X15X1.5)

09161-10009-000   0916110009000

0916110009000

Unit Price

21
SCREW

09139-06067-000  

09139-06237-000
 0913906067000

Unit Price

22
GUIDE, RR BRAKE

61196-27C30-000  

61196-27C50-000
 6119627C30000

Unit Price

23
SCREW

02142-05103-000  

02142-0510A-000
 0214205103000

Unit Price

24
PIN

09200-08048-000   0920008048000

0920008048000

Unit Price

25
WASHER

09160-08119-000  

09160-08090-000
 0916008119000

Unit Price

26
PIN

04111-20158-000  

04111-2015A-000
 0411120158000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
