WIRING HARNESS (MODEL S / T / V / W / X) REFER TO FIG.26A(D-13) FOR MODEL Y

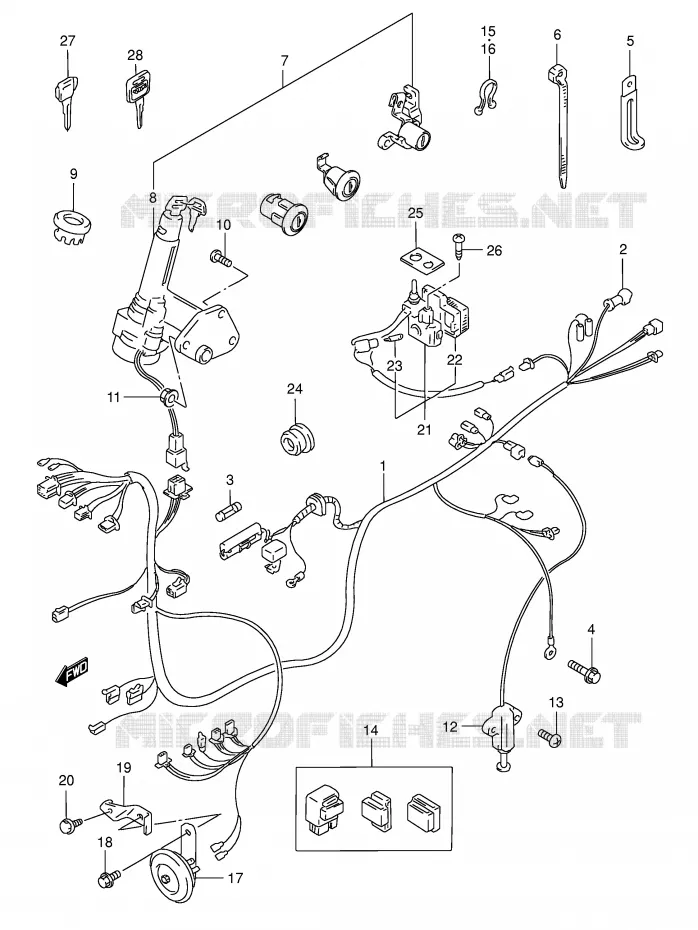

WIRING HARNESS (MODEL Y) FOR SUZUKI BURGMAN 125 2000

* CATALOG PREFACE *

Item numbers

HARNESS, WIRING

36610-20E61-000 3661020E61000

Not available

CAP, TERMINAL

31861-31500-000 3186131500000

$4,97

Unit Price

FUSE (15A)

09481-15001-000 0948115001000

$2,97

Unit Price

BOLT

01550-06107-000

01550-06123-000

$3,97

Unit Price

CLAMP(L:65)

09404-06432-000

09404-06039-000

$3,97

Unit Price

BAND, WIRING HARNESS
CLAMP

09407-14403-000 0940714403000

$3,97

Unit Price

CLAMP

09407-19401-000

09407-22403-000

$3,97

Unit Price

CLAMP
CLAMP (L:235)

09407-25401-000 0940725401000

$7,97

Unit Price

LOCK SET

37100-20851-000 3710020851000

Not available

LOCK SET

37100-20860-000 3710020860000

Not available

LOCK ASSY, STEERING

37100-20E11-000 3710020E11000

Not available

LOCK ASSY, STEERING

37100-20E20-000 3710020E20000

Not available

CAP, STEERING LOCK

37155-03A60-000 3715503A60000

Not available

CAP, STEERING LOCK

37155-20E00-000 3715520E00000

Not available

BOLT

09139-06014-000 0913906014000

Not available

SCREW(6X20)
BOLT

09139-06048-000 0913906048000

$2,97

Unit Price

NUT 6MM

08316-10063-000

08319-31067-000

$3,97

Unit Price

37840-20E02

37840-20E00-000

Not available

SCREW

02142-06203-000

02142-0620B-000

$2,97

Unit Price

RELAY ASSY
RELAY ASSY, SIDE STAND

38740-24X50-000 3874024X50000

$45,97

Unit Price

CLIP (D:11.5)

09408-00012-000 0940800012000

Not available

CLIP (D:16)

09408-00021-000 0940800021000

Not available

DISCONTINUE
HORN ASSY

38500-20E10-000 3850020E10000

Not available

BOLT

01550-08123-000

01550-0812B-000

$4,97

Unit Price

BRACKET, HORN

38590-20E00-000 3859020E00000

Not available

BOLT

01550-06123-000

01550-0612B-000

$3,97

Unit Price

LAMP ASSY, TRUNK BOX

36210-39C10-000 3621039C10000

Not available

LENS

36212-39C00-000 3621239C00000

Not available

BULB(12V27/8W)
BULB (13.5V, 2W)

09471-12118-000

Not available

GROMMET, TRUNK BOX

09308-08014-000 0930808014000

Not available

CUSHION

36920-29C02-000 3692029C02000

Not available

SCREW

03541-04123-000

03541-0412A-000

$2,97

Unit Price

KEY, BLANK(TYPE:C)
KEY, BRANK TYPE C

37146-03A00-000 3714603A00000

$19,97

Unit Price

KEY, BLANK(TYPE:D)
KEY, BRANK TYPE D

37146-03A10-000 3714603A10000

$19,97

Unit Price

KEY, BLANK(TYPE:E)
KEY, BRANK TYPE E

37146-03A20-000 3714603A20000

$19,97

Unit Price

KEY, BLANK(TYPE:F)
KEY, BRANK TYPE F

37146-03A30-000 3714603A30000

$19,97

Unit Price

KEY, BLANK
KEY, BRANK

37146-26D10-000 3714626D10000

$81,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS (MODEL Y) of your Suzuki BURGMAN 125 of BURGMAN. Let us know if you have any questions.
