CRANKCASE

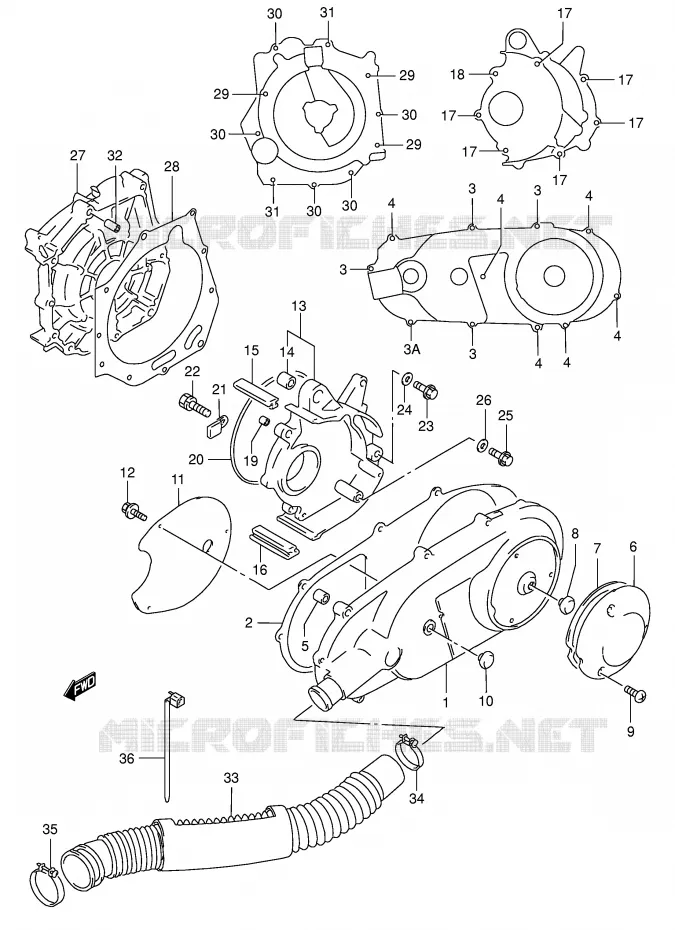

CRANKCASE COVER (MODEL S) FOR SUZUKI BURGMAN 125 2000

CRANKCASE COVER (MODEL T / V / W / X / Y)

Item numbers

COVER, CLUTCH

11340-20E00-000 1134020E00000

Not available

GASKET, CLUTCH COVER

11482-20E00-000 1148220E00000

Not available

SCREW

02112-06253-000

02112-0625A-000

$2,97

Unit Price

SCREW (6X25)

09128-06063-000 0912806063000

Not available

SCREW

02112-06403-000

02112-0640B-000

$3,97

Unit Price

PIN 11X16
PIN

04211-11169-000 0421111169000

$2,97

Unit Price

CAP, CLUTCH COVER

11383-20E00-000 1138320E00000

Not available

CUSHION, CLUTCH COVER CAP

11389-09D00-000 1138909D00000

Not available

MUFF STOPPER CUSHION
CUSHION

09321-10007-000 0932110007000

$5,97

Unit Price

SCREW

02112-05123-000

02112-0512A-000

$2,97

Unit Price

PLUG(OD:19)
PLUG (15X19X2)

09250-15010-000 0925015010000

$3,97

Unit Price

PLATE, CLUTCH COVER, AIR INTAKE

11346-20E10-000 1134620E10000

Not available

SCREW

02112-75083-000 0211275083000

Not available

GEAR BOX COVER SET

11430-20810-000 1143020810000

Not available

BUSH(10.2X22.3X20)
BUSH

09319-10032-000 0931910032000

$12,97

Unit Price

CUSHION, GEAR BOX COVER UPPER

11485-20E00-000 1148520E00000

Not available

CUSHION, GEAR BOX COVER LOWER

11486-20E00-000 1148620E00000

Not available

BOLT

07120-06253-000

07120-0625A-000

$4,97

Unit Price

BOLT

07120-06403-000

07120-0640A-000

$5,97

Unit Price

PIN 11X16
PIN

04211-11169-000 0421111169000

$2,97

Unit Price

O RING (D:1.8, ID:134.4)

09280-00024-000 0928000024000

Not available

MAGNETO, GEAR BOX

11393-20E00-000 1139320E00000

$16,97

Unit Price

BOLT

01570-06123-000

01570-0612A-000

$3,97

Unit Price

BOLT

01550-08123-000

01550-0812B-000

$4,97

Unit Price

GASKET, 8.2X14X1

09168-08008-000

09168-08016-000

$2,97

Unit Price

BOLT

01550-06123-000

01550-0612B-000

$3,97

Unit Price

TACH GEAR WASHER
GASKET (6.2X11X1.2)

09168-06004-000 0916806004000

$2,97

Unit Price

COVER, CRANKSHAFT RH

11350-20E01-000 1135020E01000

Not available

GASKET, CRANKSHAFT COVER RH

11483-20E00-000 1148320E00000

Not available

SCREW (6X105)

09125-06005-000 0912506005000

Not available

02112-0635B
SCREW

02112-06353-000

Not available

SCREW

02112-06453-000

02112-0645B-000

$3,97

Unit Price

PIN 11X16
PIN

04211-11169-000 0421111169000

$2,97

Unit Price

DUCT, BELT COOLING

17160-20E00-000 1716020E00000

Not available

CLAMP

09402-38306-000

09402-38303-000

$10,97

Unit Price

CLAMP

09402-42306-000

09402-42303-000

$11,97

Unit Price

CLAMP
CLAMP (L:235)

09407-25401-000 0940725401000

$8,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE COVER (MODEL S) of your Suzuki BURGMAN 125 of BURGMAN. Let us know if you have any questions.
