MUFFLER

OIL PUMP FOR SUZUKI BURGMAN 125 2000

FUEL EVAP SYSTEM (E18)

Item numbers

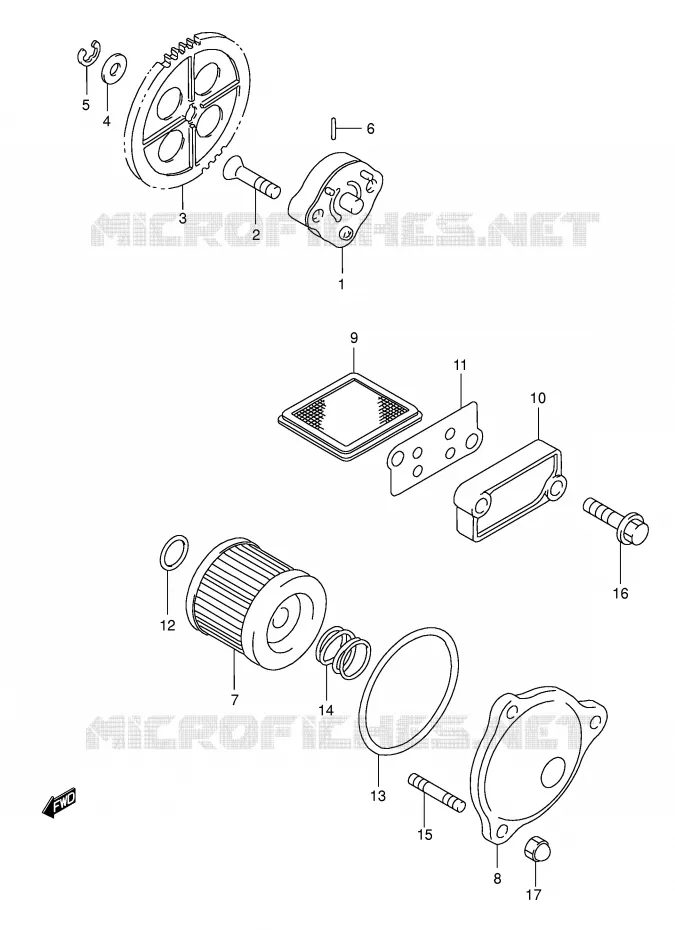

OIL PUMP Suzuki SCOOTER 125 BURGMAN 2000 AN125UY(E2)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
1
PUMP, OIL

16410-20E00-000   1641020E00000

1641020E00000
Not available
2
SCREW

02122-06253-000  

02122-0625B-000
 0212206253000

Unit Price

3
GEAR, OIL PUMP DRIVEN

16331-20E00-000   1633120E00000

1633120E00000
Not available
4
WASHER

16422-20E00-000   1642220E00000

1642220E00000

Unit Price

5
CIRCLIP

16423-20E00-000   1642320E00000

1642320E00000

Unit Price

6
PIN

16421-20E00-000   1642120E00000

1642120E00000

Unit Price

7
FILTER ASSY, ENGINE OIL
FILTER, ENGINE OIL

16510-05240-000   1651005240000

1651005240000

Unit Price

8
CAP, OIL FILTER

16512-18900-000   1651218900000

1651218900000

Unit Price

9
STRAINER, ENGINE OIL

16520-09402-000  

16520-09403-000
 1652009402000

Unit Price

10
CAP, OIL STRAINER

16523-20E00-000   1652320E00000

1652320E00000

Unit Price

11
GASKET, OIL STRAINER CAP

16524-20E00-000   1652420E00000

1652420E00000

Unit Price

12
ENG OIL PUMP O RING<br />O RING (D:1.9,ID:13)
ENG OIL PUMP O RING
O RING (D:1.9, ID:13)

09280-13004-000   0928013004000

0928013004000

Unit Price

13
O-RING, OIL FLT CAP
O RING (D:2.4, ID:52.6)

09280-54001-000   0928054001000

0928054001000

Unit Price

14
SPRING
SPRING

09440-18002-000   0944018002000

0944018002000

Unit Price

15
STUD 6X12

01421-06128-000  

09108-06128-000
 0142106128000

Unit Price

16
BOLT

01550-06253-000  

01550-0625A-000
 0155006253000

Unit Price

17
NUT

08313-10063-000  

08313-1006B-000
 0831310063000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Suzuki BURGMAN 125 of BURGMAN. Let us know if you have any questions.
