Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FUEL HOSE

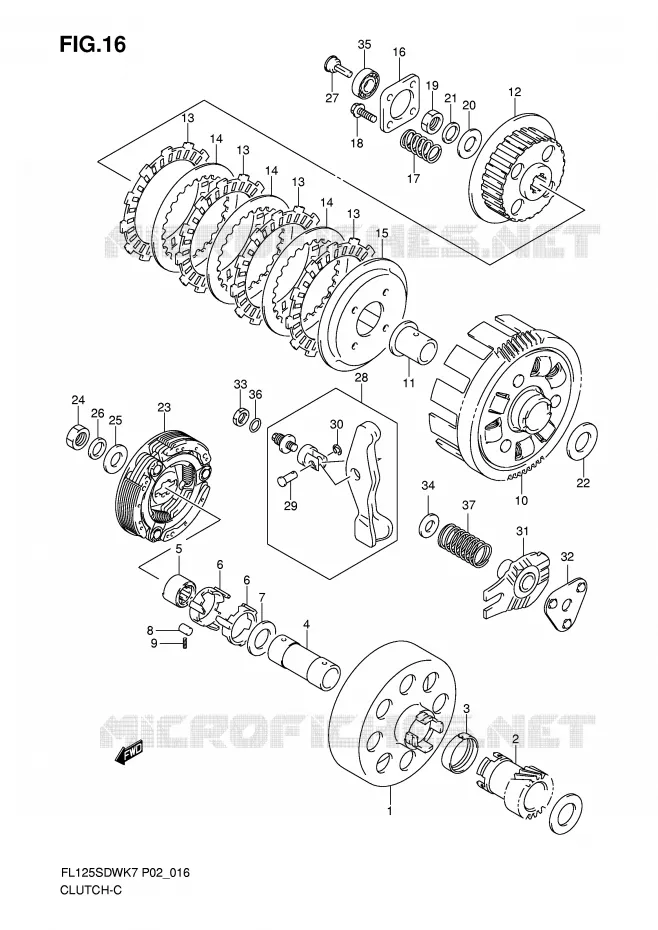

CLUTCH (MODEL K7) FOR SUZUKI FL 125 2007

CLUTCH (MODEL K8 / K9)

HOUSING, CLUTCH 1ST

21102-23F10-000 2110223F10000

Not available

GEAR, PRIMARY DRIVE

21111-20G00-000 2111120G00000

Not available

RING, PRIMARY DRIVE GEAR

21114-23F00-000 2111423F00000

Not available

SPACER, PRIMARY DRIVE

21119-23F30-000 2111923F30000

Not available

RACE, ONE WAY CLUTCH INR

21631-21D02-000 2163121D02000

Not available

RETAINER, ONE WAY CLUTCH

21652-23F00-000 2165223F00000

Not available

WASHER, PRI DRIVE GEAR

09181-18002-000 0918118002000

Not available

ROLLER(7X10)
ROLLER, ONE WAY CLUTCH

09261-07006-000 0926107006000

$3,97

Unit Price

SPRING
SPRING, ONE WAY CLUTCH

09440-02002-000 0944002002000

$3,97

Unit Price

GEAR ASSY, PRIMARY DRIVEN

21200-20G00-000 2120020G00000

Not available

SPACER, PRI DRIVEN GEAR

21251-23F20-000 2125123F20000

Not available

HUB, CLUTCH SLEEVE

21411-09G00-000 2141109G00000

Not available

PLATE, CLUTCH DRIVE

21441-23F00-000 2144123F00000

Not available

PLATE, CLUTCH DRIVEN

21451-21D40-000 2145121D40000

Not available

DISK, CLUTCH PRESSURE

21461-09G00-000 2146109G00000

Not available

PLATE, RELEASE

21465-09G00-000 2146509G00000

Not available

SPRING, CLUTCH

09440-18031-000 0944018031000

Not available

BOLT, CLUTCH SPRING

21482-09G00-000 2148209G00000

Not available

NUT
NUT, CLUTCH SLEEVE HUB

09140-14022-000 0914014022000

$4,97

Unit Price

WASHER 14X29X0.8
WASHER, CLUTCH SLEEVE HUB

09160-14016-000 0916014016000

$3,97

Unit Price

WASHER
WASHER, CLUTCH SLEEVE WAVE

09164-14011-000 0916414011000

$3,97

Unit Price

SPACER (17X32X6.0)

09180-17113-000 0918017113000

Not available

CLUTCH ASSY, SHOE

21501-20G50-000 2150120G50000

Not available

NUT
NUT, SHOE CLUTCH

09140-14022-000 0914014022000

$4,97

Unit Price

WASHER 14X29X0.8
WASHER (14X29X1.5)

09160-14016-000 0916014016000

$3,97

Unit Price

WASHER

09164-14011-000 0916414011000

$3,97

Unit Price

PIECE, CLUTCH PUSH

23121-09G00-000 2312109G00000

Not available

ARM, CLUTCH RELEASE

23220-16H00-000 2322016H00000

Not available

09208-07005-000 0920807005000

Not available

E RING

08332-1105A-000 083321105A000

$2,97

Unit Price

GUIDE, RELEASE BALL OUTER

23230-16H00-000 2323016H00000

Not available

BALL, CLUTCH RELEASE

23250-20G00-000 2325020G00000

Not available

NUT, CLUTCH RELEASE ADJUST

09140-12046-000 0914012046000

Not available

WASHER
WASHER, RELEASE ARM

09160-10039-000 0916010039000

$3,97

Unit Price

BEARING, PUSH PIECE THRUST

09262-15032-000 0926215032000

Not available

O RING (D:1.9, ID:11.8)

09280-12004-000 0928012004000

$7,97

Unit Price

SPRING, RELEASE ARM

09440-19025-000 0944019025000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH (MODEL K7) of your Suzuki ADDRESS 125 of FL. Let us know if you have any questions.
