TIMING

THROTTLE BODY FOR SUZUKI FL 125 2007

AIR FILTER

Item numbers

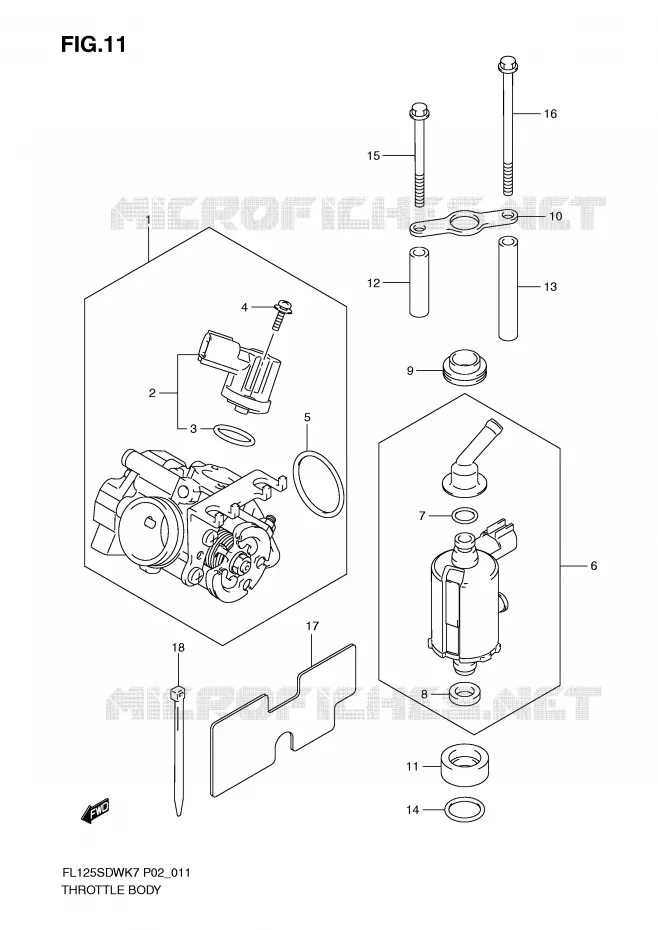

THROTTLE BODY Suzuki SCOOTER 125 FL 2007 FL125SDWK7(P2)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
BODY ASSY, THROTTLE

13400-16HA0-000   1340016HA0000

1340016HA0000
Not available
2
SOLENOID ASSY

13420-16HA0-000  

13420-16HA1-000
 1342016HA0000

Unit Price

3
DISCONTINUE
O RING

13425-33G00-000  

1342533G00000
Not available
4
SCREW
BOLT

13601-13G00-000   1360113G00000

1360113G00000

Unit Price

5
O RING

13295-16HA0-000   1329516HA0000

1329516HA0000
Not available
6
INJECTOR ASSY, FUEL

15710-16HA1-000   1571016HA1000

1571016HA1000
Not available
7
O RING

13374-32G00-000   1337432G00000

1337432G00000

Unit Price

8
CUSHION, FUEL INJECTOR LWR
SEAL

15712-32G00-000   1571232G00000

1571232G00000

Unit Price

9
DISCONTINUE
CUSHION

15713-32G00-000  

1571332G00000
Not available
10
HOLDER

15714-16HA0-000   1571416HA0000

1571416HA0000
Not available
11
INSULATOR

15715-32G00-000   1571532G00000

1571532G00000
Not available
12
SPACER, FR

15716-16HA0-000   1571616HA0000

1571616HA0000
Not available
13
SPACER, RR

15717-16HA0-000   1571716HA0000

1571716HA0000
Not available
14
O RING

09280-15014-000   0928015014000

0928015014000
Not available
15
BOLT
BOLT, HOLDER FR

01547-0655B-000   015470655B000

015470655B000

Unit Price

16
BOLT
BOLT, HOLDER RR

01547-0675B-000   015470675B000

015470675B000

Unit Price

17
SHEET, INJECTOR

15718-16HA0-000   1571816HA0000

1571816HA0000
Not available
18
CLIP<br />CLAMP
CLIP
CLAMP

13671-02F00-000   1367102F00000

1367102F00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the THROTTLE BODY of your Suzuki ADDRESS 125 of FL. Let us know if you have any questions.

Genuine parts for Suzuki 125 FL 2007

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS

Suzuki 125 FL 2007

Select your Suzuki 2007 model

125 FL 2007 FL125SDWK7(P2)

ADDRESS 125

Suzuki FL

Displacement: 125 cc
Year: 2007
Model code FL125SDWK7(P2)
