LEVERS - HANDGRIPS

FRONT FORK FOR SUZUKI FL 125 2007

STEERING STEM

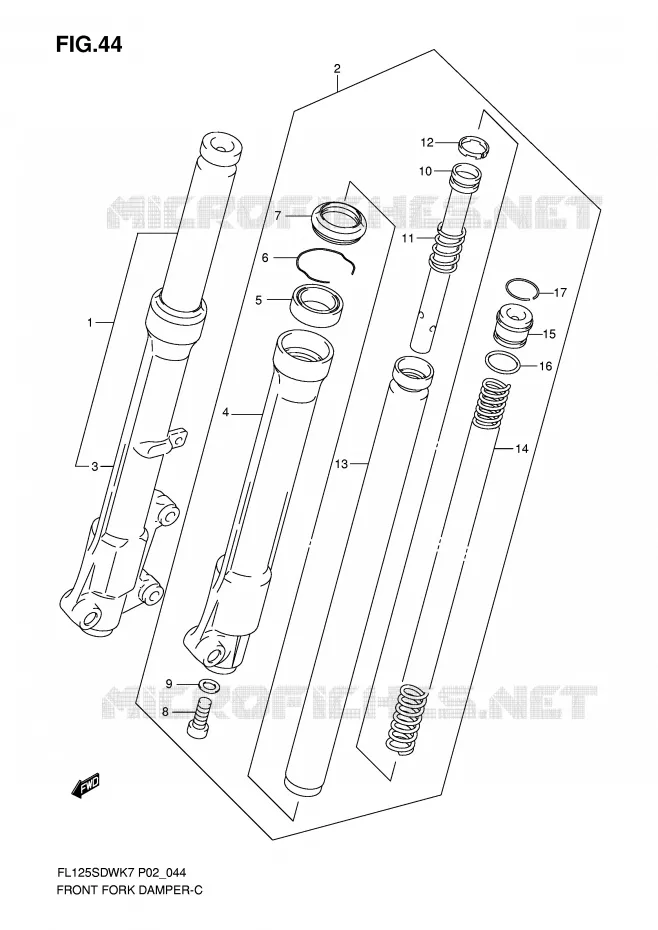

FRONT FORK Suzuki SCOOTER 125 FL 2007 FL125SDWK7(P2)
1
DAMPER ASSY, FRONT FORK RH

51103-16H00-000   5110316H00000

5110316H00000
Not available
2
DAMPER ASSY, FRONT FORK LH

51104-16H00-000   5110416H00000

5110416H00000
Not available
3
TUBE, OUTER RH

51131-16H00-000   5113116H00000

5113116H00000
Not available
4
TUBE, OUTER LH

51141-16H00-000   5114116H00000

5114116H00000
Not available
5
SEAL, OIL

51153-09G00-000   5115309G00000

5115309G00000
Not available
6
RING, SNAP

51156-09G00-000   5115609G00000

5115609G00000
Not available
7
SEAL, DUST

51571-09G00-000   5157109G00000

5157109G00000
Not available
8
BOLT

51147-06F10-000   5114706F10000

5114706F10000

Unit Price

9
GASKET<br />PACKING
GASKET
PACKING

51148-36011-000   5114836011000

5114836011000

Unit Price

10
CYLINDER

51194-16H00-000   5119416H00000

5119416H00000
Not available
11
SPRING

51177-47E01-000   5117747E01000

5117747E01000
Not available
12
RING, PISTON

51196-16H00-000   5119616H00000

5119616H00000
Not available
13
TUBE, INNER

51110-16H00-000   5111016H00000

5111016H00000
Not available
14
SPRING, FRONT

51171-16H00-000   5117116H00000

5117116H00000
Not available
15
CAP

51175-09G00-000   5117509G00000

5117509G00000
Not available
16
O RING

51117-09G00-000   5111709G00000

5111709G00000
Not available
17
RING, STOPPER

51169-09G00-000   5116909G00000

5116909G00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki ADDRESS 125 of FL. Let us know if you have any questions.
