FRONT FENDER (MODEL L0)

HANDLEBAR FAIRING (MODEL K8) FOR SUZUKI SIXTEEN 125 2010

HANDLEBAR FAIRING (MODEL L0)

Item numbers

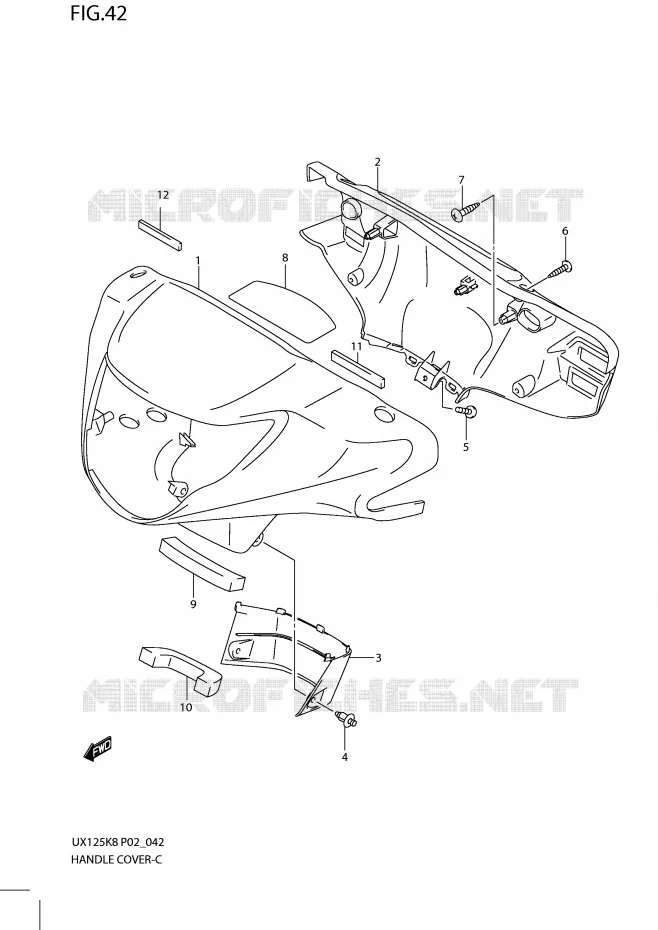

HANDLEBAR FAIRING (MODEL K8) Suzuki SCOOTER 125 SIXTEEN 2010 UX125L0(P02)
1
1
1
1
2
3
4
5
6
7
8
9
10
11
12
1
COVER, HANDLE FRONT (SILVER)

56311-20H01-YD8   5631120H01YD8

5631120H01YD8
Not available
1
COVER, HANDLE FRONT (BLUE)

56311-20H01-YKY   5631120H01YKY

5631120H01YKY
Not available
1
COVER, HANDLE FRONT (WHITE)

56311-20H01-YSU   5631120H01YSU

5631120H01YSU
Not available
1
COVER, HANDLE FRONT (BLACK)

56311-20H01-YSV   5631120H01YSV

5631120H01YSV
2
COVER, HANDLE REAR (GRAY)

56321-20H01-Y0J   5632120H01Y0J

5632120H01Y0J
Not available
3
COVER, HANDLE LOWER (GRAY)

56322-20H01-Y0J   5632220H01Y0J

5632220H01Y0J
Not available
4
CLIP
CLIP

09409-06314-000   0940906314000

0940906314000

Unit Price

5
SCREW<br />SCREW, LOWER
SCREW
SCREW, LOWER

02142-0512A-000   021420512A000

021420512A000

Unit Price

6
SCREW

03242-04169-000   0324204169000

0324204169000
Not available
7
SCREW<br />SCREWM UPPER
SCREW
SCREWM UPPER

03541-0516A-000   035410516A000

035410516A000

Unit Price

8
SHIELD, FRONT

56312-20H00-000   5631220H00000

5631220H00000
Not available
9
CUSHION, FRONT

56313-20H00-000   5631320H00000

5631320H00000
Not available
10
CUSHION, LOWER

56323-20H00-000   5632320H00000

5632320H00000
Not available
11
CUSHION, PANEL NO.1
CUSHION, REAR

94423-03H00-000   9442303H00000

9442303H00000

Unit Price

12
CUSHION, HANDLE COVER

56314-20H00-000   5631420H00000

5631420H00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HANDLEBAR FAIRING (MODEL K8) of your Suzuki SIXTEEN 125 of SIXTEEN. Let us know if you have any questions.

Genuine parts for Suzuki 125 SIXTEEN 2010

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 125 SIXTEEN 2010

Select your Suzuki 2010 model

125 SIXTEEN 2010 UX125L0(P02)

SIXTEEN 125

Suzuki SIXTEEN

Displacement: 125 cc
Year: 2010
Model code UX125L0(P02)
