Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

HANDLEBAR FAIRING (MODEL K8) REFER TO FIG. 42A (F- 5) FOR MODEL L0

HANDLEBAR FAIRING (MODEL L0) FOR SUZUKI SIXTEEN 125 2010

REAR FENDER

Item numbers

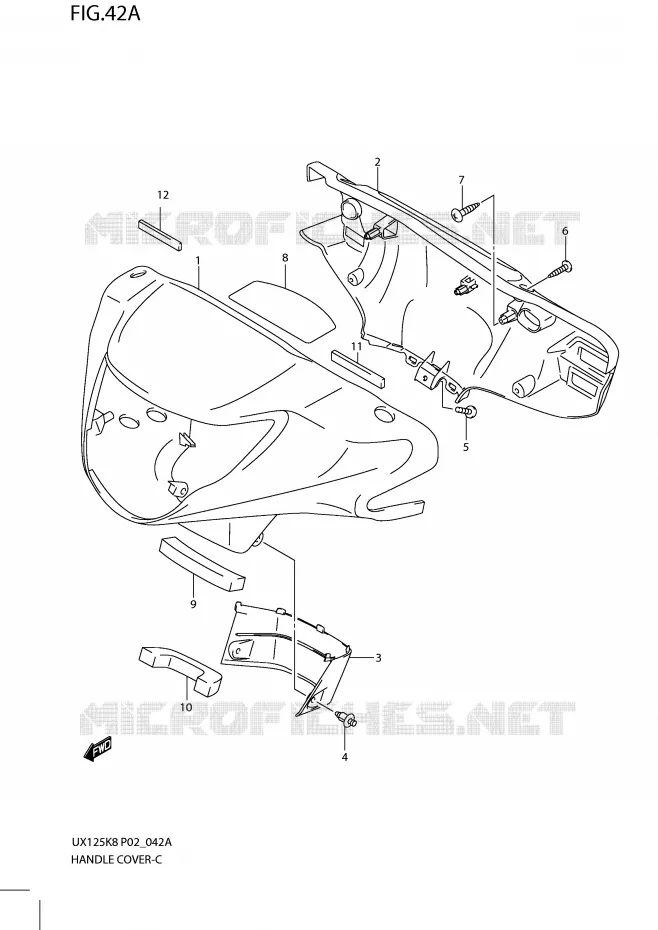

HANDLEBAR FAIRING (MODEL L0) Suzuki SCOOTER 125 SIXTEEN 2010 UX125L0(P02)
1
1
1
1
2
3
4
5
6
7
8
9
10
11
12
1
COVER, HANDLE FRONT (BLACK)

56311-20H01-YAY   5631120H01YAY

5631120H01YAY
Not available
1
COVER, HANDLE FRONT (WHITE)

56311-20H01-YC3   5631120H01YC3

5631120H01YC3
Not available
1
COVER, HANDLE FRONT (SILVER)

56311-20H01-YSY   5631120H01YSY

5631120H01YSY
Not available
1
COVER, HANDLE FRONT (BEIGE)

56311-20H01-YVY   5631120H01YVY

5631120H01YVY
Not available
2
COVER, HANDLE REAR (GRAY)

56321-20H01-Y0J   5632120H01Y0J

5632120H01Y0J
Not available
3
COVER, HANDLE LOWER (GRAY)

56322-20H01-Y0J   5632220H01Y0J

5632220H01Y0J
Not available
4
CLIP
CLIP

09409-06314-000   0940906314000

0940906314000

Unit Price

5
SCREW<br />SCREW, LOWER
SCREW
SCREW, LOWER

02142-0512A-000   021420512A000

021420512A000

Unit Price

6
SCREW

03242-04169-000   0324204169000

0324204169000
Not available
7
SCREW<br />SCREWM UPPER
SCREW
SCREWM UPPER

03541-0516A-000   035410516A000

035410516A000

Unit Price

8
SHIELD, FRONT

56312-20H00-000   5631220H00000

5631220H00000
Not available
9
CUSHION, FRONT

56313-20H00-000   5631320H00000

5631320H00000
Not available
10
CUSHION, LOWER

56323-20H00-000   5632320H00000

5632320H00000
Not available
11
CUSHION, PANEL NO.1
CUSHION, REAR

94423-03H00-000   9442303H00000

9442303H00000

Unit Price

12
CUSHION, HANDLE COVER

56314-20H00-000   5631420H00000

5631420H00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HANDLEBAR FAIRING (MODEL L0) of your Suzuki SIXTEEN 125 of SIXTEEN. Let us know if you have any questions.

Genuine parts for Suzuki 125 SIXTEEN 2010

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 125 SIXTEEN 2010

Select your Suzuki 2010 model

125 SIXTEEN 2010 UX125L0(P02)

SIXTEEN 125

Suzuki SIXTEEN

Displacement: 125 cc
Year: 2010
Model code UX125L0(P02)
