Parts diagram

TAIL LIGHT

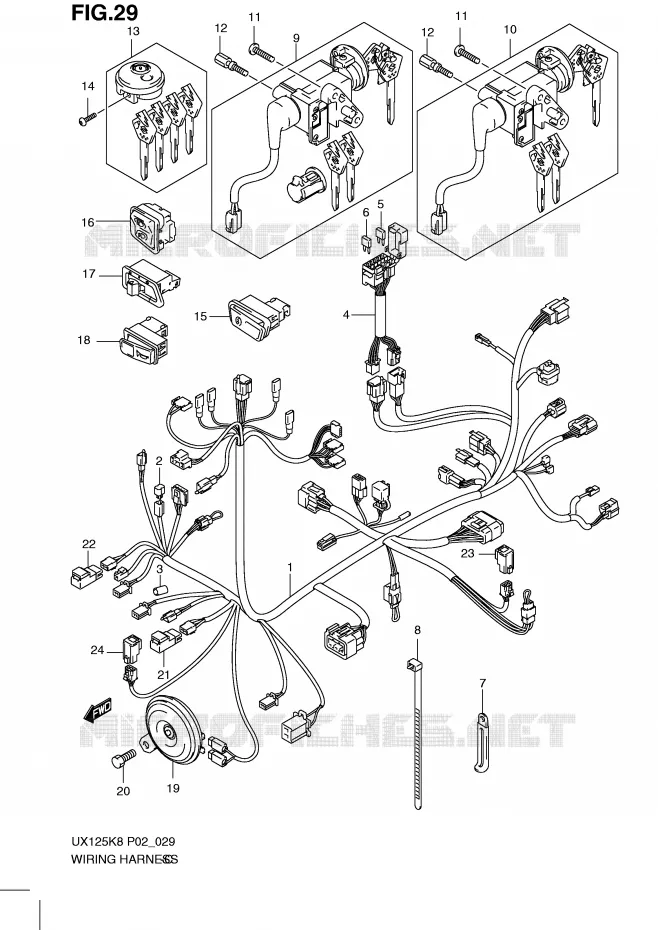

WIRING HARNESS FOR SUZUKI SIXTEEN 125 2010

* CATALOG PREFACE *

Item numbers

HARNESS, WIRING

36610-20H01-000 3661020H01000

Not available

RECTIFIER ASSY
DIODE

32800-16A00-000 3280016A00000

$28,97

Unit Price

COVER, CONNECTOR

36618-03H00-000 3661803H00000

Not available

HARNESS, WIRING NO.2

36620-20H00-000 3662020H00000

Not available

FUSE (10A)

09481-10501-000

Not available

FUSE (15A)

09481-15501-000 0948115501000

$2,97

Unit Price

CLAMP(L:65)

09404-06429-000

09404-06039-000

$3,97

Unit Price

CLAMP

D9425-00975-000 D942500975000

Not available

CLAMP

D9438-01885-000 D943801885000

Not available

CLAMP

D9448-02875-000 D944802875000

Not available

CLAMP

D9448-03705-000 D944803705000

Not available

CLAMP

D9477-02135-000 D947702135000

Not available

CLAMP

D9477-02995-000 D947702995000

Not available

LOCK SET

37000-20830-000 3700020830000

Not available

LOCK ASSY, STEERING SET

37100-20890-000 3710020890000

SCREW(6X20)
SCREW, STEERING LOCK

09139-06048-000 0913906048000

$2,97

Unit Price

SCREW, STEERING LOCK

09119-06084-000 0911906084000

Not available

SHUTTER, STEERING LOCK SET

37155-20810-000 3715520810000

Not available

TORX BOLT (4X8)

37159-16H00-000 3715916H00000

Not available

SWITCH ASSY, STARTER

37310-20H00-000 3731020H00000

Not available

SWITCH ASSY, DIMMER

37420-20H00-000 3742020H00000

Not available

SWITCH ASSY, TURNSIGNAL

37510-20H00-000 3751020H00000

Not available

SWITCH ASSY, HORN

37520-20H00-000 3752020H00000

Not available

HORN ASSY

38500-20H11-000 3850020H11000

Not available

HORN ASSY

38500-20H20-000 3850020H20000

Not available

BOLT

D1507-0812B-000 D15070812B000

Not available

38740-39G10
RELAY ASSY, HEAD LAMP

38740-39G00-000 3874039G00000

Not available

38740-39G10
RELAY ASSY, LOW BEAM

38740-39G00-000 3874039G00000

Not available

RELAY ASSY, SIDE STAND

38740-26E00-000

38740-26E01-000

$39,97

Unit Price

RELAY ASSY, SIDE STAND

38740-26E00-000

38740-26E01-000

$39,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS of your Suzuki SIXTEEN 125 of SIXTEEN. Let us know if you have any questions.
