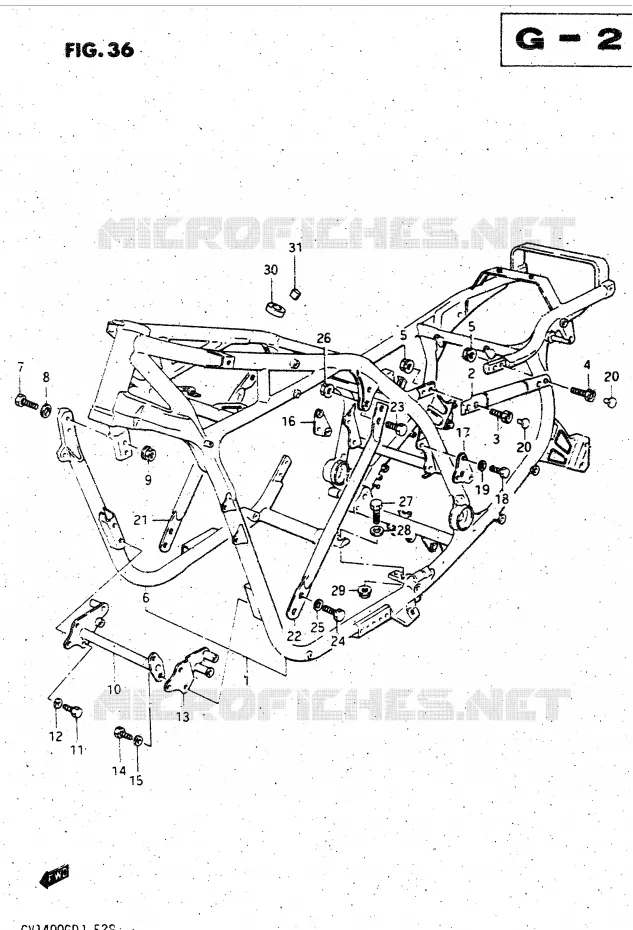

FRAME FOR SUZUKI CAVALCADE 1400 1987

FRONT FOOTREST

41100-24833-019
DISCONTINUED

41100-24830-019 4110024830019

Not available

41100-24833-019
DISCONTINUED

41100-24831-019 4110024831019

Not available

DISCONTINUE
FRAME SET (BLACK)

41100-24833-019 4110024833019

Not available

TUBE, FRAME UPPER (BLACK)

41640-24A00-019 4164024A00019

Not available

BOLT

07110-10255-000

07130-10253-000

$7,97

Unit Price

BOLT

07110-10305-000

07130-1030B-000

$7,97

Unit Price

NUT

08319-31105-000

08319-3110A-000

$3,97

Unit Price

TUBE, FRAME DOWN RH (BLACK)

41140-24A01-019 4114024A01019

Not available

BOLT, DOWN TUBE RH

09106-10033-000 0910610033000

Not available

WASHER

09164-10005-000

09164-10010-000

$8,97

Unit Price

NUT

08319-31105-000

08319-3110A-000

$3,97

Unit Price

PLATE, ENG MOUNTING (BLACK)

41910-24A00-019 4191024A00019

Not available

BOLT

01107-08165-000

01500-0816B-000

$4,97

Unit Price

WASHER, LOCK

08321-21084-000

08321-0108B-000

$3,97

Unit Price

PLATE, ENGINE MOUNT (BLACK)

41920-24A00-019 4192024A00019

Not available

BOLT

01107-08205-000

01500-08203-000

$3,97

Unit Price

WASHER, LOCK

08321-21084-000

08321-0108B-000

$3,97

Unit Price

PLATE, NO.3, RH (BLACK)

41950-24A00-019 4195024A00019

Not available

PLATE, NO.3, LH (BLACK)

41951-24A00-019 4195124A00019

Not available

BOLT

01107-08205-000

01500-08203-000

$3,97

Unit Price

WASHER, LOCK

08321-21084-000

08321-0108B-000

$3,97

Unit Price

CAP

43575-34500-000 4357534500000

$3,97

Unit Price

41630-24A01-019
DISCONTINUED

41630-24A00-019 4163024A00019

Not available

DISCONTINUE
LEG, FRAME RH (BLACK)

41630-24A01-019 4163024A01019

Not available

41620-24A01-019
DISCONTINUED

41620-24A00-019 4162024A00019

Not available

DISCONTINUE
LEG, FRAME LH (BLACK)

41620-24A01-019 4162024A01019

Not available

BOLT, UPPER

01107-10255-000 0110710255000

Not available

BOLT, LOWER

09104-10033-000 0910410033000

Not available

WASHER, LOCK

08321-21104-000

08321-0110B-000

$3,97

Unit Price

NUT

08319-31105-000

08319-3110A-000

$3,97

Unit Price

BOLT(10X33)
BOLT, DOWN TUBE BRIDGE

09106-10019-000 0910610019000

$6,97

Unit Price

WASHER

09164-10005-000

09164-10010-000

$8,97

Unit Price

NUT

08319-31105-000

08319-3110A-000

$3,97

Unit Price

CUSHION, FRAME COVER NO.1

47161-24A00-000 4716124A00000

Not available

51827-12E00
CUSHION FR CVR NO. 2

47162-24A00-000 4716224A00000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Suzuki CAVALCADE 1400 of CAVALCADE. Let us know if you have any questions.
