TAIL LIGHT (OPTIONAL)

CORNERING LAMP SET (OPTIONAL) FOR SUZUKI CAVALCADE 1400 1987

* COLOR CHART *

DISCONTINUED

35500-24821-000 3550024821000

Not available

LAMP ASSY, CORNERING RH

35510-24A01-000 3551024A01000

Not available

LAMP ASSY, CORNERING LH

35530-24A01-000 3553024A01000

Not available

..SOCKET

35538-24A01-000 3553824A01000

Not available

BULB (12V, 35W H3)

09471-12123-000 0947112123000

Not available

SPRING

35512-24A00-000 3551224A00000

Not available

SCREW

02112-04206-000

02112-04203-000

$2,97

Unit Price

WASHER, LOCK

08321-21046-000

08321-0104A-000

$2,97

Unit Price

WASHER

08322-21046-000

08322-0104B-000

$0,97

Unit Price

SPACER

09180-04011-000 0918004011000

Not available

CUSHION(8X18X5.8)

09320-06017-000

09320-08516-000

$4,97

Unit Price

RELAY ASSY

38730-24A00-000

38740-24X50-000

$43,97

Unit Price

BRACKET, RELAY

38731-24A00-000 3873124A00000

Not available

36859-24A81
DISCONTINUED

36859-24A80-000 3685924A80000

Not available

SWITCH ASSY, IGNITION

37100-24A10-000 3710024A10000

Not available

HOSE, RADIATOR OUT

17852-24A10-000 1785224A10000

Not available

COVER, CORNERING LAMP RH

94261-24A00-000 9426124A00000

Not available

COVER, CORNERING LAMP LH

94271-24A00-000 9427124A00000

Not available

DISCONTINUE
CUSHION

94268-24A00-000 9426824A00000

Not available

COVER, LOWER RH

94240-24A10-000 9424024A10000

Not available

COVER, LOWER LH

94250-24A10-000 9425024A10000

Not available

5 X 8 CROSS SCREW
SCREW

02142-05087-000 0214205087000

$2,97

Unit Price

SCREW (5X20)
SCREW

02142-05207-000 0214205207000

$2,97

Unit Price

CUSHION

09320-07009-000 0932007009000

Not available

SPACER

09180-05018-000

09180-05048-000

$3,97

Unit Price

CUSHION

09320-07005-000 0932007005000

$4,97

Unit Price

WASHER, 5.5X14X1.20

09160-05036-000

09160-05048-000

$2,97

Unit Price

TK REAR MOUNT RUBBER
CUSHION

09320-09002-000 0932009002000

$6,97

Unit Price

FENDER FRONT SPACER
SPACER (6.1X9X7.5)

09180-06038-000 0918006038000

$2,97

Unit Price

WASHER

09160-05011-000

09160-05501-000

$3,97

Unit Price

NUT

08316-26056-000

08316-2005A-000

$3,97

Unit Price

COVER, ACCESSORY BAR RH

94280-24A10-000 9428024A10000

Not available

COVER, ACCESSORY BAR LH

94290-24A10-000 9429024A10000

Not available

SCREW

09125-05042-000

02142-0510A-000

$2,97

Unit Price

CLAMP(L:80)

09404-06417-000

09404-06036-000

$3,97

Unit Price

CAP, ACCESSORY BAR

95674-24A00-000 9567424A00000

Not available

BOLT

01107-08358-000

01550-0835B-000

$5,97

Unit Price

BOLT
BOLT, LOWER

01204-08307-000 0120408307000

$3,97

Unit Price

WASHER

08322-11088-000

08322-01087-000

$3,97

Unit Price

WASHER

09160-08098-000 0916008098000

Not available

BAR, ACCESSORY

94200-24820-000 9420024820000

Not available

DISCONTINUE
BUSHING

09319-08028-000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

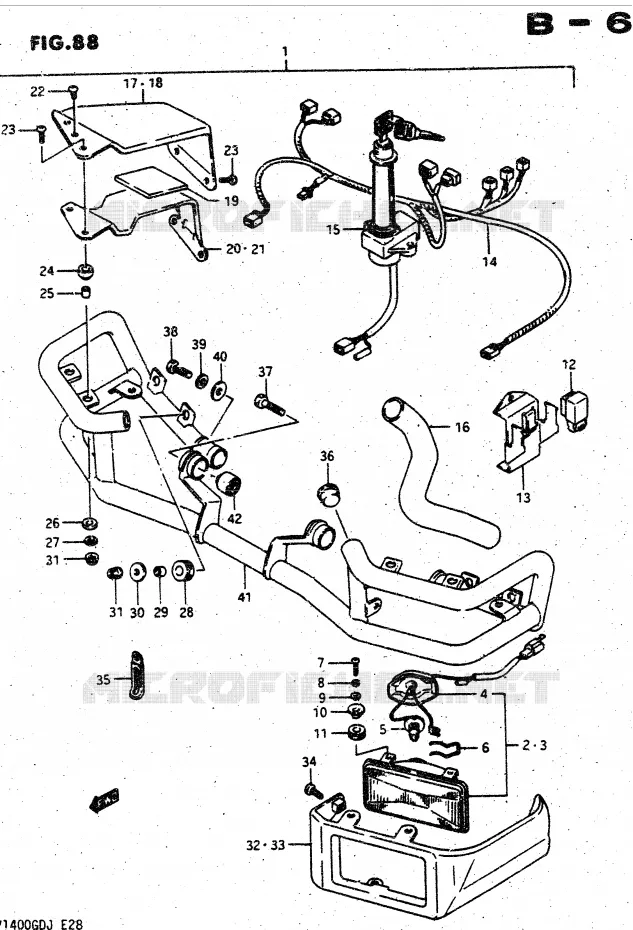

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CORNERING LAMP SET (OPTIONAL) of your Suzuki CAVALCADE 1400 of CAVALCADE. Let us know if you have any questions.
