TAIL LIGHT FOR SUZUKI BOULEVARD 1500 2009

WIRING HARNESS

Item numbers

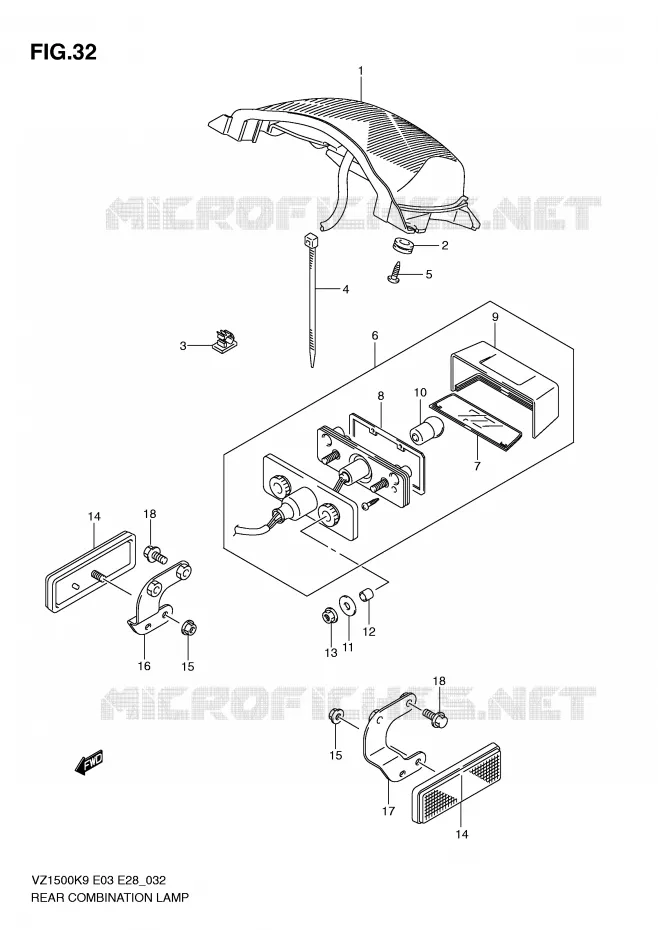

TAIL LIGHT Suzuki MOTO 1500 BOULEVARD 2009 VZ1500K9(E3/E28)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
15
16
17
18
18
1
LAMP ASSY, RR COMBINATION
LAMP ASSY, REAR COMB

35710-40H00-000   3571040H00000

3571040H00000

Unit Price

2
CUSHION, REAR COMB LAMP

09320-10054-000  

09320-10073-000
 0932010054000

Unit Price

3
CLAMP
CLAMP

09403-07315-000  

09403-04310-000
 0940307315000

Unit Price

4
CLAMP<br />CLAMP (L:145)
CLAMP
CLAMP (L:145)

09407-14407-000   0940714407000

0940714407000

Unit Price

5
SCREW
SCREW, REAR COMB

03541-0512A-000   035410512A000

035410512A000

Unit Price

6
LAMP ASSY, LICENSE

35910-41G00-000  

35910-41G02-000
 3591041G00000

Unit Price

7
LENS, LICENSE LAMP

35912-41G00-000  

35912-41G01-000
 3591241G00000

Unit Price

8
GASKET

35913-41G00-000   3591341G00000

3591341G00000

Unit Price

9
COVER, LICENSE LAMP

35917-41G00-000   3591741G00000

3591741G00000

Unit Price

10
BULB(12V10W)
BULB (12V5W, BF150-401660A)

09471-12140-000  

0947112140000
Not available
11
WASHER 6.5X10X1.2<br />WASHER, LICENSE LAMP
WASHER 6.5X10X1.2
WASHER, LICENSE LAMP

09160-06077-000   0916006077000

0916006077000

Unit Price

12
SPACER, 6.5X9X8
SPACER, LICENSE LAMP

09180-06261-000   0918006261000

0918006261000

Unit Price

13
NUT
NUT, LICENSE LAMP

08316-1006A-000   083161006A000

083161006A000

Unit Price

14
REFLECTOR ASSY,RR<br />REFLECTOR ASSY, REAR SIDE
REFLECTOR ASSY, RR
REFLECTOR ASSY, REAR SIDE

35970-07F01-000   3597007F01000

3597007F01000

Unit Price

15
NUT<br />NUT, REAR SIDE RR
NUT
NUT, REAR SIDE RR

08316-1005A-000   083161005A000

083161005A000

Unit Price

16
BRACKET, RR SIDE RR, R

35975-40H00-000   3597540H00000

3597540H00000

Unit Price

17
BRACKET, RR SIDE RR, L

35976-40H00-000   3597640H00000

3597640H00000

Unit Price

18
SCREW<br />SCREW, RR SIDE RR BRK
SCREW
SCREW, RR SIDE RR BRK

02162-0612A-000   021620612A000

021620612A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT of your Suzuki of BOULEVARD. Let us know if you have any questions.

Genuine parts for Suzuki 1500 BOULEVARD 2009
