Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

HANDLEBAR

LEVERS - HANDGRIPS FOR SUZUKI BOULEVARD 1500 2009

FRONT FORK

Item numbers

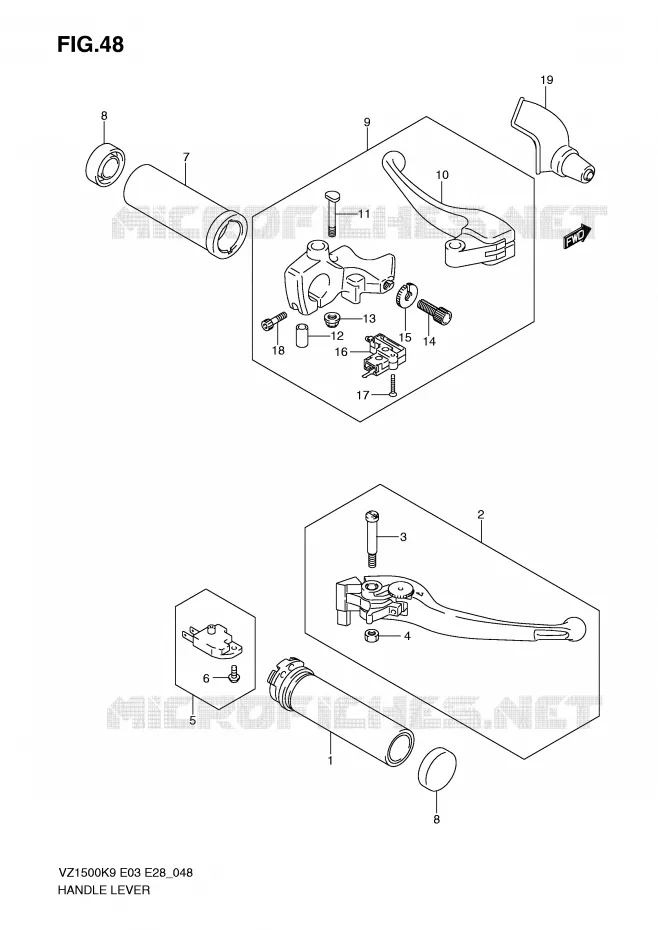

LEVERS - HANDGRIPS Suzuki MOTO 1500 BOULEVARD 2009 VZ1500K9(E3/E28)
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
1
GRIP, THROTTLE

57110-26D10-000  

57110-26D11-000
 5711026D10000

Unit Price

2
LEVER ASSY, BRAKE

57300-48G10-000   5730048G10000

5730048G10000

Unit Price

3
BOLT, PIVOT

57431-48G00-000   5743148G00000

5743148G00000

Unit Price

4
NUT
NUT

08319-2106A-000   083192106A000

083192106A000

Unit Price

5
SWITCH ASSY, STOP

57460-17C11-000  

57460-14J02-000
 5746017C11000

Unit Price

6
SCREW,WITH WASHER(4X12)<br />SCREW
SCREW, WITH WASHER(4X12)
SCREW

57465-17C00-000   5746517C00000

5746517C00000

Unit Price

7
GRIP, L

57210-26D00-000  

57210-26D01-000
 5721026D00000

Unit Price

8
CAP, GRIP END

57216-38A00-000   5721638A00000

5721638A00000

Unit Price

9
LEVER ASSY, CLUTCH

57500-48G11-000  

57500-48G14-000
 5750048G11000

Unit Price

10
LEVER, CLUTCH

57621-48G11-000   5762148G11000

5762148G11000

Unit Price

11
BOLT, LEVER PIVOT
BOLT, PIVOT

57531-48G00-000   5753148G00000

5753148G00000

Unit Price

12
COLLAR
SPACER

57623-48G00-000   5762348G00000

5762348G00000

Unit Price

13
NUT
NUT

08319-3106B-000   083193106B000

083193106B000

Unit Price

14
ADJUSTER, WIRE

57441-08C00-000  

57441-08C01-000
 5744108C00000

Unit Price

15
NUT, LOCK

57442-08C00-000  

57442-08C01-000
 5744208C00000

Unit Price

16
SWITCH ASSY, CLUTCH
SWITCH, CLUTCH

57560-05A10-000   5756005A10000

5756005A10000

Unit Price

17
57562-41G01
SCREW

57562-41G00-000  

5756241G00000
Not available
18
BOLT

07130-0620A-000  

07130-0620B-000
 071300620A000

Unit Price

19
COVER, CLUTCH LEVER

57541-48G10-000  

57541-48G11-000
 5754148G10000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the LEVERS - HANDGRIPS of your Suzuki of BOULEVARD. Let us know if you have any questions.

Genuine parts for Suzuki 1500 BOULEVARD 2009

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 1500 BOULEVARD 2009

Select your Suzuki 2009 model

1500 BOULEVARD 2009 VZ1500K9(E3/E28)

Suzuki BOULEVARD

Displacement: 1500 cc
Year: 2009
Model code VZ1500K9(E3 / E28)
