Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TAIL LIGHT

WIRING HARNESS FOR SUZUKI BOULEVARD 1500 2009

SWITCHES

Item numbers

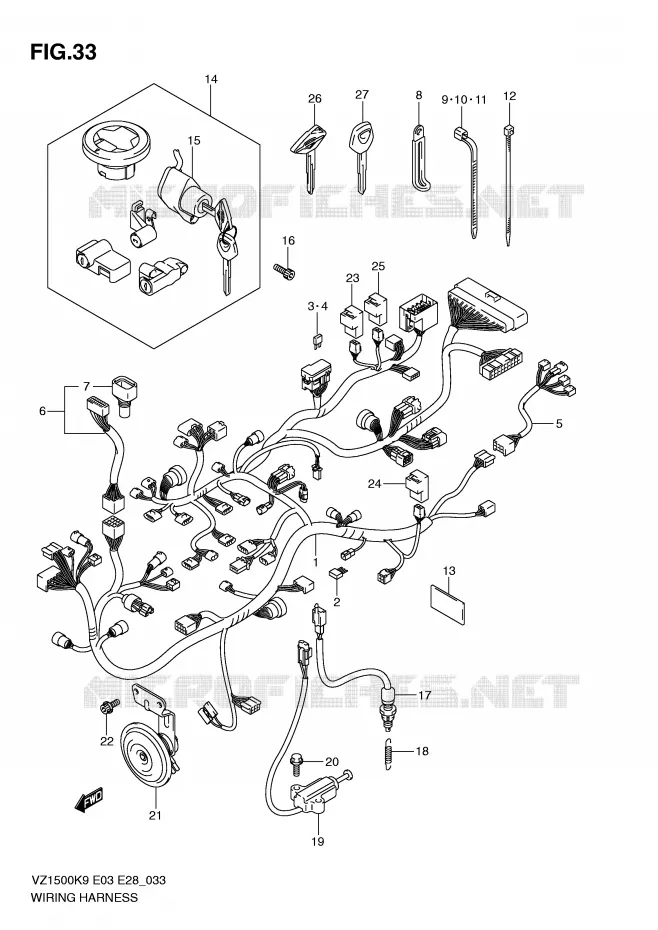

WIRING HARNESS Suzuki MOTO 1500 BOULEVARD 2009 VZ1500K9(E3/E28)
1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
DISCONTINUE
HARNESS, WIRING

36610-40H31-000   3661040H31000

3661040H31000
Not available
1
DISCONTINUE
HARNESS, WIRING

36610-40H41-000   3661040H41000

3661040H41000
Not available
1
DISCONTINUE
HARNESS, WIRING

36610-40H80-000   3661040H80000

3661040H80000
Not available
2
DIODE
DIODE

36611-38A00-000  

36611-38A10-000
 3661138A00000

Unit Price

3
FUSE (10A)
FUSE (10A)

09481-10501-000  

0948110501000
Not available
4
FUSE (15A)

09481-15501-000   0948115501000

0948115501000

Unit Price

5
DISCONTINUE
WIRE, REAR CORD

36858-40H00-000  

3685840H00000
Not available
6
WIRE, METER LEAD

36859-40H00-000  

3685940H00000
Not available
7
COVER,SPEEDOMETER COUPLER<br />BOOT
COVER, SPEEDOMETER COUPLER
BOOT

36618-33E00-000   3661833E00000

3661833E00000

Unit Price

8
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

9
BAND,WIRING HARNESS<br />CLAMP (L:125)
BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000   0940714403000

0940714403000

Unit Price

10
CLAMP

09407-19401-000  

09407-22403-000
 0940719401000

Unit Price

11
BAND, WIRING HARNESS

09407-10403-000  

09407-11401-000
 0940710403000

Unit Price

12
CLAMP<br />CLAMP (L:145)
CLAMP
CLAMP (L:145)

09407-14407-000   0940714407000

0940714407000

Unit Price

13
PROTECTOR(20X90)X1.0<br />PROTECTOR (20X90X1)
PROTECTOR(20X90)X1.0
PROTECTOR (20X90X1)

33652-26E00-000   3365226E00000

3365226E00000

Unit Price

14
37000-40832
LOCK SET

37000-40831-000   3700040831000

3700040831000
Not available
15
37110-40H32
SWITCH ASSY, IGNITION

37110-40H31-000   3711040H31000

3711040H31000
Not available
16
BOLT

07130-0616A-000  

07130-0616B-000
 071300616A000

Unit Price

17
SWITCH ASSY, STOP LAMP
SWITCH ASSY, STOP LAMP

37740-19F00-000   3774019F00000

3774019F00000

Unit Price

18
SPRING
SPRING, STOP LAMP

09443-06077-000   0944306077000

0944306077000

Unit Price

19
SWITCH ASSY, SIDE STAND

37840-22H00-000  

37840-22H01-000
 3784022H00000

Unit Price

20
BOLT

01547-0625A-000  

01547-0625B-000
 015470625A000

Unit Price

21
HORN ASSY

38500-40H00-000   3850040H00000

3850040H00000

Unit Price

22
BOLT<br />BOLT, HORN
BOLT
BOLT, HORN

07120-0612B-000   071200612B000

071200612B000

Unit Price

23
RELAY ASSY<br />RELAY ASSY, FUEL PUMP
RELAY ASSY
RELAY ASSY, FUEL PUMP

38740-24X50-000   3874024X50000

3874024X50000

Unit Price

24
RELAY ASSY<br />RELAY ASSY, FAN MOTOR
RELAY ASSY
RELAY ASSY, FAN MOTOR

38740-24X50-000   3874024X50000

3874024X50000

Unit Price

25
RELAY ASSY
RELAY ASSY, HEADLAMP

38740-24A00-000   3874024A00000

3874024A00000

Unit Price

26
KEY, BLANK (BOULEVARD)

37146-10F00-000   3714610F00000

3714610F00000

Unit Price

27
KEY, BLANK

37146-48E10-000   3714648E10000

3714648E10000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS of your Suzuki of BOULEVARD. Let us know if you have any questions.

Genuine parts for Suzuki 1500 BOULEVARD 2009

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 1500 BOULEVARD 2009

Select your Suzuki 2009 model

1500 BOULEVARD 2009 VZ1500K9(E3/E28)

Suzuki BOULEVARD

Displacement: 1500 cc
Year: 2009
Model code VZ1500K9(E3 / E28)
