Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRAME FOR SUZUKI INTRUDER 1500 2002

FOOTREST

Item numbers

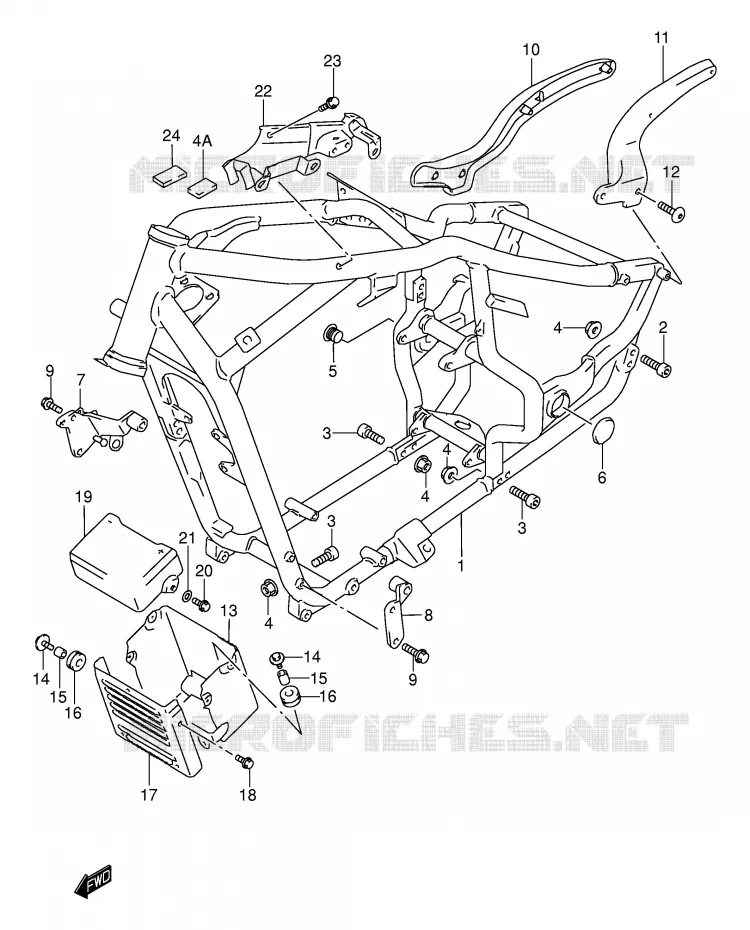

FRAME Suzuki MOTO 1500 INTRUDER 2002 VL1500K2(E2)
1
1
2
3
3
3
4
4
4
4
4A
5
6
7
7
8
9
9
10
10
10
11
11
11
12
12
12
12
13
13
14
14
15
15
16
16
17
18
19
19
20
20
21
22
23
23
24
1
FRAME (BLACK)

41100-10F01-019   4110010F01019

4110010F01019
Not available
1
DISCONTINUE
FRAME (BLACK)

41100-10F20-019   4110010F20019

4110010F20019
Not available
2
BOLT

07130-10253-000  

07130-1025B-000
 0713010253000

Unit Price

3
BOLT

07130-10353-000  

07130-1035B-000
 0713010353000

Unit Price

4
NUT

08319-31103-000  

08319-3110A-000
 0831931103000

Unit Price

4A
CUSHION, CHAIN CASE
CUSHION

61374-08010-000   6137408010000

6137408010000

Unit Price

5
CAP, FRAME U-LOCK HOLE

41898-10F00-000  

41898-10F01-000
 4189810F00000

Unit Price

6
CAP, FRAME PIVOT, R
CAP, PIVOT RH

41899-10F00-000   4189910F00000

4189910F00000

Unit Price

7
PLATE, ENGINE MOUNT RH

41910-10F00-000   4191010F00000

4191010F00000
Not available
7
DISCONTINUE
PLATE, ENGINE MOUNT RH

41910-10F10-000   4191010F10000

4191010F10000
Not available
8
DISCONTINUE

41920-10F00-000  

4192010F00000
Not available
9
BOLT

01580-08303-000   0158008303000

0158008303000
Not available
10
DISCONTINUE

41610-10F00-000  

4161010F00000
Not available
11
DISCONTINUE

41620-10F00-000  

4162010F00000
Not available
12
BOLT

09139-10003-000   0913910003000

0913910003000

Unit Price

12
DISCONTINUE
BOLT

41629-10F00-000   4162910F00000

4162910F00000
Not available
13
HOLDER, BATTERY

41540-10F00-000  

41540-10F01-000
 4154010F00000

Unit Price

14
BOLT
BOLT

09116-06168-000   0911606168000

0911606168000

Unit Price

15
SPACER, 6.5X9X8
SPACER

09180-06261-000   0918006261000

0918006261000

Unit Price

16
CUSHION (8.5X20X8)
CUSHION (8.5X20X8)

09320-08021-000  

09320-08510-000
 0932008021000

Unit Price

17
HOLDER, BATTERY FR
HOLDER, BATTERY FRONT

41548-10F00-000   4154810F00000

4154810F00000

Unit Price

18
SCREW

02142-06083-000  

02142-0608A-000
 0214206083000

Unit Price

19
COVER, BATTERY UPR

41549-10F00-000  

41549-10F02-000
 4154910F00000

Unit Price

20
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

20
BOLT,6X12
BOLT, 6X12

63161-43E00-000  

09111-06107-000
 6316143E00000

Unit Price

21
WASHER
WASHER

09169-06071-000   0916906071000

0916906071000

Unit Price

22
DISCONTINUE

47410-10F00-000  

4741010F00000
Not available
23
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

23
01550-0616A
BOLT

01550-06163-000  

0155006163000
Not available
24
CUSHION

11179-45D00-000   1117945D00000

1117945D00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
