Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRONT CALIPER (MODEL X / Y / K1) REFER TO FIG.52B(K-15) FOR MODEL K2/K3/K4

FRONT CALIPER (MODEL K2 / K3 / K4) FOR SUZUKI INTRUDER 1500 2002

FRONT MASTER CYLINDER (MODEL W / X / Y / K1) REFER TO FIG.53A(L- 2) FOR MODEL K2/K3/K4

Item numbers

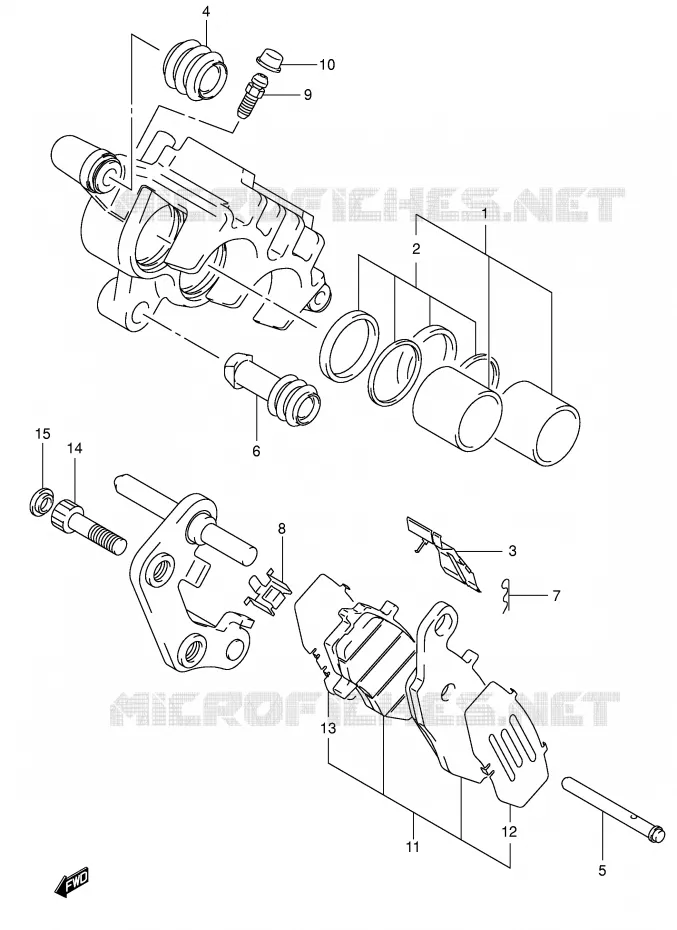

FRONT CALIPER (MODEL K2/K3/K4) Suzuki MOTO 1500 INTRUDER 2002 VL1500K2(E2)
1
2
3
3
4
5
6
7
8
9
10
11
11
12
13
14
15
1
PISTON SET

59300-33831-000  

59301-20820-000
 5930033831000

Unit Price

2
SEAL SET, PISTON
SEAL SET, PISTON

59300-33841-000   5930033841000

5930033841000

Unit Price

3
SPRING, PAD, R
SPRING, PAD, R

59115-33D00-000   5911533D00000

5911533D00000

Unit Price

3
SPRING,PAD LH<br />SPRING, PAD, L
SPRING, PAD LH
SPRING, PAD, L

59315-33D00-000   5931533D00000

5931533D00000

Unit Price

4
BOOT,AXLE<br />BOOT
BOOT, AXLE
BOOT

59112-44B00-000   5911244B00000

5911244B00000

Unit Price

5
PIN,PAD<br />PIN
PIN, PAD
PIN

59141-44B01-000   5914144B01000

5914144B01000

Unit Price

6
INSULATOR, AXLE
INSULATOR, AXLE

59313-36500-000   5931336500000

5931336500000

Unit Price

7
BRAKE PAD PIN CLIP<br />CLIP, PAD PIN
BRAKE PAD PIN CLIP
CLIP, PAD PIN

69142-45000-000   6914245000000

6914245000000

Unit Price

8
GUIDE, PAD
GUIDE, PAD

59116-33D00-000   5911633D00000

5911633D00000

Unit Price

9
BLEEDER
BLEEDER

59121-18410-000   5912118410000

5912118410000

Unit Price

10
CAP,BLEEDER PLUG<br />CAP
CAP, BLEEDER PLUG
CAP

55156-66310-000   5515666310000

5515666310000

Unit Price

11
PAD & SHIM SET
PAD & SHIM SET, LH

59302-33870-000   5930233870000

5930233870000

Unit Price

11
PAD & SHIM SET
PAD & SHIM SET, RH

59102-33880-000  

5910233880000
Not available
12
SHIM,PAD<br />SHIM, PAD NO.1
SHIM, PAD
SHIM, PAD NO.1

59171-33D00-000   5917133D00000

5917133D00000

Unit Price

13
SHIM, PAD NO.2

59172-33D00-000   5917233D00000

5917233D00000

Unit Price

14
BOLT

09106-10038-000   0910610038000

0910610038000

Unit Price

15
CAP

09250-08014-000   0925008014000

0925008014000

Unit Price

99x
CALIPER ASSY, FR, R
CALIPER ASSY, FRONT RH

59100-33DD0-999   5910033DD0999

5910033DD0999

Unit Price

99x
DISCONTINUE
CALIPER ASSY, FRONT LH

59300-33DD0-999   5930033DD0999

5930033DD0999
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
