ANTI POLLUTION SYSTEM (MODEL K1 / K2 / K3 / K4 E24,MODEL K1 / K2 P37)

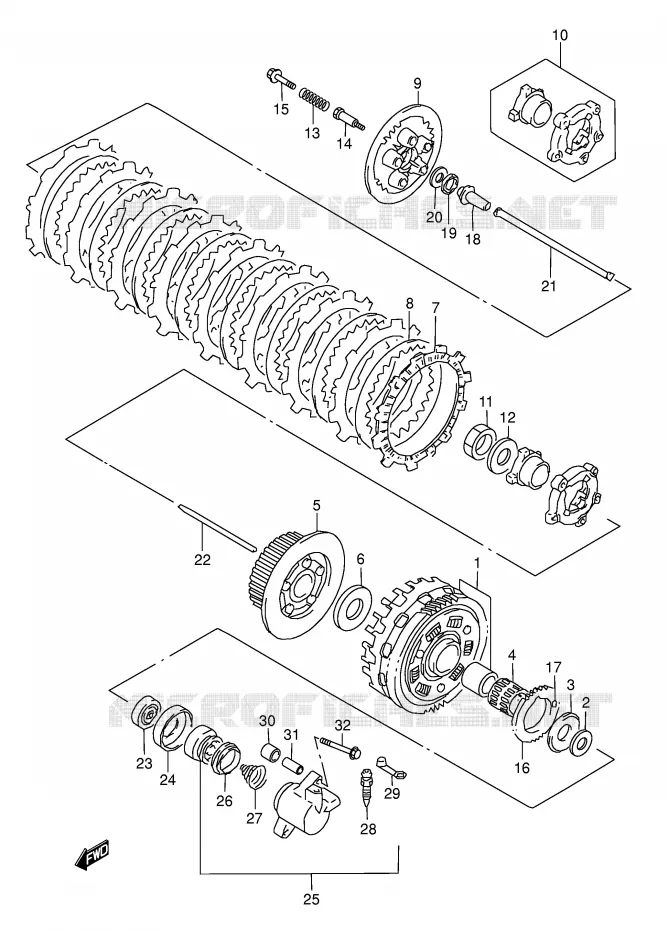

CLUTCH FOR SUZUKI INTRUDER 1500 2002

TRANSMISSION

Item numbers

GEAR ASSY, PRI DRIVEN
GEAR, PRIMARY DRIVEN (NT:76)

21200-10810-000 2120010810000

$666,97

Unit Price

WASHER(25X38X2.5)
WASHER, INNER (25X38X2.5)

09160-25066-000 0916025066000

$10,97

Unit Price

WASHER(25X54X2.5)
WASHER, THRUST (25.1X54X2.5)

09160-25037-000 0916025037000

$14,97

Unit Price

ROLLER BEARING 35X40
BEARING (35X40X35.8)

09263-35017-000 0926335017000

$59,97

Unit Price

HUB, CLUTCH SLEEVE
HUB, SLEEVE

21410-10F00-000 2141010F00000

$205,97

Unit Price

WASHER SLEEVE HUB
WASHER (25X50X2.5)

09160-25056-000 0916025056000

$20,97

Unit Price

PLATE, CLUTCH DRIVE

21441-31D20-000 2144131D20000

$41,97

Unit Price

PLATE, CLUTCH DRIVEN NO.1
PLATE, CLUTCH DRIVEN

21451-44B00-000 2145144B00000

$14,97

Unit Price

DISC, CLUTCH PRESSURE

21462-10F00-000 2146210F00000

$94,97

Unit Price

CAM SET, CLUTCH

21610-10F00-000 2161010F00000

$307,97

Unit Price

NUT
NUT, CLUTCH SLEEVE HUB

09159-24010-000 0915924010000

$22,97

Unit Price

WASHER CL SLEEVE HUB
WASHER, CLUTCH SLEEVE

09164-24006-000 0916424006000

$6,97

Unit Price

SPRING, CLUTCH

21413-10F00-000

21413-10F10-000

$13,97

Unit Price

BOLT, CLUTCH SPRING SUPPORT
BOLT, CLUTCH SPRING SPRT

21411-02F00-000 2141102F00000

$17,97

Unit Price

BOLT, CLUTCH SPRING

21482-13E00-000 2148213E00000

$5,97

Unit Price

GEAR, OIL PUMP DRIVE
GEAR, OIL PUMP DRIVE (NT:40)

16321-38B00-000 1632138B00000

$85,97

Unit Price

OIL PUMP DRIVEN PIN
PIN

09261-06002-000 0926106002000

$2,97

Unit Price

PIECE, CLUTCH PUSH
PIECE, PUSH

23121-38B00-000 2312138B00000

$35,97

Unit Price

BEARING (15X28X2)

09263-15003-000 0926315003000

$12,97

Unit Price

WASHER
WASHER (15.5X28X1)

09160-15045-000 0916015045000

$6,97

Unit Price

ROD, CLUTCH PUSH, R
ROD, PUSH RH

23110-38B00-000 2311038B00000

$25,97

Unit Price

ROD, CLUTCH PUSH, L
ROD, PUSH LH

23111-24A01-000 2311124A01000

$19,97

Unit Price

SEAL, OIL(6X34X11)
OIL SEAL (6X34X11)

09285-06017-000 0928506017000

$26,97

Unit Price

RETAINER, CL PUSH ROD OIL SEAL
RETAINER

23117-38A00-000 2311738A00000

$8,97

Unit Price

CYLINDER, CLUTCH RELEASE

23160-10F00-000

23160-10F01-000

$169,97

Unit Price

CUP

23163-10F00-000 2316310F00000

$11,97

Unit Price

SPRING

23164-10F00-000 2316410F00000

$6,97

Unit Price

BLEEDER

59121-01A00-000 5912101A00000

$12,97

Unit Price

CAP, BLEEDER
CAP

59122-01A00-000 5912201A00000

$6,97

Unit Price

SPACER (9X16X11)

09180-09019-000 0918009019000

Not available

09206-09011-000 0920609011000

Not available

BOLT

01550-06403-000

01550-0640A-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
