SPEEDOMETER (E28)

SPEEDOMETER (E03,E33) FOR SUZUKI BOULEVARD 1800 2020

HEADLIGHT

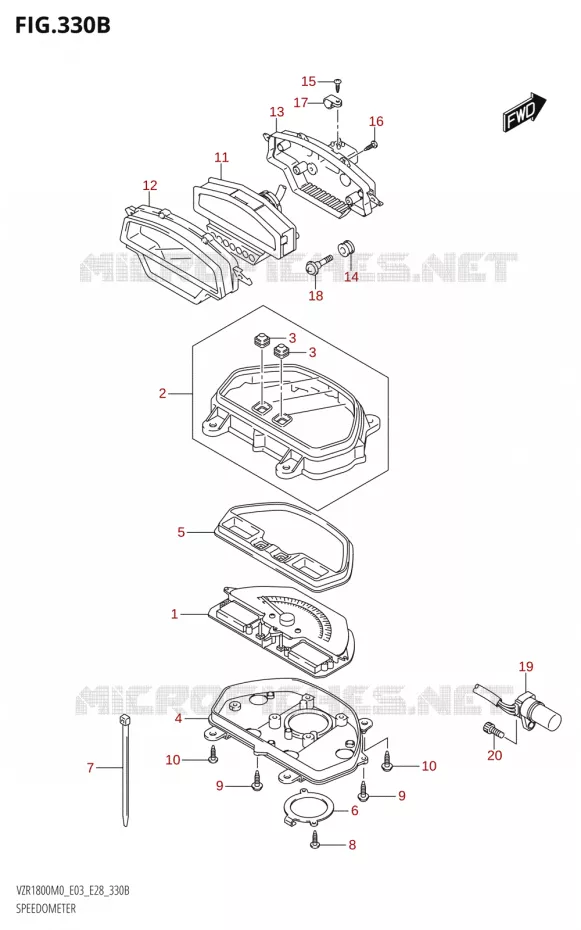

SPEEDOMETER (E03,E33) Suzuki MOTO 1800 BOULEVARD 2020 VZR1800 M0 /​ VZR1800BZ M0 (E03,E28,E33)
1
SPEEDOMETER

34120-48GG0-000   3412048GG0000

3412048GG0000
Not available
2
UPR CASE ASSY
UPPER CASE ASSY

34150-48G00-000   3415048G00000

3415048G00000

Unit Price

3
.RUBBER,SWITCH
.RUBBER, SWITCH

34124-32F00-000   3412432F00000

3412432F00000

Unit Price

4
LWR CASE
LOWER CASE

34111-48G40-000   3411148G40000

3411148G40000

Unit Price

5
REFLECTOR ASSY

34125-48G00-000   3412548G00000

3412548G00000

Unit Price

6
BRACKET

34950-48G00-000   3495048G00000

3495048G00000

Unit Price

7
CLAMP
CLAMP (L:100)

34192-48G00-000   3419248G00000

3419248G00000

Unit Price

8
SCREW (3X12)

34183-09F00-000   3418309F00000

3418309F00000

Unit Price

9
SCREW (3X14)

34149-03G00-000   3414903G00000

3414903G00000

Unit Price

10
SCREW
SCREW

03541-0516A-000   035410516A000

035410516A000

Unit Price

11
TACHOMETER ASSY

34220-48G40-000   3422048G40000

3422048G40000

Unit Price

12
CASE ASSY, UPR
CASE ASSY, UPPER

34250-48G30-000   3425048G30000

3425048G30000

Unit Price

13
CASE ASSY, LWR
CASE ASSY, LOWER

34211-48G30-000   3421148G30000

3421148G30000

Unit Price

14
CUSHION,SPEEDOMETER
CUSHION, SPEEDOMETER

34955-13E00-000  

34955-13E01-000
 3495513E00000

Unit Price

15
SCREW (4X14)

34149-17E10-000   3414917E10000

3414917E10000

Unit Price

16
SCREW (3X16)
SCREW (3X16)

09132-03008-000   0913203008000

0913203008000

Unit Price

17
CLAMP

36385-24A30-000   3638524A30000

3638524A30000

Unit Price

18
SCREW
SCREW

03541-0516A-000   035410516A000

035410516A000

Unit Price

19
SENSOR, SPEED

34990-48G00-000  

34990-48G01-000
 3499048G00000

Unit Price

20
BOLT

07130-0616A-000  

07130-0616B-000
 071300616A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SPEEDOMETER (E03,E33) of your Suzuki BOULEVARD M109R of BOULEVARD. Let us know if you have any questions.

Genuine parts for Suzuki 1800 BOULEVARD 2020
