CASING (VZR1800BZ)

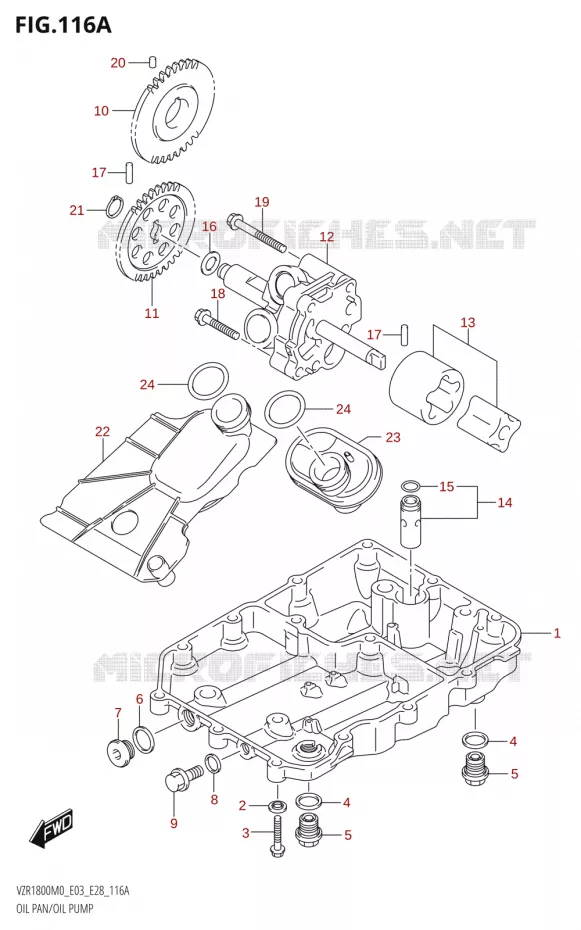

OIL PAN - OIL PUMP FOR SUZUKI BOULEVARD 1800 2020

CRANKSHAFT

PAN, OIL

11511-48G01-000 1151148G01000

$269,97

Unit Price

GASKET
GASKET (5.8X13X1.2)

09168-06023-000 0916806023000

Not available

BOLT

01547-0630A-000 015470630A000

$4,97

Unit Price

GASKET, 13.8X18.8X0.4
GASKET (13.8X18.8X4.8)

09168-14002-000 0916814002000

$3,97

Unit Price

PLUG, OIL DRAIN
PLUG (14X20)

09247-14036-000 0924714036000

$10,97

Unit Price

GASKET OIL GALLERY
GASKET (16X22X2)

09168-16002-000 0916816002000

$2,97

Unit Price

PLUG, OIL
PLUG (16X8)

09248-16012-000 0924816012000

$8,97

Unit Price

CRNK DRAIN PLUG GASK
GASKET (10X14X3.6)

09168-10002-000 0916810002000

$2,97

Unit Price

PLUG
PLUG (10X12)

09247-10008-000 0924710008000

$3,97

Unit Price

GEAR, OIL PUMP DRIVE
GEAR, OIL PUMP DRIVE (NT:40)

16321-48G00-000 1632148G00000

$66,97

Unit Price

GEAR, OIL PUMP DRIVEN
GEAR, OIL PUMP DRIVEN (NT:36)

16331-48G00-000 1633148G00000

$69,97

Unit Price

PUMP ASSY, ENGINE OIL

16400-48G00-000

16400-48G01-000

$239,97

Unit Price

ROTOR SET, OIL PUMP

16410-48G00-000 1641048G00000

$63,97

Unit Price

VALVE ASSY, OIL RELIEF
VALVE ASSY, OIL RELIEF (7K)

16440-24F00-000 1644024F00000

$48,97

Unit Price

ENG OIL PUMP O RING
.O RING (D:1.9, ID:13)

09280-13004-000 0928013004000

$3,97

Unit Price

SHIM (10X18X0.5)

09181-10158-000 0918110158000

$3,97

Unit Price

GR SHIFT CAM DR PIN
PIN (4X15.8)

09261-04009-000 0926104009000

$2,97

Unit Price

BOLT

01547-0635A-000 015470635A000

$3,97

Unit Price

BOLT

01547-0655A-000 015470655A000

$3,97

Unit Price

PIN (4X6)
PIN

04221-04069-000 0422104069000

$2,97

Unit Price

CIRCLIP

08331-31109-000 0833131109000

$2,97

Unit Price

STRAINER, ENGINE OIL FR

16530-48G01-000 1653048G01000

$48,97

Unit Price

STRAINER, ENG OIL RR

16520-48G01-000 1652048G01000

$34,97

Unit Price

O RING, D:.7, ID:7
O RING (D:3.7, ID:21.7)

09280-22016-000 0928022016000

$9,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PAN - OIL PUMP of your Suzuki BOULEVARD M109R of BOULEVARD. Let us know if you have any questions.
