TRANSMISSION

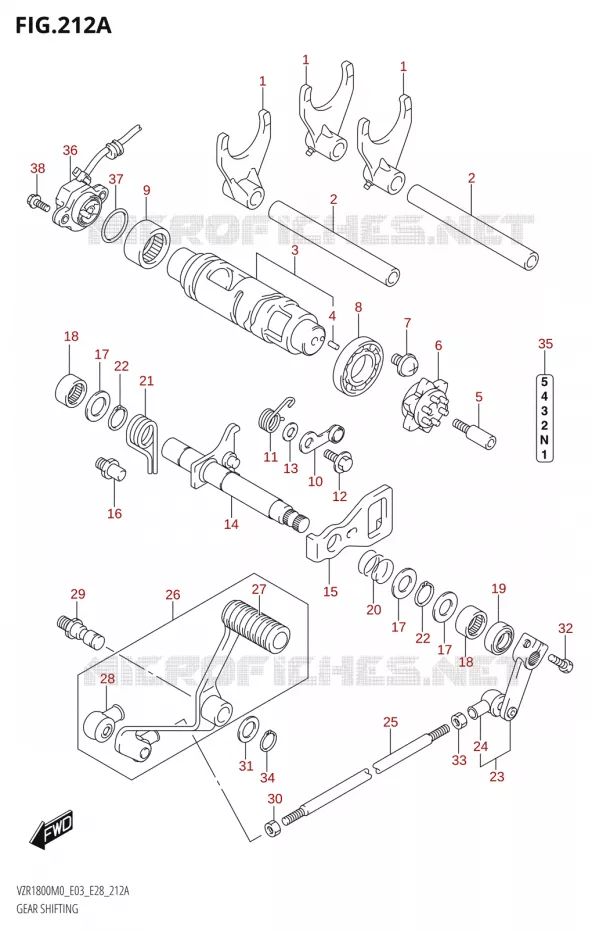

GEAR SHIFTING ASSY FOR SUZUKI BOULEVARD 1800 2020

DRIVESHAFT

FORK, GEAR SHIFT NO.1

25211-35F11-000 2521135F11000

$87,97

Unit Price

SHAFT, GEAR SHIFT FORK
SHAFT, GEAR SHIFT FORK (10X14X1 39)

25411-48G00-000 2541148G00000

$30,97

Unit Price

CAM, GEAR SHIFT

25310-48G00-000 2531048G00000

$241,97

Unit Price

.PIN

04221-04089-000 0422104089000

$1,97

Unit Price

BOLT, GEAR SHIFT CAM PLATE

25312-42F01-000 2531242F01000

$12,97

Unit Price

PLATE, GEAR SHIFT CAM

25381-13E00-000 2538113E00000

$57,97

Unit Price

SCREW (6X12)

09136-06147-000 0913606147000

$4,97

Unit Price

BEARING, ROLLER KOYO
BEARING (25X47X8)

09262-25006-000 0926225006000

$39,97

Unit Price

R BEARING 25X32X12
BEARING (25X32X12)

09263-25018-000 0926325018000

$29,97

Unit Price

25350-06G10
STOPPER, SHIFT CAM

25350-06G00-000 2535006G00000

Not available

SPRING, GEAR SHIFT CAM STOPPER

25355-38F00-000 2535538F00000

$5,97

Unit Price

BOLT
BOLT (6X14.3)

09111-06041-000 0911106041000

$4,97

Unit Price

THRUST WASHER
WASHER

08211-06141-000 0821106141000

$3,97

Unit Price

SHAFT, GEAR SHIFT

25510-48G00-000 2551048G00000

$87,97

Unit Price

PLATE, GEAR SHIFT, CAM DRIVE

25512-13E20-000 2551213E20000

$38,97

Unit Price

STOPPER, GEAR SHIFT ARM

25671-01011-000 2567101011000

$6,97

Unit Price

WASHER, GEAR SHIFT SH
SHIM (14X22X1)

09181-14167-000 0918114167000

$3,97

Unit Price

BEARING, RR CUSHION
BEARING (14X20X12)

09263-14027-000 0926314027000

$19,97

Unit Price

SEAL, OIL(14X22X7.3)
OIL SEAL (14X22X7.3)

09283-14005-000 0928314005000

$9,97

Unit Price

SPRING

09440-17009-000 0944017009000

$2,97

Unit Price

SPRING

09444-20001-000 0944420001000

$9,97

Unit Price

CIRCLIP

08331-3114A-000 083313114A000

$3,97

Unit Price

ARM, GEAR SHIFT LINK

25520-48G00-000

25520-48G01-000

$63,97

Unit Price

COVER, DUST

25526-47000-000

25526-47001-000

$8,97

Unit Price

ROD, GEAR SHIFT LINK

25525-48G00-000 2552548G00000

$17,97

Unit Price

LEVER ASSY, GEAR SHIFT

25600-48G10-000

25600-48G11-000

$178,97

Unit Price

.RUBBER, GEAR SHIFT PEDAL

25652-38B00-000 2565238B00000

$8,97

Unit Price

COVER, DUST

25526-47000-000

25526-47001-000

$8,97

Unit Price

SHAFT, GEAR SHIFT LEVER

25617-03F10-000 2561703F10000

$18,97

Unit Price

NUT

09140-06025-000 0914006025000

$2,97

Unit Price

SEAL WASHER
WASHER (12.5X20X1)

09160-12011-000

Not available

BOLT

01547-0620A-000 015470620A000

$3,97

Unit Price

NUT

08310-0006A-000

Not available

CIRCLIP

08331-3112A-000 083313112A000

$2,97

Unit Price

LABEL, GEAR SHIFT

68392-38B00-000 6839238B00000

$3,97

Unit Price

SENSOR ASSY, GEAR POSITION

37730-48G02-000

37730-48G03-000

$151,97

Unit Price

O RING
O-RING (D:2.4, ID:26.2)

09280-26005-000 0928026005000

Not available

BOLT
BOLT (5X16)

09106-05023-000 0910605023000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the GEAR SHIFTING ASSY of your Suzuki BOULEVARD M109R of BOULEVARD. Let us know if you have any questions.
