CRANKCASE COVER

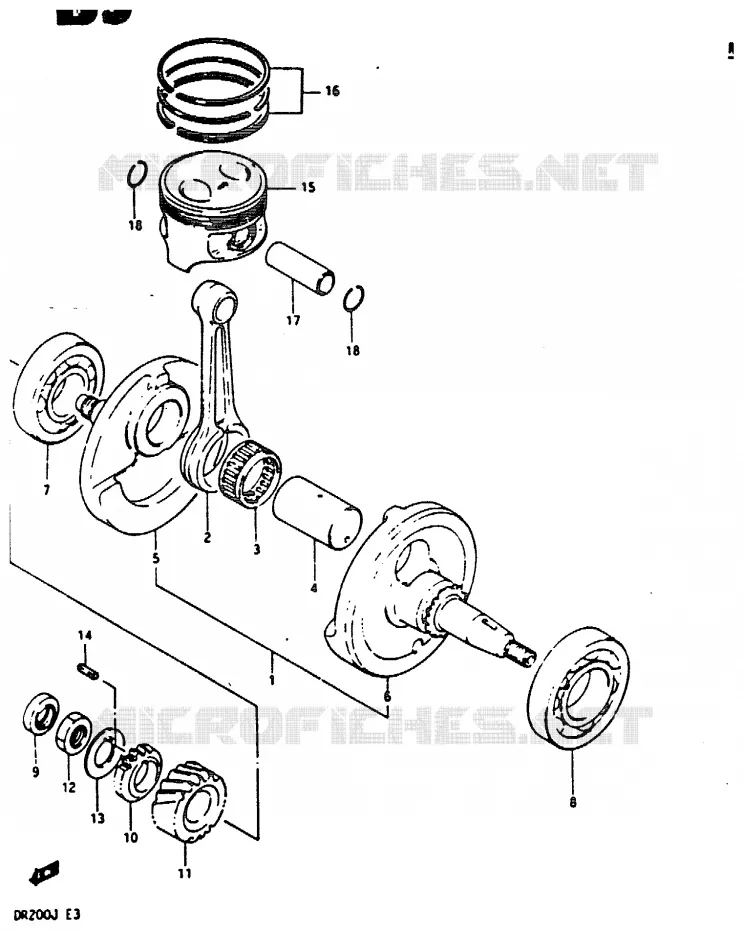

CRANKSHAFT FOR SUZUKI DR 200 1987

CAM SHAFT - VALVE

CRANKSHAFT ASSY

12200-42A02-000 1220042A02000

Not available

CONNECTING ROD
ROD, CONNECTING

12161-42A01-000 1216142A01000

$121,97

Unit Price

ROLLER BEARING
BEARING

09263-31008-0B0 09263310080B0

$56,97

Unit Price

PIN, CRANK

12210-42A00-000

12210-42A01-000

$45,97

Unit Price

CRANKSHAFT, R
CRANKSHAFT, RH

12221-42A02-000 1222142A02000

$168,97

Unit Price

CRANKSHAFT, LH

12261-42A02-000 1226142A02000

Not available

BALL BEARING
BEARING, RH

09262-28014-000 0926228014000

$78,97

Unit Price

DISCONTINUED

09262-35035-000 0926235035000

Not available

OIL SEAL, RH (12X21X7)

09282-12001-000 0928212001000

Not available

GEAR, OIL PUMP DRIVE(NT:15)
GEAR, OIL PUMP DRIVE

16321-42A00-000 1632142A00000

$58,97

Unit Price

21111-42A01
DISCONTINUED

21111-42A00-000 2111142A00000

Not available

PRIMARY DR GEAR NUT
NUT

09140-18004-000 0914018004000

$5,97

Unit Price

WASHER
LOCK WASHER

09166-18003-000 0916618003000

$3,97

Unit Price

KEY

09421-04007-000 0942104007000

$16,97

Unit Price

PISTON

12111-42A02-000

12111-42A20-0F0

$90,97

Unit Price

PISTON SET, OS0.5

12111-42A02-050

12100-42A40-050

$174,97

Unit Price

DISCONTINUE

12111-42A02-100

Not available

RING SET, PISTON

12140-22A10-000

12140-19B10-000

$105,97

Unit Price

RING SET, PISTON(OS:0.50)

12140-22A10-050

12140-19B10-050

$109,97

Unit Price

RING SET, PISTON(OS:1.0)

12140-22A10-100

12140-19B10-100

$90,97

Unit Price

PIN, PISTON

12151-22A02-000 1215122A02000

$17,97

Unit Price

PISTON PIN CIRCLIP

09381-16002-000

09381-16001-000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki of DR. Let us know if you have any questions.
