CAM SHAFT - VALVE

TIMING FOR SUZUKI DR 200 1987

CARBURETOR

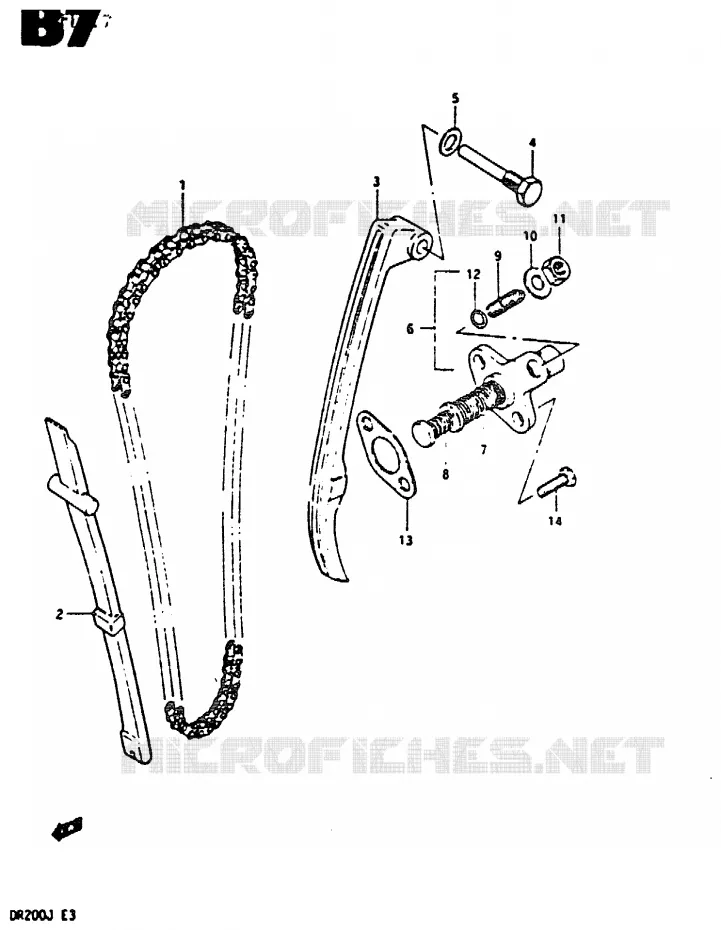

TIMING Suzuki MOTO 200 DR 1987 DR200H(G/H/J)

1

CHAIN, CAMSHAFT DRIVE 102L
CHAIN, CAM SHAFT DRIVE

12760-42A00-000 1276042A00000

$79,97

Unit Price

2

GUIDE, CAM CHAIN

12771-18A00-000

12771-18A01-000

$42,97

Unit Price

3

TENSIONER, CAM CHAIN

12811-18A00-000

12811-18A02-000

$45,97

Unit Price

4

BOLT, CAM CHAIN TENSIONER
BOLT

12812-32410-000 1281232410000

$7,97

Unit Price

5

GASKET, 8.2X14X1

09168-08008-000

09168-08016-000

$2,97

Unit Price

6

DISCONTINUE

12830-05200-000

Not available

7

SPRING
SPRING, NO.1

09440-12030-000 0944012030000

$3,97

Unit Price

8

09440-08035
SPRING, NO.2

09440-09018-000 0944009018000

Not available

9

SCREW

12838-45001-000 1283845001000

$11,97

Unit Price

10

08322-0108A
WASHER, FRONT

08322-11084-000

Not available

11

.NUT

08310-11085-000 0831011085000

Not available

12

O RING

09280-06005-000 0928006005000

$3,97

Unit Price

13

GASKET, TENSIONER ADJUSTER

12837-32400-000

12837-32410-000

$3,97

Unit Price

14

BOLT

01107-06205-000

01500-06257-000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TIMING of your Suzuki of DR. Let us know if you have any questions.
