Parts diagram

CLUTCH

TRANSMISSION FOR SUZUKI DR 200 1987

GEAR SHIFTING ASSY

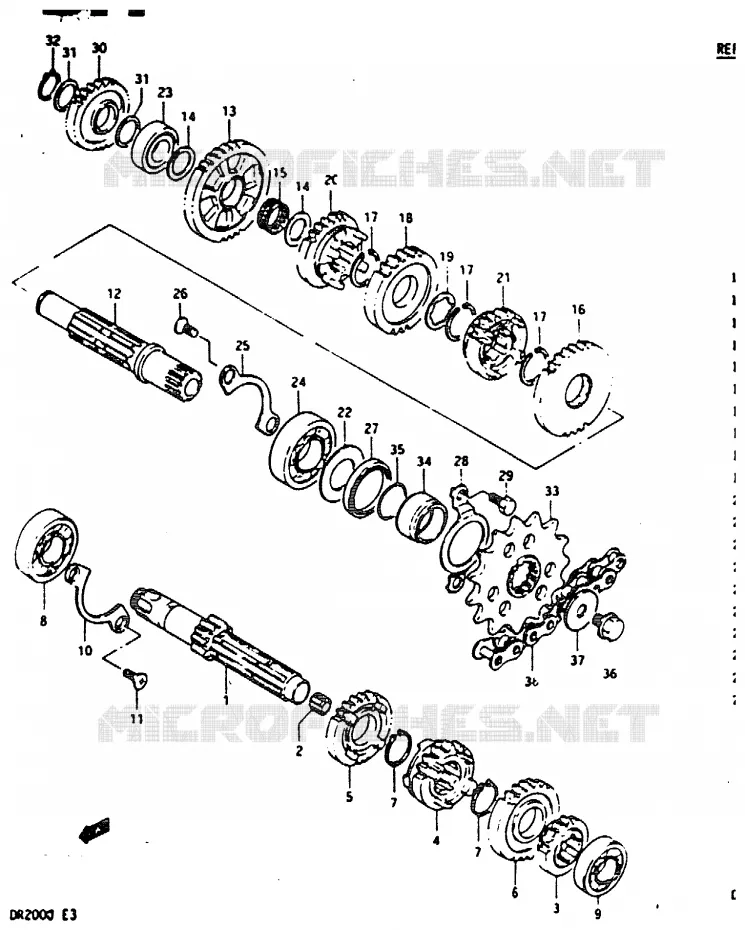

TRANSMISSION Suzuki MOTO 200 DR 1987 DR200H(G/H/J)
1
24120-42A01
DISCONTINUED

24120-42A00-000   2412042A00000

2412042A00000
Not available
2
BUSH

24125-38201-000   2412538201000

2412538201000

Unit Price

3
GEAR, 2ND DRIVE
GEAR, 2ND DRIVE (NT:15)

24221-42A02-000   2422142A02000

2422142A02000

Unit Price

4
GEAR, 3RD DRIVE(NT:16)

24231-42A02-000  

24231-42A03-000
 2423142A02000

Unit Price

5
GEAR, 4TH DRIVE
GEAR, 4TH DRIVE (NT:21)

24241-42A00-000   2424142A00000

2424142A00000

Unit Price

6
GEAR, 5TH DRIVE(NT:23)

24251-42A03-000  

24251-42A10-000
 2425142A03000

Unit Price

7
CIRCLIP ENG SPROCKET
CIRCLIP

09380-20009-000   0938020009000

0938020009000

Unit Price

8
BEARING

09262-20062-000  

09262-20121-000
 0926220062000

Unit Price

9
BALL BEARING

08123-60020-000  

08123-60027-000
 0812360020000

Unit Price

10
RETAINER, DRIVE SHAFT BEARING
HOLDER, BEARING

24741-05200-000   2474105200000

2474105200000

Unit Price

11
SCREW

02122-06128-000  

02122-06127-000
 0212206128000

Unit Price

12
SHAFT, DRIVE

24130-42A00-000  

24130-42A01-000
 2413042A00000

Unit Price

13
GEAR, 1ST DRIVEN
GEAR, 1ST DRIVEN (NT:33)

24311-42A00-000   2431142A00000

2431142A00000

Unit Price

14
WASHER

08211-17261-000  

09181-17167-000
 0821117261000

Unit Price

15
BEARING(17X21X9.8)
BEARING

09263-17004-000   0926317004000

0926317004000

Unit Price

16
GEAR, 2ND DRIVEN(NT:29)

24320-42A02-000  

24320-42A03-000
 2432042A02000

Unit Price

17
4TH DRIVE GR CIRCLIP
CIRCLIP

09380-22006-000   0938022006000

0938022006000

Unit Price

18
GEAR, 3RD DRIVEN(NT:23)

24331-42A01-000  

24331-42A02-000
 2433142A01000

Unit Price

19
DRIVEN GEAR WASHER<br />WASHER
DRIVEN GEAR WASHER
WASHER

09167-22011-000   0916722011000

0916722011000

Unit Price

20
GEAR, 4TH DRIVEN(NT:23)

24341-42A01-000  

24341-42A02-000
 2434142A01000

Unit Price

21
GEAR, 5TH DRIVEN
GEAR, 5TH DRIVEN (NT:21)

24351-42A02-000   2435142A02000

2435142A02000

Unit Price

22
WASHER, OIL SEALING
WASHER

24359-42A00-000   2435942A00000

2435942A00000

Unit Price

23
BEARING(17X36X12)
BEARING, RH

09264-17001-000   0926417001000

0926417001000

Unit Price

24
BEARING<br />BEARING, LH
BEARING
BEARING, LH

09262-22018-000   0926222018000

0926222018000

Unit Price

25
RETAINER, DRIVE SHAFT BEARING
HOLDER, BEARING

24741-05200-000   2474105200000

2474105200000

Unit Price

26
SCREW

02122-06128-000  

02122-06127-000
 0212206128000

Unit Price

27
OIL SEAL 30X40X6<br />OIL SEAL (30*40*6)
OIL SEAL 30X40X6
OIL SEAL (30*40*6)

09283-30053-000   0928330053000

0928330053000

Unit Price

28
RETAINER, DRIVE SHAFT OIL SEAL

24751-42A01-000  

24751-42A10-000
 2475142A01000

Unit Price

29
BOLT

01107-06106-000  

01500-0610B-000
 0110706106000

Unit Price

30
26260-42A02
DISCONTINUED

26260-42A01-000   2626042A01000

2626042A01000
Not available
31
WASHER

08211-17221-000   0821117221000

0821117221000

Unit Price

32
CIRCLIP

08331-31178-000  

08331-31176-000
 0833131178000

Unit Price

33
SPROCKET, ENGINE

27511-42A00-000  

27510-42A10-000
 2751142A00000

Unit Price

34
SPACER, ENGINE SPROCKET
SPACER

27531-42A00-000   2753142A00000

2753142A00000

Unit Price

35
O RING (D:2.5,ID:21)
O RING (D:2.5, ID:21)

09280-21008-000   0928021008000

0928021008000

Unit Price

36
BOLT

01517-08125-000  

01550-0812B-000
 0151708125000

Unit Price

37
WASHER, THRUST
WASHER

08211-08283-000   0821108283000

0821108283000

Unit Price

38
CHAIN(DID520V0)

27600-42A11-112  

27600-14A10-112
 2760042A11112

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION of your Suzuki of DR. Let us know if you have any questions.

Genuine parts for Suzuki 200 DR 1987
