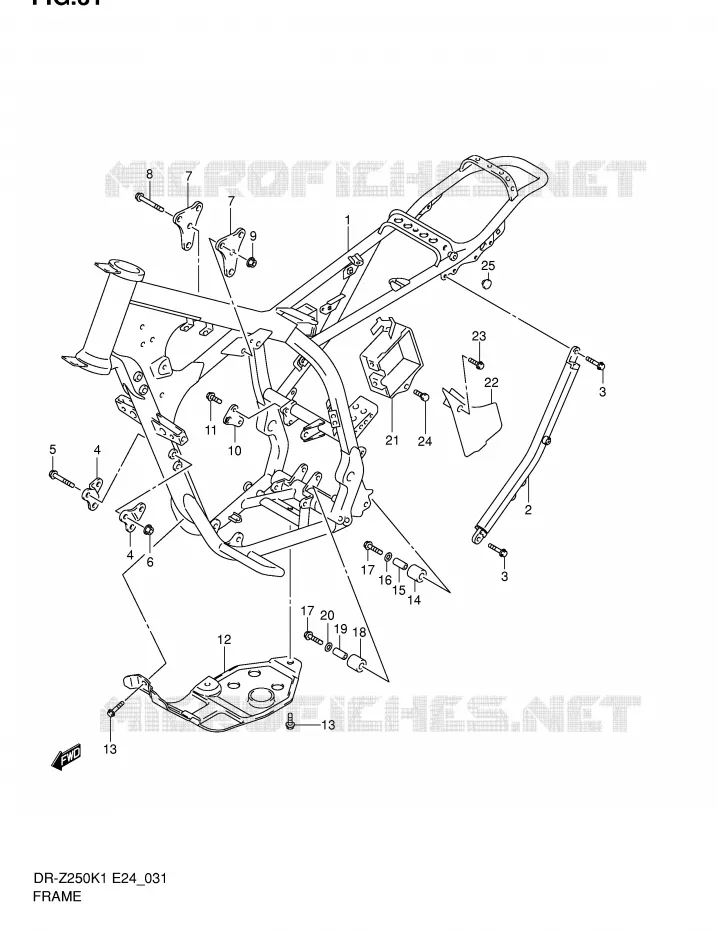

FRAME FOR SUZUKI DR-Z 250 2002

TOOL BOX

Item numbers

FRAME (GRAY)

41100-13E50-17U 4110013E5017U

Not available

FRAME (CHARCOAL)

41100-13E50-24K 4110013E5024K

Not available

FRAME (GRAY)

41100-13E50-YU8 4110013E50YU8

Not available

TUBE, FRAME SIDE LH

41670-13E20-000 4167013E20000

Not available

TUBE, FRAME SIDE LH

41670-13E30-000 4167013E30000

Not available

BOLT (8X20)

09103-08266-000 0910308266000

$4,97

Unit Price

PLATE, HEAD MTG FR
PLATE, HEAD MOUNT FRONT

41911-13E00-000 4191113E00000

$25,97

Unit Price

BOLT(8X65)
BOLT

09103-08141-000 0910308141000

$6,97

Unit Price

NUT

09159-08034-000 0915908034000

$2,97

Unit Price

DISCONTINUE
PLATE, HEAD MOUNT REAR

41993-13E02-000 4199313E02000

Not available

BOLT, 8X55

09103-08170-000

09103-08339-000

$6,97

Unit Price

NUT

08319-31088-000 0831931088000

Not available

PLATE, ENGINE MOUNT RR, R
PLATE, MOUNT REAR RH

41921-13E01-000 4192113E01000

$21,97

Unit Price

BOLT

09103-08283-000

09103-08570-000

$4,97

Unit Price

PROTECTOR, ENGINE

42510-13E00-000 4251013E00000

$136,97

Unit Price

BOLT

01550-06123-000

01550-0612B-000

$3,97

Unit Price

ROLLER, CHAIN CONTROL UPR
ROLLER, CHAIN CONTROL UPPER

43911-13E00-000 4391113E00000

$24,97

Unit Price

SPACER 8X6X12X25.5
SPACER

09180-08156-000 0918008156000

$11,97

Unit Price

WASHER THRUST
WASHER

08211-08201-000 0821108201000

$3,97

Unit Price

BOLT 8X38
BOLT

09103-08178-000 0910308178000

$7,97

Unit Price

ROLLER, CHAIN CONTROL
ROLLER, CHAIN CONTROL LOWER

43911-01B10-000 4391101B10000

$29,97

Unit Price

SPACER

09180-08206-000 0918008206000

$17,97

Unit Price

WASHER THRUST
WASHER

08211-08201-000 0821108201000

$3,97

Unit Price

HOLDER, BATTERY

41540-13E00-000 4154013E00000

$43,97

Unit Price

CAP, BATTERY HOLDER

41545-13E01-000 4154513E01000

$30,97

Unit Price

BOLT, 6X16
BOLT

09113-06001-000 0911306001000

$4,97

Unit Price

BOLT

09111-06057-000 0911106057000

$7,97

Unit Price

CAP (OD:20)

09250-08005-000 0925008005000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
