STEERING COLUMN (MODEL K1 / K2) REFER TO FIG.47A(H- 4) FOR MODEL K3/K4/K5

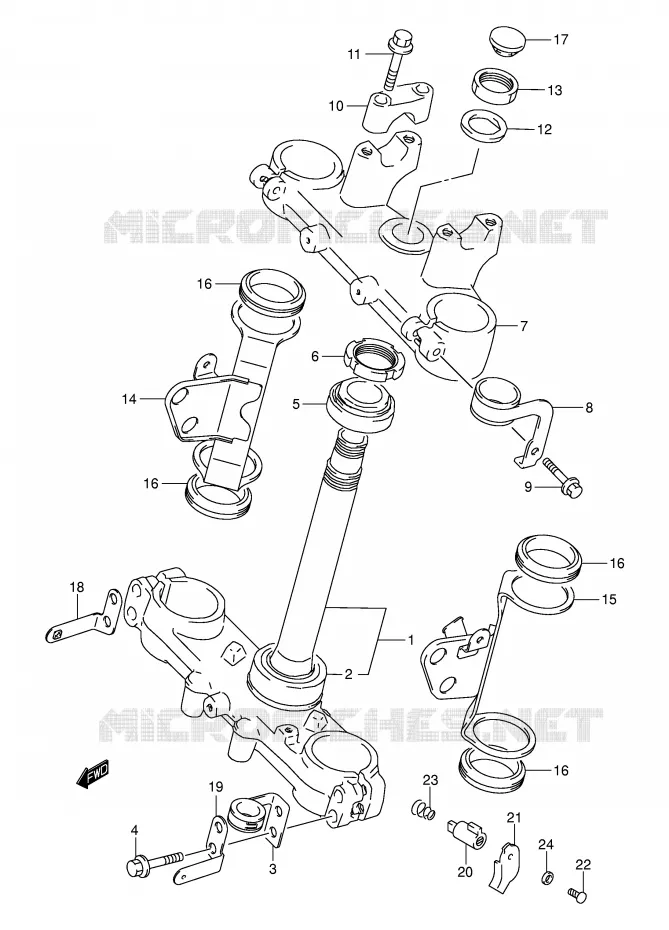

STEERING COLUMN (MODEL K3 / K4 / K5) FOR SUZUKI DR-Z 250 2002

FRONT WHEEL

Item numbers

STEM, STEERING

51410-13E40-000 5141013E40000

Not available

BEARING

09265-30014-000

09265-30035-000

$82,97

Unit Price

GUIDE, CABLE LWR, L
GUIDE, CABLE LOWER LH

51453-13E50-000 5145313E50000

$38,97

Unit Price

BOLT

01550-08407-000 0155008407000

Not available

BEARING

09265-30014-000

09265-30035-000

$82,97

Unit Price

NUT, STEERING
NUT, STEM

51631-28E00-000 5163128E00000

$29,97

Unit Price

HEAD, STEERING STEM

51311-13E00-000 5131113E00000

$415,97

Unit Price

GUIDE, CABLE UPPER LH

51288-13E00-000 5128813E00000

Not available

BOLT

01550-08407-000 0155008407000

Not available

HOLDER, HANDLE
HOLDER, HANDLE (BLACK)

56211-13EB0-000 5621113EB0000

$27,97

Unit Price

BOLT, HANDLE HOLDER
BOLT, HOLDER

51321-13E00-000 5132113E00000

$9,97

Unit Price

WASHER, STEM HEAD
WASHER

51356-29E00-000 5135629E00000

$19,97

Unit Price

NUT, STEM HEAD
NUT

51353-27C40-000 5135327C40000

$28,97

Unit Price

BRACKET, LAMP HOUSING RH

51530-13E80-000 5153013E80000

Not available

BRACKET, LAMP HOUSING LH

51540-13E80-000 5154013E80000

Not available

DAMPER, HEAD LAMP HSG BRKT

51553-15D00-000

51553-15D01-000

$10,97

Unit Price

CAP(OD:20)

09250-12006-000

09250-12016-000

$2,97

Unit Price

BRACKET, FR SIDE RR, R

35956-13E00-000 3595613E00000

$18,97

Unit Price

BRACKET, FR SIDE RR, L

35957-13E00-000 3595713E00000

$18,97

Unit Price

LOCK SET, STEERING

51900-13810-000 5190013810000

Not available

CAP, STEERING LOCK

51912-13E00-000 5191213E00000

Not available

PIN, STEERING LOCK

51913-13E00-000 5191313E00000

Not available

SPRING, STEERING LOCK

51931-13E00-000 5193113E00000

Not available

WASHER, STEERING LOCK

09164-04001-000 0916404001000

Not available
