LH HANDLE LEVER

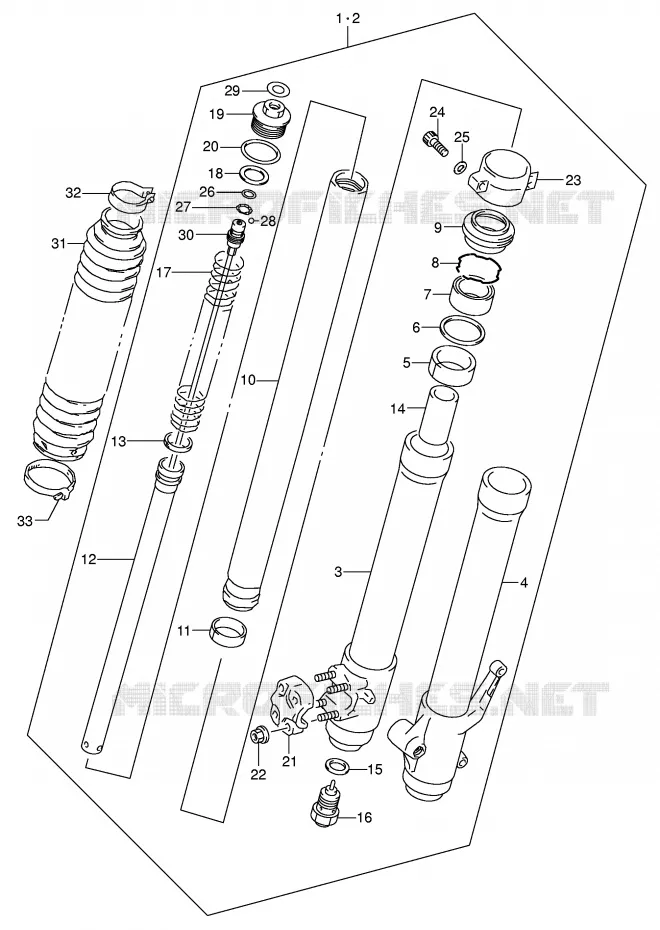

FRONT FORK FOR SUZUKI DR-Z 250 2002

STEERING COLUMN (MODEL K1 / K2) REFER TO FIG.47A(H- 4) FOR MODEL K3/K4/K5

Item numbers

DAMPER ASSY, FR FORK, R
DAMPER ASSY, FRONT FORK RH

51103-13EB0-000 5110313EB0000

$2 200,97

Unit Price

DISCONTINUE
DAMPER ASSY, FRONT FORK LH

51104-13EB0-000 5110413EB0000

Not available

TUBE, OUTER, R
TUBE, OUTER RH

51130-13EB0-000 5113013EB0000

$829,97

Unit Price

TUBE, OUTER, L
TUBE, OUTER LH

51140-13EB0-000 5114013EB0000

$829,97

Unit Price

BUSH, GUIDE

51152-13E00-000 5115213E00000

$28,97

Unit Price

SPACER, SEAL

51168-17C00-000 5116817C00000

$9,97

Unit Price

SEAL, OIL

51153-14D00-000 5115314D00000

$29,97

Unit Price

CIRCLIP, FORK OIL SEAL
RING, STOPPER

51556-38B00-000 5155638B00000

$10,97

Unit Price

SEAL, DUST

51173-14D00-000 5117314D00000

$40,97

Unit Price

TUBE, INNER

51110-13EB0-000 5111013EB0000

$546,97

Unit Price

BUSH, SLIDE

51121-13E00-000 5112113E00000

$26,97

Unit Price

ROD, FR DAMPER
ROD, FRONT DAMPER

51190-13EB0-000 5119013EB0000

$553,97

Unit Price

BUSH, SLIDE

51197-14E30-000 5119714E30000

$17,97

Unit Price

PIECE, OIL LOCK

51195-13E00-000 5119513E00000

$37,97

Unit Price

GASKET

51148-08D00-000 5114808D00000

$12,97

Unit Price

BOLT, CTR
BOLT, CENTER

51170-08D00-000 5117008D00000

$143,97

Unit Price

SPRING, FR
SPRING, FRONT

51171-13EB0-000 5117113EB0000

$127,97

Unit Price

SEAT, SPRING LWR
SEAT, SPRING

51186-17C00-000 5118617C00000

$9,97

Unit Price

BOLT, FORK

51351-14E90-000 5135114E90000

$89,97

Unit Price

O RING

51117-17C00-000 5111717C00000

$8,97

Unit Price

HOLDER, AXLE
HOLDER, AXLE RH

51132-13E00-000 5113213E00000

$50,97

Unit Price

NUT 6MM
NUT, AXLE HOLDER

08319-31067-000 0831931067000

$3,97

Unit Price

HOLDER

51203-13E00-000 5120313E00000

$68,97

Unit Price

BOLT

07130-05207-000 0713005207000

$3,97

Unit Price

WASHER(5.5X10X1)
WASHER

09160-05044-000 0916005044000

$2,97

Unit Price

O RING, 02.5, ID:13.8
O RING

09280-14011-000 0928014011000

$8,97

Unit Price

EXPANDER

51836-17C00-000 5183617C00000

$6,97

Unit Price

BALL

51835-17C00-000 5183517C00000

$4,97

Unit Price

LABEL, S-H

51149-29E00-000 5114929E00000

Not available

CASE, ADJUSTER

51389-13E00-000 5138913E00000

$58,97

Unit Price

DISCONTINUE
BOOT (BLACK)

51571-14D00-019 5157114D00019

Not available

BAND, BOOT UPR
BAND, BOOT UPPER

51575-14D00-000 5157514D00000

$16,97

Unit Price

BAND, BOOT LWR
BAND, BOOT LOWER

51576-42AA0-000 5157642AA0000

$11,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
