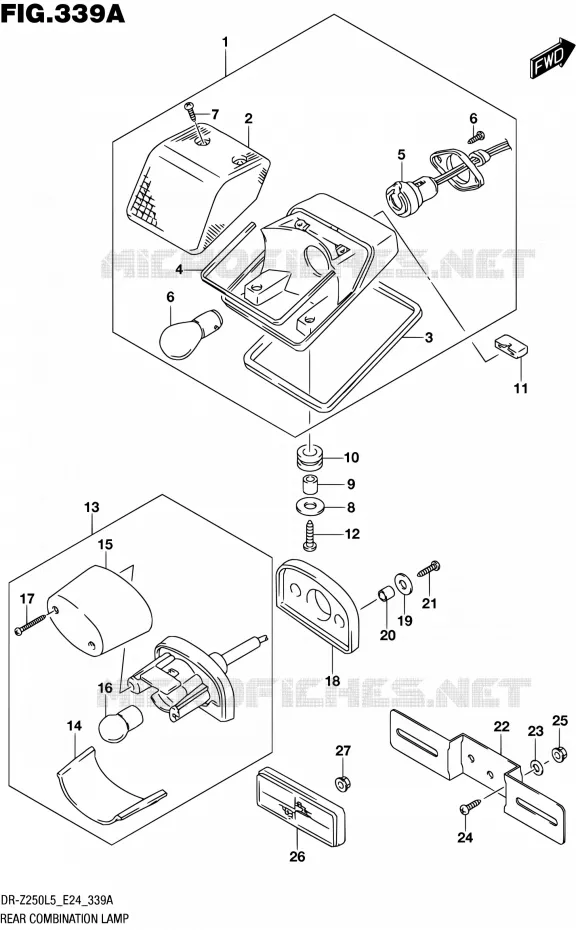

TAIL LIGHT ASSY FOR SUZUKI DR-Z 250 2015

WIRING HARNESS

Item numbers

LAMP ASSY, REAR COMBINATION

35710-13E02-000 3571013E02000

Not available

.LENS

35712-13E00-000 3571213E00000

$24,97

Unit Price

.GASKET

35713-13E00-000 3571313E00000

$5,97

Unit Price

.GASKET

35713-32E00-000 3571332E00000

$9,97

Unit Price

.SOCKET & CORD

35718-13E01-000 3571813E01000

$52,97

Unit Price

BULB(12V1.4W G30)
.BULB (12V, 21/5W)

09471-12083-000 0947112083000

$9,97

Unit Price

.SCREW

03211-0412A-000 032110412A000

$3,97

Unit Price

WASHER (6.5X20X1.6)

09160-06088-000 0916006088000

$2,97

Unit Price

SPACER (6.5X9X12.5)

09180-06267-000 0918006267000

$5,97

Unit Price

CUSHION

09320-09016-000 0932009016000

$3,97

Unit Price

09329-02004
CUSHION

09329-02002-000 0932902002000

Not available

SCREW

02112-0620B-000 021120620B000

$3,97

Unit Price

LAMP ASSY, LICENSE

35910-29E00-000 3591029E00000

Not available

.LENS, LICENSE

35912-29E00-000 3591229E00000

Not available

.COVER, LENS

35917-29E00-000 3591729E00000

Not available

BULB(12V10W)
.BULB (12V, 5W)

09471-12140-000

Not available

.SCREW

03511-0420B-000 035110420B000

$3,97

Unit Price

GASKET, LICENSE LAMP

35928-29E11-000 3592829E11000

Not available

WASHER(5.5X16X1.2)
WASHER (5.5X16X1.20)

09160-05037-000 0916005037000

$2,97

Unit Price

SPACER (6.5X9X6.5)

09180-06257-000 0918006257000

$3,97

Unit Price

SCREW

03511-0516B-000

Not available

BRACKET, LICENSE PLATE

35927-00A10-000 3592700A10000

$16,97

Unit Price

WASHER
WASHER (6.5X18X1.6)

09160-06109-000 0916006109000

$3,97

Unit Price

SCREW

02142-0616B-000 021420616B000

$3,97

Unit Price

NUT

08316-1006B-000 083161006B000

$3,97

Unit Price

REFLECTOR ASSY, RR
REFLECTOR ASSY, REAR

35970-24D60-000 3597024D60000

$31,97

Unit Price

NUT

08316-1005B-000 083161005B000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
