CARBURETOR FOR SUZUKI DR-Z 250 2015

AIR FILTER

Item numbers

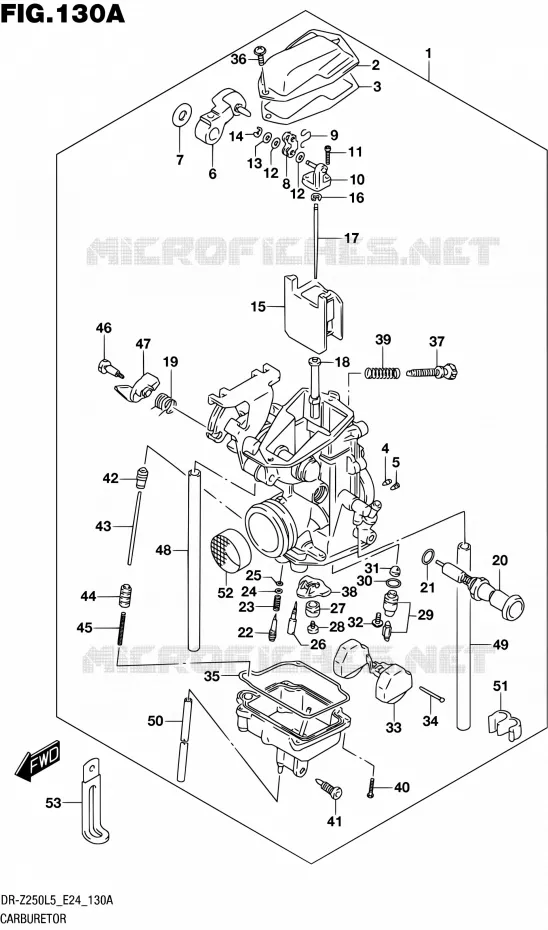

CARBURETOR Suzuki MOTO 250 DR-Z 2015 DR-Z250 L5 (E24)
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
1
CARBURETOR ASSY

13200-13E30-000   1320013E30000

1320013E30000

Unit Price

2
.COVER, TOP

13261-13E00-000   1326113E00000

1326113E00000

Unit Price

3
GASKET,CARBURETOR TOP<br />.GASKET
GASKET, CARBURETOR TOP
.GASKET

13266-27A00-000   1326627A00000

1326627A00000

Unit Price

4
JET, AIR
.JET, AIR (1.2)

09493-24007-000   0949324007000

0949324007000

Unit Price

5
.JET, AIR (1.6)

09493-32003-000   0949332003000

0949332003000
Not available
6
.LEVER SET, THROTTLE
.LEVER SET, THROTTLE

13541-13E00-000   1354113E00000

1354113E00000

Unit Price

7
.WASHER
.WASHER

13575-38200-000   1357538200000

1357538200000

Unit Price

8
.PLATE
.PLATE

13447-14A00-000   1344714A00000

1344714A00000

Unit Price

9
.CLIP ASSY

13446-13E00-000   1344613E00000

1344613E00000

Unit Price

10
.CONNECTOR

13398-27A02-000   1339827A02000

1339827A02000

Unit Price

11
.SCREW
.SCREW

02112-0312B-000   021120312B000

021120312B000

Unit Price

12
.GASKET
.GASKET

13445-14A00-000   1344514A00000

1344514A00000

Unit Price

13
WASHER<br />.WASHER (4.5X8X0.5)
WASHER
.WASHER (4.5X8X0.5)

09160-04024-000   0916004024000

0916004024000

Unit Price

14
.E RING
.E RING

13415-38300-000   1341538300000

1341538300000

Unit Price

15
VALVE, PISTON
.VALVE, PISTON (1.5)

13551-13E30-000   1355113E30000

1355113E30000

Unit Price

16
.E RING
.E RING

13394-40D20-000   1339440D20000

1339440D20000

Unit Price

17
.NEEDLE, JET (6FN3-3)

13383-13E30-000   1338313E30000

1338313E30000

Unit Price

18
.JET, NEEDLE (P-6M)

13341-13E30-000   1334113E30000

1334113E30000

Unit Price

19
.SPRING

13494-14D00-000   1349414D00000

1349414D00000

Unit Price

20
.PLUNGER ASSY

13411-42A20-000   1341142A20000

1341142A20000

Unit Price

21
O RING
O RING

13278-47090-000  

13278-47091-000
 1327847090000

Unit Price

22
SCREW, PILOT
.SCREW, PILOT (1 1/4)

13279-13E30-000   1327913E30000

1327913E30000

Unit Price

23
.SPRING
.SPRING

13268-47070-000   1326847070000

1326847070000

Unit Price

24
.WASHER
.WASHER

13291-29900-000   1329129900000

1329129900000

Unit Price

25
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

26
.JET, PILOT (37.5)

09492-37002-000   0949237002000

0949237002000

Unit Price

27
RING,MAIN JET FIXING<br />.RING
RING, MAIN JET FIXING
.RING

13331-13A00-000   1333113A00000

1333113A00000

Unit Price

28
JET, MAIN
.JET, MAIN (127.5)

09491-25011-000   0949125011000

0949125011000

Unit Price

29
.VALVE ASSY, NEEDLE

13370-05530-000   1337005530000

1337005530000

Unit Price

30
O RING,NEEDLE VALVE SEAT<br />.O RING
O RING, NEEDLE VALVE SEAT
.O RING

13374-35C00-000   1337435C00000

1337435C00000

Unit Price

31
.FILTER
.FILTER

13376-19F00-000   1337619F00000

1337619F00000

Unit Price

32
.SCREW
.SCREW

13602-43410-000   1360243410000

1360243410000

Unit Price

33
.FLOAT
.FLOAT

13250-28A00-000   1325028A00000

1325028A00000

Unit Price

34
.PIN, FLOAT
.PIN, FLOAT

13254-92311-000   1325492311000

1325492311000

Unit Price

35
O RING,FLOAT CHAMBER<br />.O RING
O RING, FLOAT CHAMBER
.O RING

13251-27A00-000   1325127A00000

1325127A00000

Unit Price

36
.SCREW
.SCREW

02112-3410A-000   021123410A000

021123410A000

Unit Price

37
.ADJUSTER

13267-13D01-000   1326713D01000

1326713D01000

Unit Price

38
.RING

13331-13E00-000   1333113E00000

1333113E00000

Unit Price

39
.SPRING

13268-13E00-000   1326813E00000

1326813E00000

Unit Price

40
.SCREW

13602-48B10-000   1360248B10000

1360248B10000

Unit Price

41
PLUG,DRAIN<br />.SCREW, DRAIN
PLUG, DRAIN
.SCREW, DRAIN

13247-02340-000   1324702340000

1324702340000

Unit Price

42
.BOOT
.BOOT

13499-44500-000   1349944500000

1349944500000

Unit Price

43
ROD, PLUNGER
.ROD

13487-14A00-000   1348714A00000

1348714A00000

Unit Price

44
.PLUNGER
.PLUNGER

13493-27A00-000   1349327A00000

1349327A00000

Unit Price

45
.SPRING
.SPRING

13271-09400-000   1327109400000

1327109400000

Unit Price

46
.BOLT
.BOLT

13613-14A00-000   1361314A00000

1361314A00000

Unit Price

47
.LEVER
.LEVER

13490-14A00-000   1349014A00000

1349014A00000

Unit Price

48
HOSE(5X9X600)
HOSE(5X9X600)

09352-50903-600  

09352-50006-600
 0935250903600

Unit Price

49
HOSE(5X9X600)
HOSE(5X9X600)

09352-50903-600  

09352-50006-600
 0935250903600

Unit Price

50
HOSE
HOSE

09352-30503-600  

09352-30504-600
 0935230503600

Unit Price

51
CLAMP<br />.CLIP
CLAMP
.CLIP

09408-00033-000   0940800033000

0940800033000

Unit Price

52
.NET, INTAKE

13130-19B00-000   1313019B00000

1313019B00000

Unit Price

53
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
