SWINGARM FOR SUZUKI DR-Z 250 2015

FRONT FORK

Item numbers

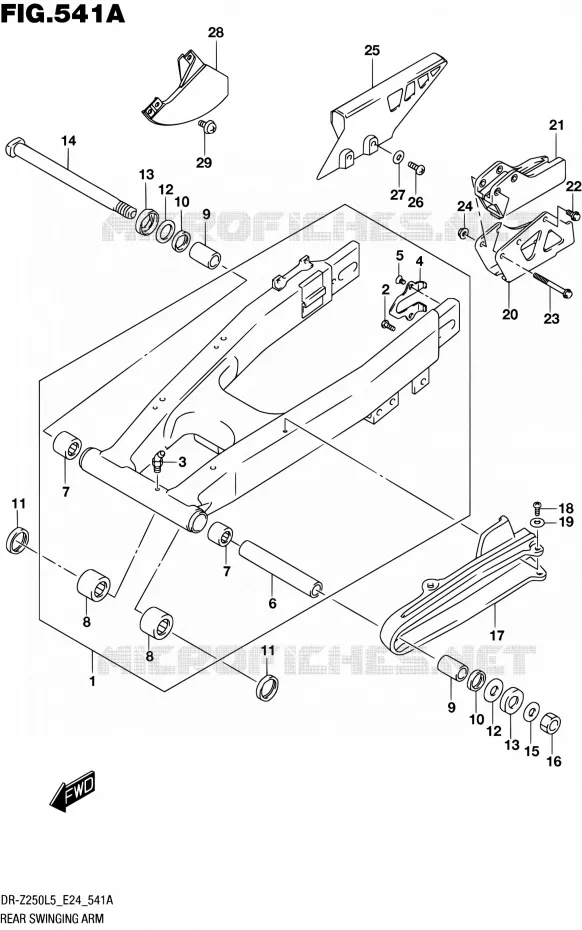

SWINGARM Suzuki MOTO 250 DR-Z 2015 DR-Z250 L5 (E24)
1
2
3
4
5
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
SWINGING ARM ASSY, REAR

61000-13E60-000   6100013E60000

6100013E60000
Not available
2
STOPPER, CHAIN ADJUSTER
.BOLT, STOPPER

61431-13E10-000   6143113E10000

6143113E10000

Unit Price

3
NIPPLE,GREASE<br />.NIPPLE
NIPPLE, GREASE
.NIPPLE

08351-3100A-000   083513100A000

083513100A000

Unit Price

4
PLATE, RR SWING ARM AXLE
.PLATE

61128-29E00-000   6112829E00000

6112829E00000

Unit Price

5
.SCREW (5X8)

09126-05009-000   0912605009000

0912605009000

Unit Price

6
SPACER, SWGARM PIVOT CTR
.SPACER

61282-13E00-000   6128213E00000

6128213E00000

Unit Price

7
R BEARING 22X29X30<br />.BEARING, PIVOT (22X29X30)
R BEARING 22X29X30
.BEARING, PIVOT (22X29X30)

09263-22017-000   0926322017000

0926322017000

Unit Price

8
ROLLER BEARING<br />.BEARING, REAR (20X27X23.5)
ROLLER BEARING
.BEARING, REAR (20X27X23.5)

09263-20071-000   0926320071000

0926320071000

Unit Price

9
SPACER, SWGARM PIVOT BRG
SPACER, PIVOT BEARING

61251-14D00-000   6125114D00000

6125114D00000

Unit Price

10
SEAL, OIL

09285-22001-000  

09285-22006-000
 0928522001000

Unit Price

11
KK SHAFT OIL SEAL<br />OIL SEAL, REAR (20X27X5)
KK SHAFT OIL SEAL
OIL SEAL, REAR (20X27X5)

09283-20031-000   0928320031000

0928320031000

Unit Price

12
THRUST WASHER

08211-17341-000   0821117341000

0821117341000

Unit Price

13
COVER, DUST

61262-28C10-000  

61262-28C11-000
 6126228C10000

Unit Price

14
SHAFT, SWINGING ARM PIVOT
SHAFT, PIVOT

61211-13E00-000   6121113E00000

6121113E00000

Unit Price

15
WASHER

08322-0116A-000  

08322-01167-000
 083220116A000

Unit Price

16
09159-16007

09159-16007-000  

0915916007000
Not available
17
BUFFER, CHAIN TOUCH DEFENSE

61273-13E01-000   6127313E01000

6127313E01000

Unit Price

18
SCREW
SCREW

02142-0612A-000  

02142-0612B-000
 021420612A000

Unit Price

19
WASHER

09169-06057-000   0916906057000

0916906057000

Unit Price

20
PLATE, CHAIN GUIDE
PLATE, CHAIN GUIDE OUTER

61342-37F00-000   6134237F00000

6134237F00000

Unit Price

21
GUIDE, CHAIN

61341-35G00-000   6134135G00000

6134135G00000

Unit Price

22
BOLT
BOLT, REAR

01547-0612A-000   015470612A000

015470612A000

Unit Price

23
BOLT
BOLT

01547-0650A-000   015470650A000

015470650A000

Unit Price

24
NUT
NUT

08319-3106A-000   083193106A000

083193106A000

Unit Price

25
CASE, CHAIN
CASE, CHAIN

61310-27A01-000   6131027A01000

6131027A01000

Unit Price

26
SCREW
SCREW

02142-0612B-000   021420612B000

021420612B000

Unit Price

27
LOCK WASHER<br />WASHER
LOCK WASHER
WASHER

09169-06026-000   0916906026000

0916906026000

Unit Price

28
PROTECTOR, CHAIN FRONT

61312-13E50-000   6131213E50000

6131213E50000
Not available
29
SCREW 6X12 W/WASHER<br />SCREW
SCREW 6X12 W/WASHER
SCREW

09136-06004-000   0913606004000

0913606004000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
