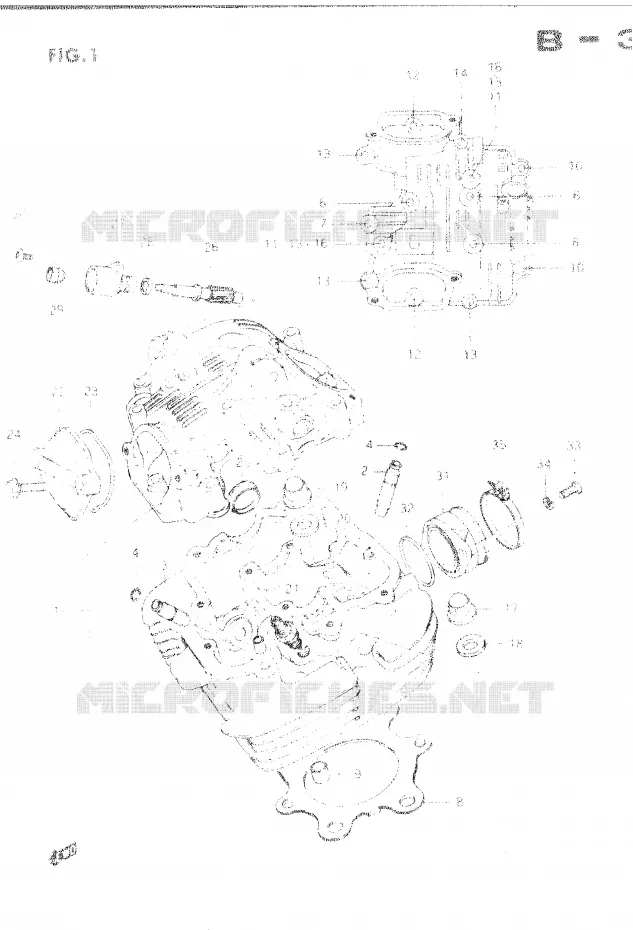

CYLINDER HEAD FOR SUZUKI DR 250 1982

CYLINDER * ENGINE GASKET SET : SEE FIG66 (H-11).

DISCONTINUED

11100-38220-000 1110038220000

Not available

GUIDE, INTAKE VALVE
GUIDE, IN VALVE

11115-38270-000 1111538270000

$53,97

Unit Price

GUIDE, VALVE
GUIDE, EX VALVE

11115-05270-000 1111505270000

$34,97

Unit Price

RING, VALVE GUIDE

09381-10004-000 0938110004000

$2,97

Unit Price

PIN(8X11)
PIN

09206-08001-000 0920608001000

$2,97

Unit Price

BOLT

01517-06605-000

01550-06603-000

$4,97

Unit Price

BOLT

01517-06305-000

01550-06303-000

$3,97

Unit Price

GASKET, CYLINDER HEAD

11141-38200-000

11141-38201-000

$40,97

Unit Price

09206-13001-000

04211-13189-000

$3,97

Unit Price

DISCONTINUED

09103-06053-000 0910306053000

Not available

DISCONTINUED

01421-06305-000 0142106305000

Not available

BOLT

01517-06305-000

01550-06303-000

$3,97

Unit Price

BOLT

01517-06455-000

01550-06453-000

$3,97

Unit Price

BOLT

01517-06605-000

01550-06603-000

$4,97

Unit Price

NUT

08316-16065-000 0831616065000

Not available

GASKET

09168-06015-000

Not available

CYLINDER HEAD NUT

09159-10033-000

09159-10026-000

$9,97

Unit Price

WASHER

09160-10060-000

09160-10039-000

$3,97

Unit Price

CYLINDER HEAD NUT
NUT

09159-10026-000 0915910026000

$9,97

Unit Price

GASKET

09168-10017-000 0916810017000

$4,97

Unit Price

DR8EA, NGK

09482-00144-000

09482-00399-000

$6,45

Unit Price

DR8EA, NGK

09482-00223-000

09482-00149-000

$6,45

Unit Price

SPARK PLUG (ND, X24ES-U)

09482-00145-000 0948200145000

Not available

DISCONTINUED

11175-38210-000 1117538210000

Not available

O-RING, CAP
O RING

09280-55003-000 0928055003000

$9,97

Unit Price

BOLT

01317-06255-000 0131706255000

Not available

PLUG, CAM SHAFT
PLUG, HEAD

09241-30004-000 0924130004000

$11,97

Unit Price

DISCONTINUED

26431-37400-000 2643137400000

Not available

SLEEVE, TACHOMETER DRIVE GEAR
SLEEVE

26441-49000-000 2644149000000

$30,97

Unit Price

BAND, DRIVEN GEAR SEAL
SEAL BAND

26451-45000-000 2645145000000

$7,97

Unit Price

TACHO DRVN OIL SEAL
OIL SEAL

09289-05002-000 0928905002000

$16,97

Unit Price

LOCK PLATE SCREW
SCREW

09128-05101-000 0912805101000

$1,97

Unit Price

PIPE, INTAKE

13110-38200-000 1311038200000

$53,97

Unit Price

O RING

09280-40003-000

09280-40020-000

$7,97

Unit Price

.SCREW

02112-06168-000 0211206168000

Not available

LOCK WASHER

08321-21068-000 0832121068000

Not available

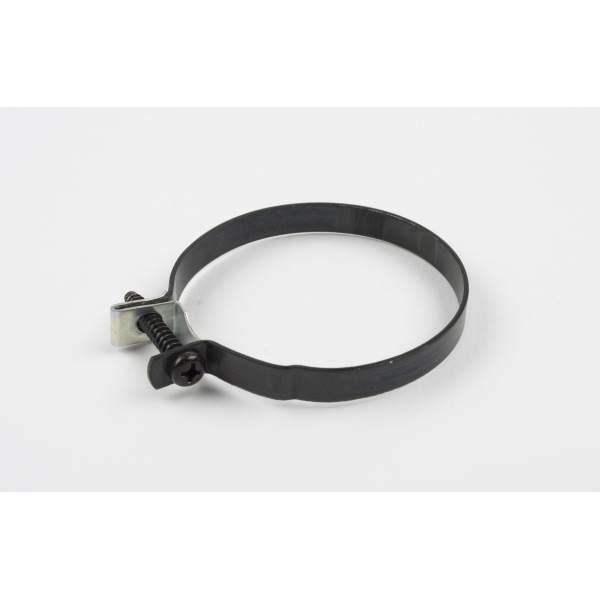

INLET HOSE CLAMP
CLAMP

09402-52306-000 0940252306000

$11,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Suzuki of DR. Let us know if you have any questions.
