SHOCK ABSORBER LINKAGE

REAR WHEEL FOR SUZUKI DR 250 1982

OPTIONS

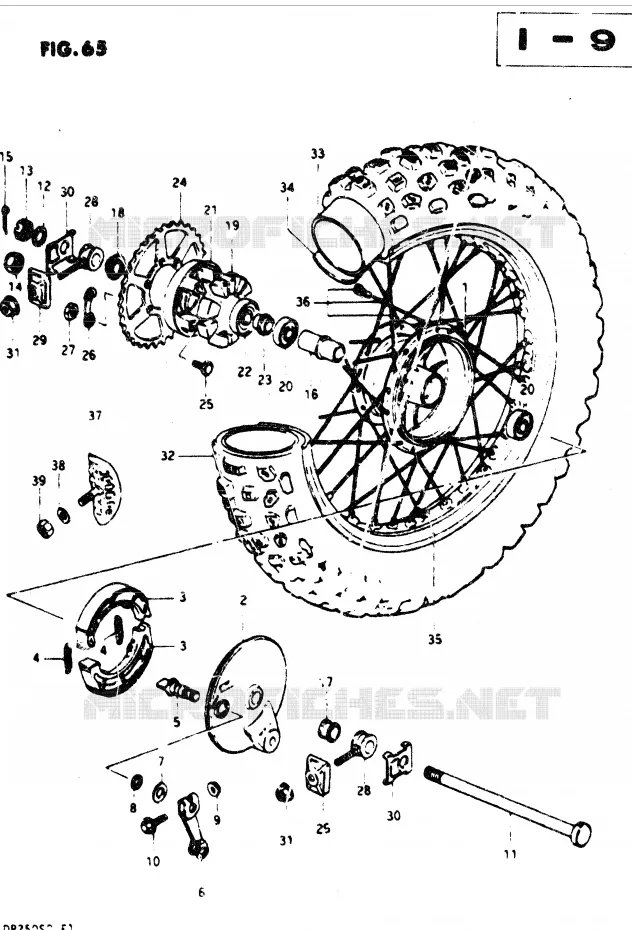

REAR WHEEL Suzuki MOTO 250 DR 1982 DR250SZ(E1)
1
DRUM, REAR HUB

64110-38200-000   6411038200000

6411038200000
Not available
2
DISCONTINUED

64210-38200-000   6421038200000

6421038200000
Not available
3
SHOE, BRAKE

54410-07002-000   5441007002000

5441007002000
Not available
4
SPRING
SPRING

09443-07001-000   0944307001000

0944307001000

Unit Price

5
DISCONTINUED

54441-29303-000   5444129303000

5444129303000
Not available
6
DISCONTINUED

64451-29900-000   6445129900000

6445129900000
Not available
7
WASHER

09160-14001-000  

09160-14055-000
 0916014001000

Unit Price

8
O RING, 02.5, ID:13.8

09280-14003-000  

09280-14011-000
 0928014003000

Unit Price

9
NUT, CENTER

08316-16068-000   0831616068000

0831616068000
Not available
10
BOLT

01517-06358-000  

01550-06357-000
 0151706358000

Unit Price

11
DISCONTINUED

64711-38200-000   6471138200000

6471138200000
Not available
12
DISCONTINUED

08322-21168-000   0832221168000

0832221168000
Not available
13
DISCONTINUE<br />NUT
DISCONTINUE
NUT

09141-16001-000   0914116001000

0914116001000
Not available
14
NUT

09159-16002-000   0915916002000

0915916002000

Unit Price

15
PIN

04111-40308-000  

04111-4030A-000
 0411140308000

Unit Price

16
SPACER, HUB BEARING

64731-40600-000   6473140600000

6473140600000
Not available
17
SPACER, AXLE RH

64741-38200-000   6474138200000

6474138200000
Not available
18
DISCONTINUED

64750-38200-000   6475038200000

6475038200000
Not available
19
DISCONTINUED

64651-38200-000   6465138200000

6465138200000
Not available
19
DISCONTINUE
SHOCK ABSORBER, HUB

64651-38201-000   6465138201000

6465138201000
Not available
20
B. BEARING 17X40X12<br />BEARING, HUB BRUM
B. BEARING 17X40X12
BEARING, HUB BRUM

08143-62037-000   0814362037000

0814362037000

Unit Price

21
DISCONTINUED

64611-38200-000   6461138200000

6461138200000
Not available
22
BALL BEARING
BALL BEARING

08123-62047-000  

08123-6204B-000
 0812362047000

Unit Price

23
HOLDER, SPROCKET

64733-38200-000   6473338200000

6473338200000
Not available
24
DISCONTINUE
SPROCKET, REAR (NT:42)

64511-38200-000   6451138200000

6451138200000
Not available
25
DISCONTINUE

09119-08036-000  

0911908036000
Not available
26
WASHER

09169-00011-000   0916900011000

0916900011000
Not available
27
NUT

08310-12088-000  

08310-00087-000
 0831012088000

Unit Price

28
DISCONTINUE
ADJRSTER, CHAIN

61410-38200-000   6141038200000

6141038200000
Not available
29
PLATE, CHAIN ADJUSTER
PLATE

61421-38200-000   6142138200000

6142138200000

Unit Price

30
DISCONTINUE
GUIDE WASHER

64712-38200-000   6471238200000

6471238200000
Not available
31
NUT

08319-31088-000   0831931088000

0831931088000
Not available
32
TIRE, REAR (4.00X18)

65100-32470-000   6510032470000

6510032470000
Not available
32
TIRE, REAR (4.00X18)

65100-32490-000   6510032490000

6510032490000
Not available
32
65100-38230
DISCONTINUED

65100-38210-000   6510038210000

6510038210000
Not available
32
DISCONTINUE
TIRE, REAR (4.60X17)

65100-38230-000   6510038230000

6510038230000
Not available
33
DISCONTINUED

65200-38220-000   6520038220000

6520038220000
Not available
33
DISCONTINUE

65200-44300-000  

6520044300000
Not available
33
TUBE, INNER REAR BS

65200-45030-000   6520045030000

6520045030000
Not available
33
TUBE, INNER

65200-49015-000   6520049015000

6520049015000
Not available
34
PROTECTOR, INNER TUBE

65261-15010-000  

55261-11010-000
 6526115010000

Unit Price

34
PROTECTOR, INNER TUBE

55261-20330-000   5526120330000

5526120330000
Not available
34
PROTECTOR

65261-15030-000   6526115030000

6526115030000
Not available
34
DISCONTINUED

65261-44300-000   6526144300000

6526144300000
Not available
35
RIM, WHEEL (215X18AL)

65311-38210-000   6531138210000

6531138210000
Not available
35
RIM, WHEEL (215X17AL) (GOLD)

65311-38240-000   6531138240000

6531138240000
Not available
36
DISCONTINUE
SPOKE ASSY, REAR

65320-38200-000   6532038200000

6532038200000
Not available
36
SPOKE ASSY, REAR

65320-38210-000   6532038210000

6532038210000
Not available
37
STOPPER, BEAD(2.15)

65270-14200-000  

65270-28E00-000
 6527014200000

Unit Price

37
STOPPER, BEAD(1.85)

65270-46910-000  

65270-43D00-000
 6527046910000

Unit Price

38
WASHER

08322-11088-000  

08322-01087-000
 0832211088000

Unit Price

39
NUT

08310-12088-000  

08310-00087-000
 0831012088000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR WHEEL of your Suzuki of DR. Let us know if you have any questions.
