Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

STEERING COLUMN

FRONT WHEEL FOR SUZUKI DR 250 1982

HANDLEBAR

DISCONTINUED

54110-38200-000 5411038200000

Not available

HUB, WHEEL

54110-38201-000 5411038201000

Not available

DISCONTINUE
HUB FLANGE, FRONT RH

54112-38200-000 5411238200000

Not available

BOLT, REAR

01517-06168-000 0151706168000

Not available

RETAINER, HUB BEARING RH

54151-38200-000 5415138200000

Not available

PANEL, FR HUB

54210-38200-000 5421038200000

Not available

DISCONTINUE

64410-40301-000

Not available

SPRING

09443-07001-000 0944307001000

$3,97

Unit Price

CAM, BRAKE

54441-38200-000 5444138200000

Not available

SPRING, CAM LEVER

09448-32007-000 0944832007000

Not available

O RING, 02.5, ID:13.8

09280-14003-000

09280-14011-000

$8,97

Unit Price

WASHER

09160-14001-000

09160-14055-000

$4,97

Unit Price

LEVER, FR BRAKE CAM

54451-32400-000

54451-32401-000

$108,97

Unit Price

BOLT (6*25)

01517-06258-000 0151706258000

Not available

GEAR, SPEEDOMETER
GEAR, SPEEDOMETER (NT:27)

54611-28402-000 5461128402000

$40,97

Unit Price

PINION, SPEEDOMETER
PINION, SPEEDOMETER (NT:9)

54621-28401-000 5462128401000

$24,97

Unit Price

BUSH, METER GEAR OUTER
BUSH

54632-01001-000 5463201001000

$20,97

Unit Price

WASHER, 5.1X9X0.4

09160-05001-000

09160-05001-A05

$2,97

Unit Price

DRIVER, SPEEDOMETER GEAR
DRIVER

54661-29300-000 5466129300000

$7,97

Unit Price

WASHER(18.5X24X1)
THRUST WASHER (18.5X24X1)

09160-18002-000 0916018002000

$3,97

Unit Price

CIRCLIP

08331-11189-000 0833111189000

Not available

DISCONTINUE
SCREW

09134-03101-000

Not available

SEAL, OIL(43X58X7)

09285-43001-000

09283-43004-000

$19,97

Unit Price

DISCONTINUE
AXLE, FRONT

54711-38200-000 5471138200000

Not available

SPACER(12.5X19X52)

09180-12041-000

09180-12144-000

$16,97

Unit Price

SPACER, FR AXLE, R
SPACER (12.2X19X18.5)

54741-41100-000 5474141100000

$19,97

Unit Price

WASHER

08322-11128-000

08322-01127-000

$2,97

Unit Price

NUT

08314-41128-000

08314-4012A-000

$4,97

Unit Price

NUT

08319-21128-000

08319-2112A-000

$6,97

Unit Price

04111-30308-000

04111-3030A-000

$2,97

Unit Price

BEARING

08143-62017-000

08143-6201B-000

$19,97

Unit Price

BEARING

08123-62017-000 0812362017000

Not available

DISCONTINUED

55100-38210-000 5510038210000

Not available

55110-08D00
TIRE, FRONT (3.00-21)

55100-38230-000 5510038230000

Not available

TUBE

55200-16510-000

55200-16511-000

$67,97

Unit Price

PROTECTOR, WHEEL INNER

55261-16510-000

55261-14540-000

$7,97

Unit Price

55311-05210
DISCONTINUED

55311-38200-000 5531138200000

Not available

SPOKE SET

55320-38200-000 5532038200000

Not available

BALANCER

55411-30000-000 5541130000000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

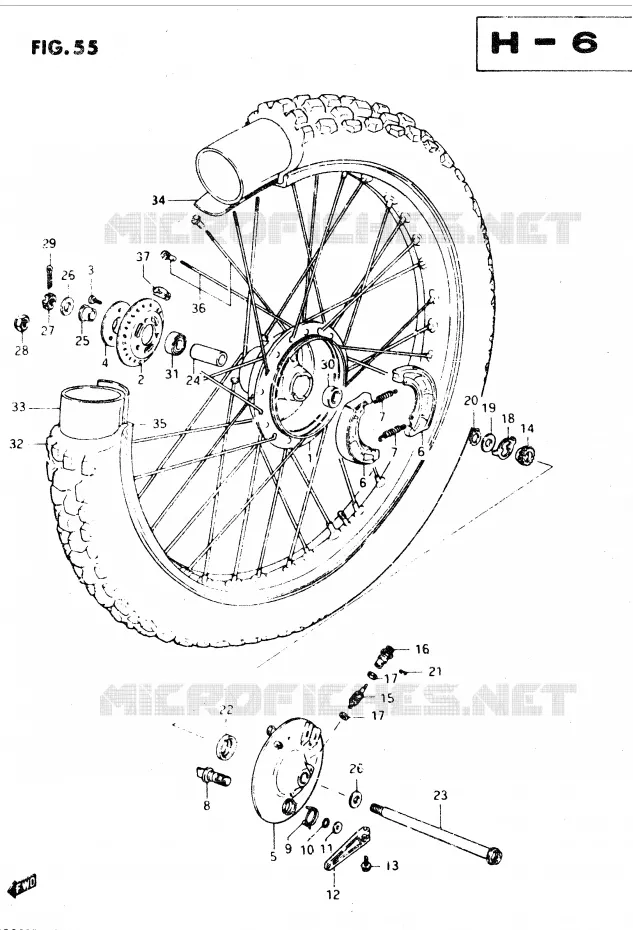

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT WHEEL of your Suzuki of DR. Let us know if you have any questions.

Select your Suzuki 1982 model
