Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRONT FENDER

REAR FENDER FOR SUZUKI DR 250 1987

IGNITION REFER TO FIG.18 (D-3) FOR E2,E4,E15,E18,E21,E22,E25,E39

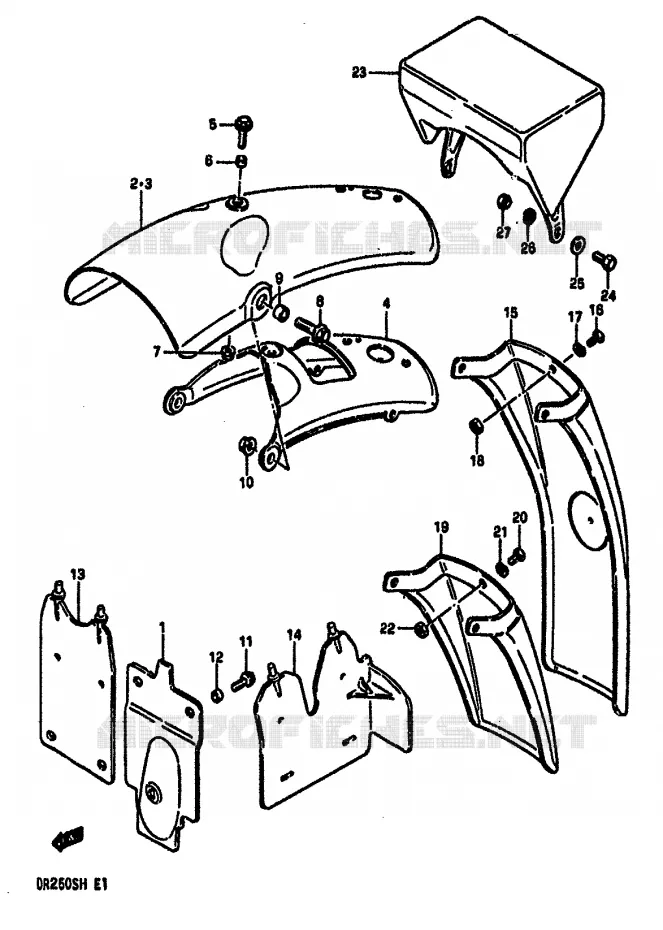

REAR FENDER Suzuki MOTO 250 DR 1987 DR250SH(E/F/G/H)
1
REAR FENDER, FRONT

63112-38200-000   6311238200000

6311238200000
Not available
2
FENDER, REAR (BLACK)

63111-48701-019   6311148701019

6311148701019
Not available
2
FENDER, REAR (BLUE)

63111-48701-05K   631114870105K

631114870105K
Not available
2
FENDER, REAR (WHITE)

63111-48701-10V   631114870110V

631114870110V
Not available
2
DISCONTINUE

63111-48701-14C  

631114870114C
Not available
2
FENDER, REAR (WHITE)

63111-48701-14L   631114870114L

631114870114L
Not available
2
FENDER, REAR (YELLOW)

63111-48701-163   6311148701163

6311148701163
Not available
2
FENDER, REAR (BLUE)

63111-48701-19F   631114870119F

631114870119F
Not available
2
FENDER, REAR (BLACK)

63111-48701-21C   631114870121C

631114870121C
Not available
2
FENDER, REAR (BLUE)

63111-48701-34S   631114870134S

631114870134S
Not available
3
FENDER, REAR (WHITE)

63111-48711-10V   631114871110V

631114871110V
Not available
3
FENDER, REAR (RED)

63111-48711-14C   631114871114C

631114871114C
Not available
3
FENDER, REAR (WHITE)

63111-48711-14L   631114871114L

631114871114L
Not available
3
FENDER, REAR (YELLOW)

63111-48711-163   6311148711163

6311148711163
Not available
3
FENDER, REAR (BLUE)

63111-48711-19F   631114871119F

631114871119F
Not available
3
FENDER, REAR (BLACK)

63111-48711-21C   631114871121C

631114871121C
Not available
3
FENDER, REAR (BLUE)

63111-48711-34S   631114871134S

631114871134S
Not available
4
REINFORCEMENT

63120-38201-000   6312038201000

6312038201000

Unit Price

5
BOLT, EXTENSION

01517-06205-000   0151706205000

0151706205000
Not available
6
SPACER, 6.5X9X5

09180-06073-000  

09180-06306-000
 0918006073000

Unit Price

7
NUT 6MM<br />NUT
NUT 6MM
NUT

08319-31067-000   0831931067000

0831931067000

Unit Price

8
BOLT

01517-08254-000  

01550-0825A-000
 0151708254000

Unit Price

9
SPACER

09180-08100-000   0918008100000

0918008100000
Not available
10
NUT
NUT

08319-31087-000   0831931087000

0831931087000
Not available
11
DISCONTINUED

02152-06128-000   0215206128000

0215206128000
Not available
12
SPACER, 6.5X9X5

09180-06073-000  

09180-06306-000
 0918006073000

Unit Price

13
MUD FLAP, FRONT

63411-38200-000   6341138200000

6341138200000
Not available
14
MUD FLAP, FRONT LH

63416-38201-000   6341638201000

6341638201000
Not available
15
EXTENSION, REAR FENDER

63331-38210-000   6333138210000

6333138210000
Not available
16
6X16CROSS SCREW<br />SCREW
6X16CROSS SCREW
SCREW

02142-06167-000   0214206167000

0214206167000

Unit Price

17
WASHER, LOCK

08321-31067-000  

08321-01067-000
 0832131067000

Unit Price

18
NUT FIG.42 (H-4) : E16, E18, E22,

08310-11068-000   0831011068000

0831011068000
Not available
19
EXTENSION, REAR FENDER

63331-38200-000   6333138200000

6333138200000
Not available
20
6X16CROSS SCREW<br />SCREW
6X16CROSS SCREW
SCREW

02142-06167-000   0214206167000

0214206167000

Unit Price

21
WASHER, LOCK

08321-31067-000  

08321-01067-000
 0832131067000

Unit Price

22
NUT FIG.42 (H-4) : E16, E18, E22,

08310-11068-000   0831011068000

0831011068000
Not available
23
DISCONTINUED

94900-38200-4UZ   94900382004UZ

94900382004UZ
Not available
23
DISCONTINUED

94900-38200-54G   949003820054G

949003820054G
Not available
23
BAG ASSY (BLUE)

94900-38210-4UZ   94900382104UZ

94900382104UZ
Not available
23
BAG ASSY (BLUE/WHITE)

94900-38210-54G   949003821054G

949003821054G
Not available
23
DISCONTINUED

94900-38220-54G   949003822054G

949003822054G
Not available
23
BAG ASSY (BLUE/YELLOW)

94900-38230-54G   949003823054G

949003823054G
Not available
24
BOLT

01107-06125-000  

01500-0612A-000
 0110706125000

Unit Price

25
WASHER

08322-21067-000  

08322-0106A-000
 0832221067000

Unit Price

26
WASHER, LOCK

08321-21067-000  

08321-01067-000
 0832121067000

Unit Price

27
NUT FIG.42 (H-4) : E16, E18, E22,

08310-11068-000   0831011068000

0831011068000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR FENDER of your Suzuki of DR. Let us know if you have any questions.

Genuine parts for Suzuki 250 DR 1987

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 250 DR 1987

Select your Suzuki 1987 model

250 DR 1987 DR250SH(E/F/G/H)

Suzuki DR

Displacement: 250 cc
Year: 1987
Model code DR250SH(E / F / G / H)
