MUFFLER

OIL PUMP FOR SUZUKI DR 250 1987

CLUTCH

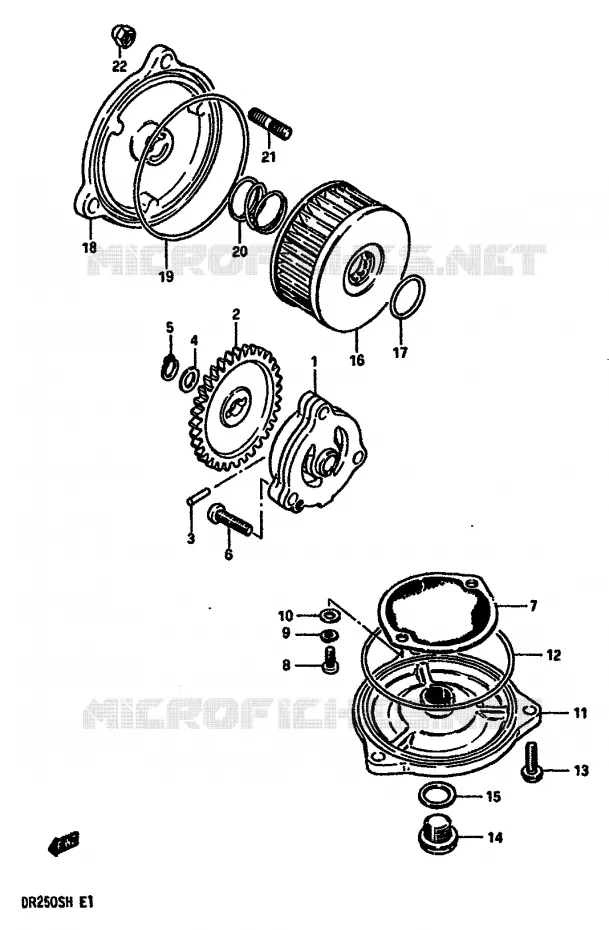

OIL PUMP Suzuki MOTO 250 DR 1987 DR250SH(E/F/G/H)
1
PUMP ASSY, ENGINE OIL

16400-38200-000   1640038200000

1640038200000

Unit Price

2
GEAR, OIL PUMP DRIVEN(NT:33)
GEAR, DRIVEN (NT:33)

16331-38200-000   1633138200000

1633138200000

Unit Price

3
GR SHIFT CAM DR PIN<br />PIN
GR SHIFT CAM DR PIN
PIN

09261-04009-000   0926104009000

0926104009000

Unit Price

4
SHIM
WASHER

08221-10185-000   0822110185000

0822110185000

Unit Price

5
CIRCLIP
CIRCLIP

08331-31109-000   0833131109000

0833131109000

Unit Price

6
SCREW

02112-06256-000  

02112-0625A-000
 0211206256000

Unit Price

7
STRAINER,ENGINE OIL
STRAINER, ENGINE OIL

16520-37400-000   1652037400000

1652037400000

Unit Price

8
SCREW

02112-05126-000  

02112-0512A-000
 0211205126000

Unit Price

9
WASHER, LOCK

08321-21056-000  

08321-01053-000
 0832121056000

Unit Price

10
WASHER

08322-21056-000  

08322-0105B-000
 0832221056000

Unit Price

11
CAP, OIL STRAINER

16523-38200-000   1652338200000

1652338200000

Unit Price

12
O RING OIL STR CAP
O RING

09280-82001-000   0928082001000

0928082001000

Unit Price

13
BOLT

01547-06208-000   0154706208000

0154706208000
Not available
14
PLUG

09247-14001-000  

09247-14002-000
 0924714001000

Unit Price

15
SPARK PLUG GASKET<br />GASKET
SPARK PLUG GASKET
GASKET

09168-14004-000   0916814004000

0916814004000

Unit Price

16
FILTER ASSY, ENGINE OIL
FILTER, ENGINE OIL

16510-38240-000   1651038240000

1651038240000
Not available
17
O RING(D:2.4, ID:15.8)
O RING

09280-16005-000   0928016005000

0928016005000

Unit Price

18
CAP, OIL FILTER

16512-38200-000  

16512-14D00-000
 1651238200000

Unit Price

18
DISCONTINUED

16512-38230-000   1651238230000

1651238230000
Not available
19
O RING OIL FLT CAP
O RING

09280-72001-000   0928072001000

0928072001000
Not available
20
OIL STRAINER SPRING
SPRING

09440-21004-000   0944021004000

0944021004000

Unit Price

21
STUD 6X12

01421-06128-000  

09108-06128-000
 0142106128000

Unit Price

22
NUT

08313-11065-000  

08313-10063-000
 0831311065000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Suzuki of DR. Let us know if you have any questions.
