Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FOOTREST

FUEL TANK FOR SUZUKI DR 250 1995

SEAT

Item numbers

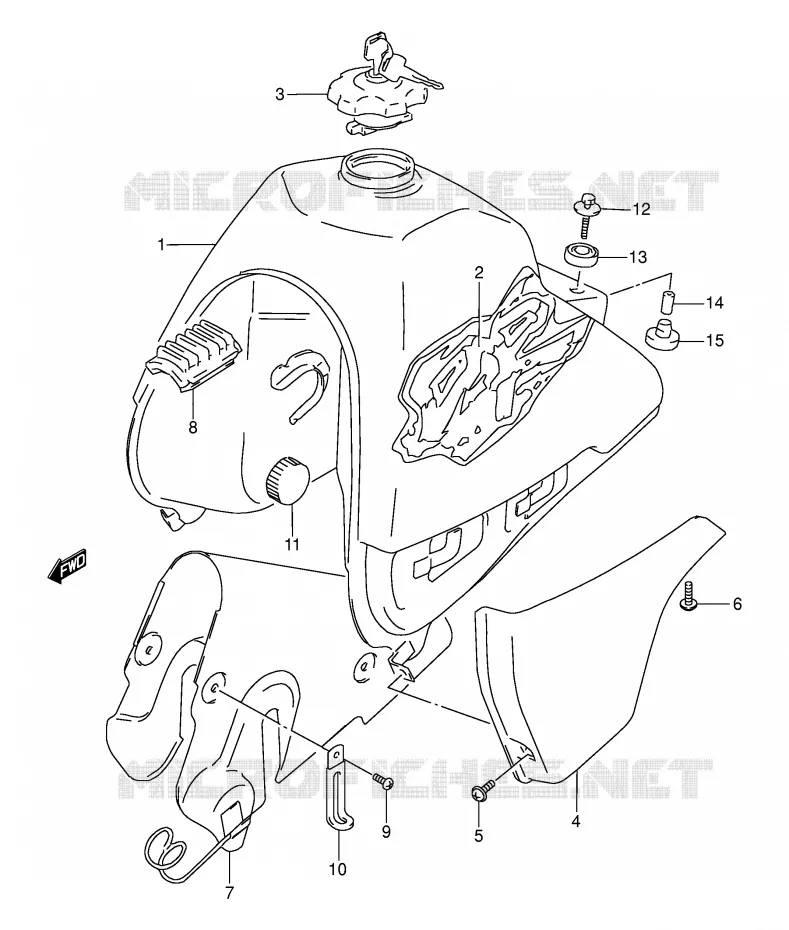

FUEL TANK Suzuki MOTO 250 DR 1995 DR250SES(E24)
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
1
TANK ASSY, FUEL (WHITE)

44100-14EM0-28X   4410014EM028X

4410014EM028X
Not available
2
EMBLEM SET, FUEL TANK

68120-14E00-D1R   6812014E00D1R

6812014E00D1R
Not available
3
DISCONTINUE
CAP SET, FUEL TANK

44200-03811-000   4420003811000

4420003811000
Not available
4
DISCONTINUE
COVER, FUEL TANK RH (WHITE)

44171-15D00-30H   4417115D0030H

4417115D0030H
Not available
4
DISCONTINUE
COVER, FUEL TANK LH (WHITE)

44181-15D00-30H   4418115D0030H

4418115D0030H
Not available
5
SCREW<br />SCREW, FRONT
SCREW
SCREW, FRONT

02142-06107-000   0214206107000

0214206107000

Unit Price

6
SCREW(6X12)
SCREW, REAR

09136-06002-000   0913606002000

0913606002000

Unit Price

7
HEAT SHIELD, FUEL TANK

49131-14D20-000   4913114D20000

4913114D20000
Not available
8
DISCONTINUE
CUSHION, FRONT UPPER

44541-15D01-000   4454115D01000

4454115D01000
Not available
9
BOLT

01560-05103-000   0156005103000

0156005103000
Not available
10
CLAMP(L:65)

09404-06206-000  

09404-06432-000
 0940406206000

Unit Price

11
CUSHION
CUSHION, FRONT

09329-10016-000   0932910016000

0932910016000

Unit Price

12
BOLT<br />BOLT, REAR
BOLT
BOLT, REAR

09116-06172-000   0911606172000

0911606172000

Unit Price

13
CUSHION<br />CUSHION, UPPER
CUSHION
CUSHION, UPPER

09320-14013-000   0932014013000

0932014013000

Unit Price

14
SPACER, 6.5X9X18

09180-06072-000  

09180-06271-000
 0918006072000

Unit Price

15
CUSHION(9X24X18)
CUSHION(9X24X18)

09320-10020-000  

09320-10071-000
 0932010020000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL TANK of your Suzuki of DR. Let us know if you have any questions.

Genuine parts for Suzuki 250 DR 1995

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 250 DR 1995

Select your Suzuki 1995 model

250 DR 1995 DR250SES(E24)

Suzuki DR

Displacement: 250 cc
Year: 1995
Model code DR250SES(E24)
