SPEEDOMETER

HEADLIGHT FOR SUZUKI DR 250 1995

INDICATORS

Item numbers

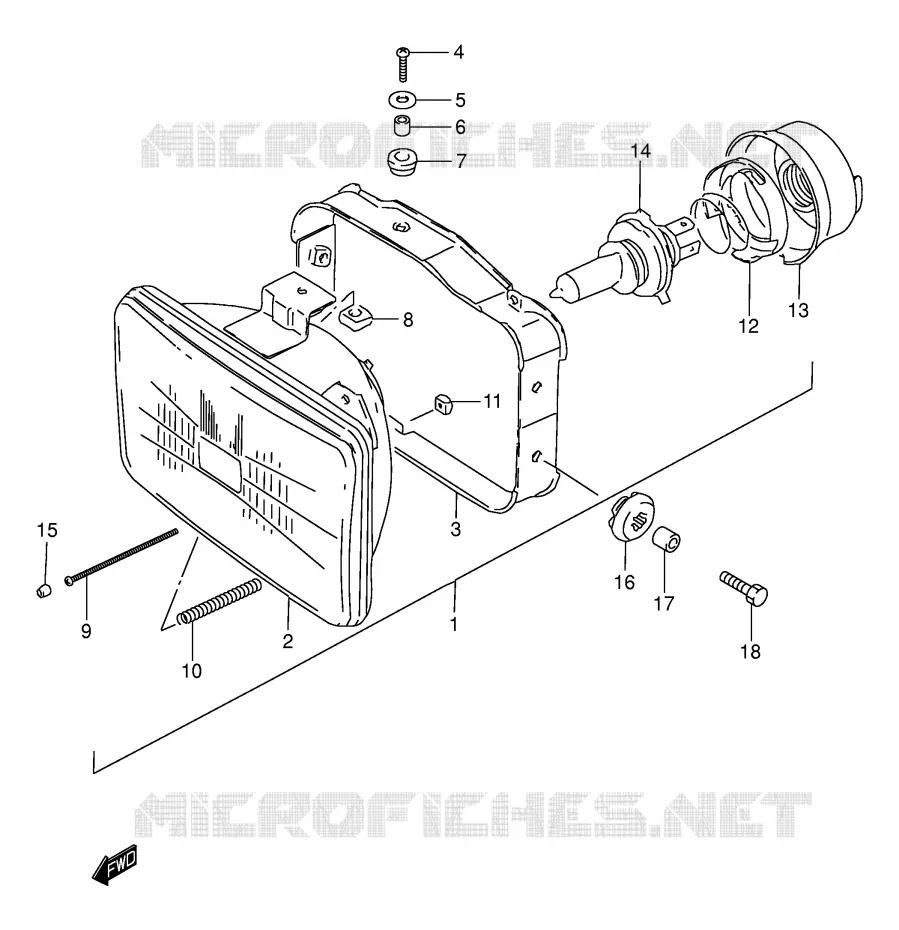

HEADLIGHT Suzuki MOTO 250 DR 1995 DR250SES(E24)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
35100-14A32-999
HEADLAMP ASSY

35100-14A31-999   3510014A31999

3510014A31999
Not available
2
LAMP UNIT

35121-14A31-000  

35121-14A32-000
 3512114A31000

Unit Price

3
HOUSING
RING, MOUNTING

35141-14A00-000   3514114A00000

3514114A00000

Unit Price

4
SCREW

02112-05207-000  

02112-75207-000
 0211205207000

Unit Price

5
WASHER(5.5X18X1)

09160-05003-000  

09160-05045-000
 0916005003000

Unit Price

6
DISCONTINUE
SPACER

35133-14A00-000   3513314A00000

3513314A00000
Not available
7
CUSHION

35139-45230-000   3513945230000

3513945230000

Unit Price

8
NUT
NUT

35135-45900-000   3513545900000

3513545900000

Unit Price

9
SCREW
SCREW

35151-45900-000   3515145900000

3515145900000

Unit Price

10
* 35154-31C00
SPRING

35154-49200-000   3515449200000

3515449200000

Unit Price

11
NUT
NUT

35135-45600-000   3513545600000

3513545600000

Unit Price

12
DISCONTINUE
HOLDER, BULB

35136-01A00-000   3513601A00000

3513601A00000
Not available
13
COVER, SOCKET

35173-01440-000   3517301440000

3517301440000

Unit Price

14
BULB(12V, 5W)
BULB (12V, 60/55W, H4)

09471-12060-000  

0947112060000
Not available
15
CAP,SCREW<br />CAP, ADJUSTER SCREW
CAP, SCREW
CAP, ADJUSTER SCREW

35158-43400-000   3515843400000

3515843400000

Unit Price

16
CUSHION

09320-09018-000   0932009018000

0932009018000

Unit Price

17
SPACER

09180-06138-000   0918006138000

0918006138000
Not available
18
BOLT
BOLT

09116-06167-000   0911606167000

0911606167000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HEADLIGHT of your Suzuki of DR. Let us know if you have any questions.

Genuine parts for Suzuki 250 DR 1995
